Model No.: SH037

System

Main Processor

Multi-core High- performance processor

Sensor

1/2.7”, 4Megapixel progressive scan CMOS

Image Compression

H.264

Lens

Lens Parameter

Focal length: 4mm, 4MP

Angle of View

Horizontal: 80°, Vertical: 58°, Diagonal:110° ,Starlight Lens

Video

Resolution

1440P(2560*1440), VGA(480*360)

Image Frame Rate

15fps - 25fps

Automatic Exposure

Adjust the image automatically to view clearly

Wide Dynamic

Starlight level, digital wide dynamic

Infrared Mode

Automatic

Tracking

Don't Support Humanoid tracking

Night Visibility

Smart Mode : black&white night vision, it automatically turns on

the spotlights upon detection of motion, be in full-color, Startlight night vision

Color Mode : turn on the spotlights to offer outdoor lighting and even adjust

their brightness as needed

IR Mode : trun off the spotlights,switch the camera to the black&white night vision

via SriHome App

Min.Illuminatioin

0.01 Lux / F1.2 (With IR Illuminator)

Filter Switch(IR-Cut)

Built-in IR Cut, no color deviation indoor or outdoor

Zoom

App supports 3x digital zoom

Audio

Protocol

G711U

Audio

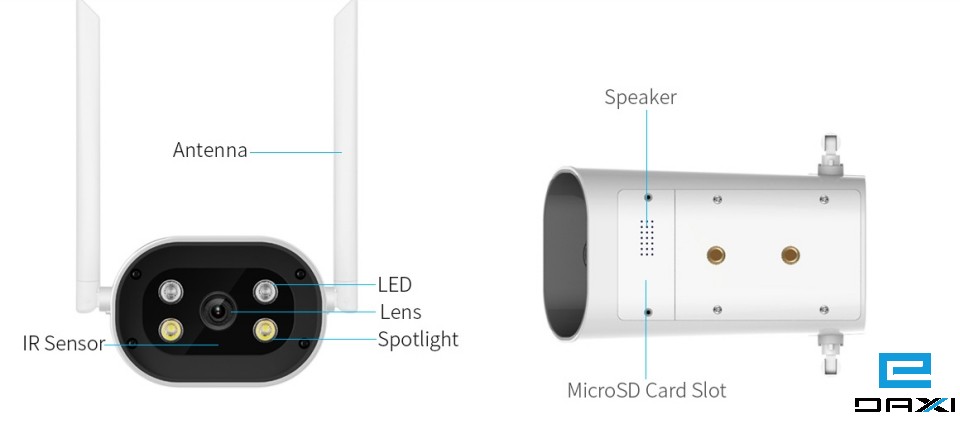

Built-in Mic & Speaker, supports two-way audio

Alarm

Alarm

Motion detection alarm , Humanoid alarm

(need to turn on motion detection at the same time)

Alarm Notification

Push alarm notifications to your smartphone

Privacy

Privacy Protection

System defaults the first user as administrator, other users accessing

the camera need administrator's authorization, otherwise they can't view it

Privacy Block

Set up to 4 privacy areas

Network

Remote Access

P2P

WiFi Setup Through

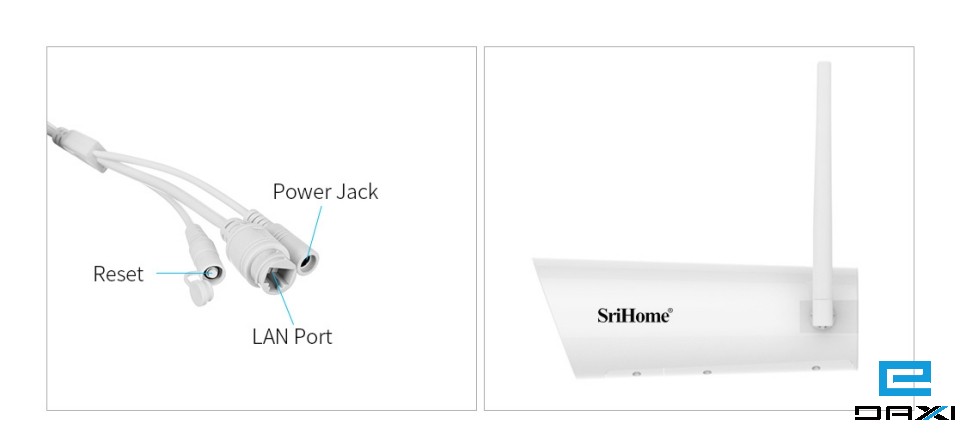

1.RJ45 Cable

2. QR Code Connect

3. AP Hotspot

Ethernet

RJ45 100M network interface

Wireless

2.4G (11bng) mixed & 5G 11a/n/ac mixed

AP Hotspot

With wireless access point, camera can be connected to phone directly without router

Interoperability

Onvif

Software

SriHome App

iOS &Android

Windows PC CMS

CMS, Onvif,Blue Iris,ispy etc.

Record

Record Mode

Alarm recording, 7/24 recording

Record Standard

HD mode(1440P/1080P/720P) / SD mode(360P)

Storage

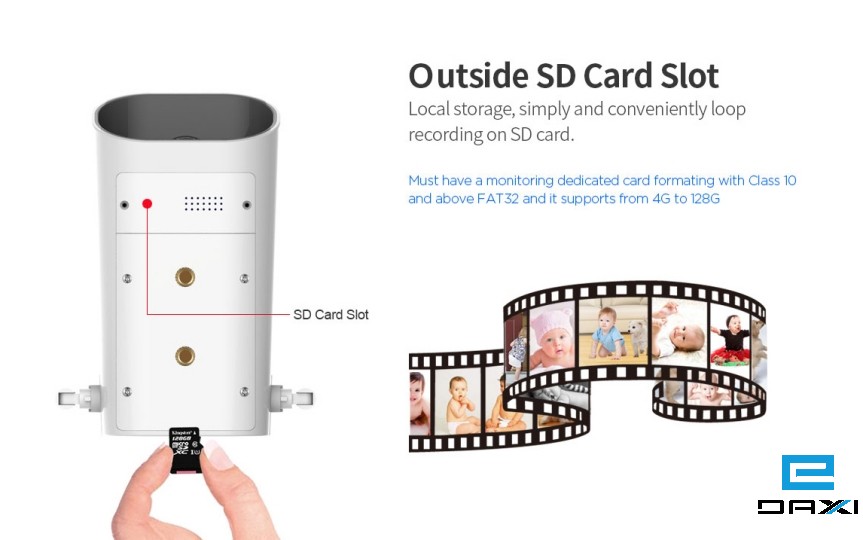

MicroSD card (Max 128GB), Local and PC storage

Playback

SD card record playback , PC record playback

Others

Product Type

Gun type, Indoor /outdoor use

Ingress Protection

IP66

Power Supply

DC 12V

Working Temperature

-10 to +50℃

Working Humidity

10% to 90% RH

Weight

N.W.:280g, G.W.: 500g (Note:Actual Weight Final)

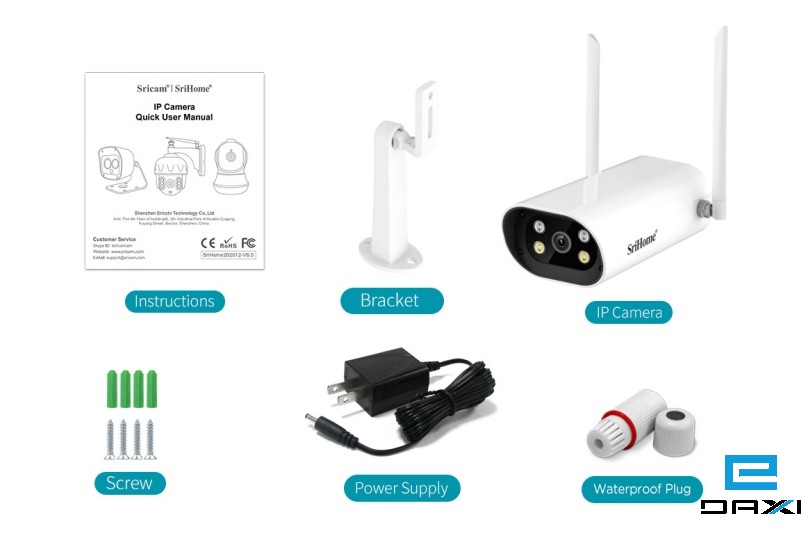

Accessories

Adaptor, User Manual, Screws

Size

Item size:90 * 80 *110 mm (LxWxH)

Packaging size: 115 *117 *171mm(LxWxH)
