More detailed specification

Alarm In Input/Output connectors - 1

Alarm Out Input/Output connectors - 1

Camera design - Cube

Description - With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry series network camera is applicable to small and medium-sized scenes, such as homes/residences, small-sized retail stores, and other small and medium-sized enterprises. 1/3” 4Megapixel progressive CMOS, 2560 × 1440 @ 25 fps Minimum illumination: Manual 1/3 s: 0.0141 Lux @F2.0 (Color, 80 IRE); 0.0116 Lux @F2.0 (W/B, 80 IRE); 0 Lux (IR on) True Day/Night with ICR Filter, BLC, HLC, DWDR, 3D DNR, ROI 2.8 mm fixed lens (97°) Up to 10 meters IR Illumination, built-in PIR sensor H.265; H.264; H.264H; H.264B, high compression rate, ultra-low bit rate ONVIF (Profile T/Profile S/Profile G); CGI; DMSS Micro SD: Max 256GB, built-in MIC and speaker (for voice call) Built-in Wi-Fi, built-in PIR sensor, 1/1 Alarm I/O Indoor cube design, -10°C~+45°C Power: DC12V only,

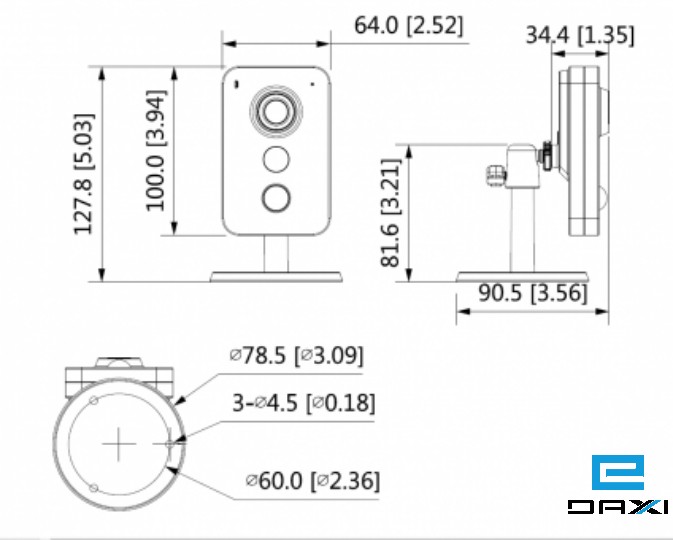

Dimensions - Φ78.5 mm × 90.5 mm × 127.8 mm

Electronic Shutter Speed - Auto/Manual 1/3 s–1/100,000 s

Focal Length - 2.8 mm

Full Description Line - Pixel Resolution 4 Mega Pixel|Focal Length 2.8 mm|Min. Illumination 0.0141 Lux|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power supply requirements DC12V|Operating temperature range –10°C to +45°C|Dimensions Φ78.5 mm × 90.5 mm × 127.8 mm

Min. Illumination - 0.0141 Lux

Operating temperature range - –10°C to +45°C

Pixel Resolution - 4 Mega Pixel

Power consumption - 3.3 Watts

Power supply requirements - DC12V

Shipping Box Depth Shipping/Package Box Dimensions - 17.5 cm

Shipping Box Height Shipping/Package Box Dimensions - 9.5 cm

Shipping box quantity - 1

Shipping Box Weight Shipping/Package Box Dimensions - 0.33 kg

Shipping Box Width Shipping/Package Box Dimensions - 9 cm

Supports card capacities up to - 256GB

Unit Brutto Volume - 0.001496 cubm

Unit Gross Weight - 0.33 kg

Unit Net Weight - 0.16 kg

Vendor Homepage - www.dahuasecurity.com/products/All-Products/Network-Cameras/Consumer-Series/4MP/IPC-K42
