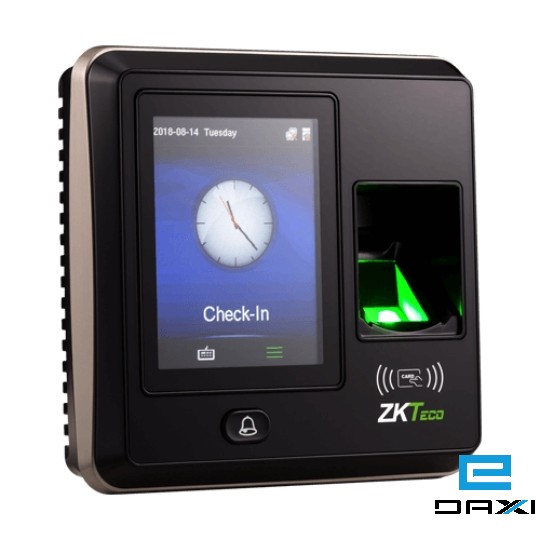

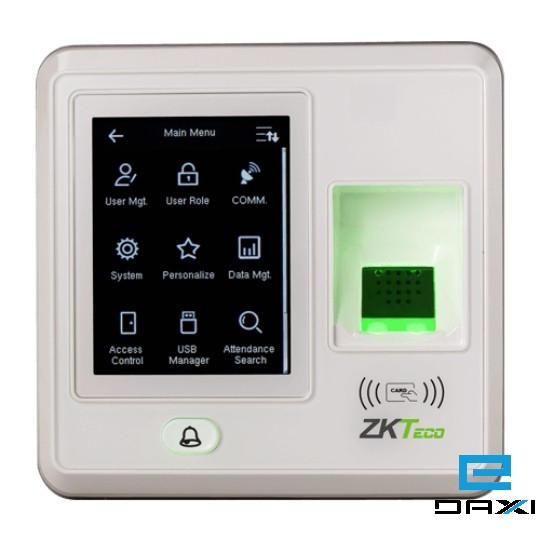

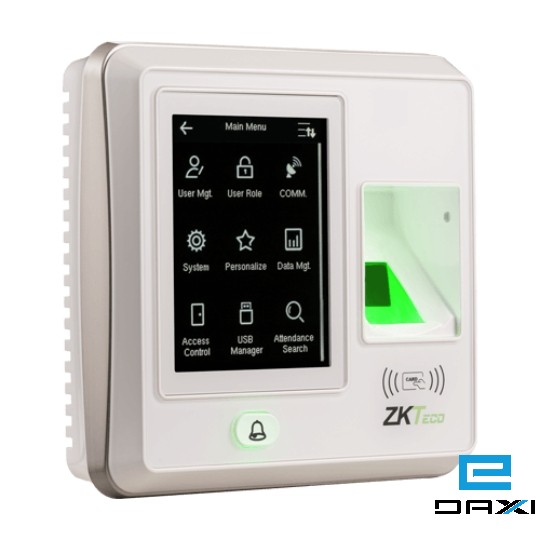

The SF300 is an IP based fingerprint terminal, which operate in both network mode and standalone mode. it can connect with ZKAccess3.5 software for access control and time attendance management. Wiegand output makes SF300 flexible to connect with ZKTeco or any 3rd party controllers as a slave reader, Additionally, wiegand input allows two units of SF300 to configure with each other and utilize Master & Slave solution, which requires user verification at both entrance and exit. Meanwhile, anti-passback function can be used to maximize the security.

Parameters

LCD: 2.8 inch resistive touch screen

Fingerprint Sensor: ZK Optical Sensor (500DPI)

Algorithm Version: ZKFinger V10.0

Communication: TCP/IP, USB Host

Fingerprint Capacity: 1,500

Recor Capacity: 80,000

Access Control Interface: Electric lock, Door sensor, Alarm, Exit button, Door Bell

Wiegand Signal: Wiegand input & output

Aux. Input: 1ea for linkage function

Power Supply: DC 12V / 3A

Operating Temperature: 0 ~ 45°C (32° ~ 113°F)

Operating Humidity: 20 ~ 80%

Dimension: 105 x 105 x 34mm (L*W*H)
