Product code

RBcAPGi-5acD2nD-XL

Architecture

ARM 32bit

CPU

IPQ-4018

CPU core count

4

CPU nominal frequency

716 MHz

Switch chip model

IPQ-4018

Dimensions

191 x 42 mm

RouterOS license

4

Operating System

RouterOS

Size of RAM

128 MB

Storage size

16 MB

Storage type

FLASH

MTBF

Approximately 100'000 hours at 25C

Tested ambient temperature

-40°C to 70°C

IPsec hardware acceleration

Yes

Suggested price

$99.00

Wireless 2.4 GHz Max data rate

300 Mbit/s

Wireless 2.4 GHz number of chains

2

Wireless 2.4 GHz standards

802.11b/g/n

Antenna gain dBi for 2.4 GHz

6

Wireless 2.4 GHz chip model

IPQ-4018

Wireless 2.4 GHz generation

Wi-Fi 4

Wireless 5 GHz Max data rate

867 Mbit/s

Wireless 5 GHz number of chains

2

Wireless 5 GHz standards

802.11a/n/ac

Antenna gain dBi for 5 GHz

5.5

Wireless 5 GHz chip model

IPQ-4018

Wireless 5 GHz generation

Wi-Fi 5

WiFi speed

AC1200

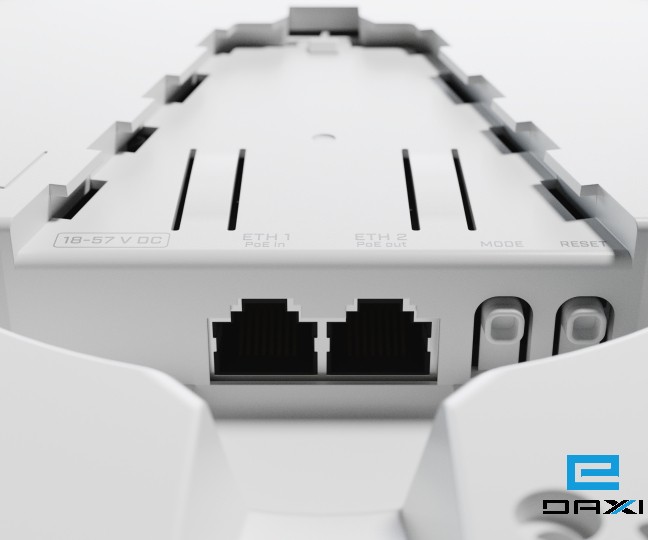

10/100/1000 Ethernet ports

2

Number of 1G Ethernet ports with PoE-out

1

Number of DC inputs

1 (PoE-IN)

Max power consumption

24 W

Max power consumption without attachments

11 W

Cooling type

Passive

PoE in

802.3af/at

PoE in input Voltage

18-57 V

PoE-out ports

Ether2

PoE out

Passive PoE up to 57V

Max out per port output (input 18-30 V)

500 mA

Max out per port output (input 30-57 V)

330 mA

Max total out (A)

500 mA

Certification

CE, FCC, IC, EAC, ROHS

Mode button

Yes

1MBit/s

26

-100

11MBit/s

26

-94

6MBit/s

26

-96

54MBit/s

23

-78

MCS0

26

-96

MCS7

22

-73

6MBit/s

26

-96

54MBit/s

21

-80

MCS0

26

-96

MCS7

20

-75

MCS9

18

-70
