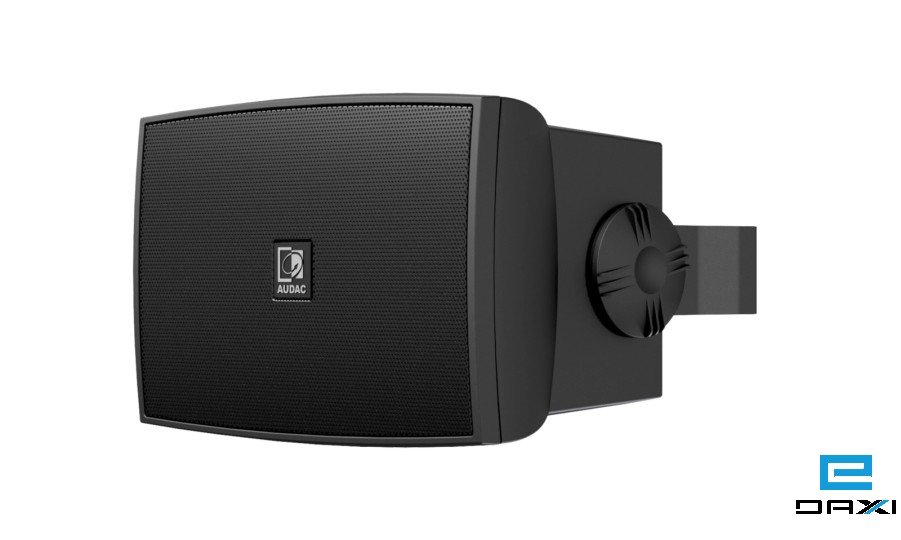

Universal wall speaker 3"

• 1" Dome tweeter
• 3" Low frequency loudspeaker
• Vertical and horizontal mounting

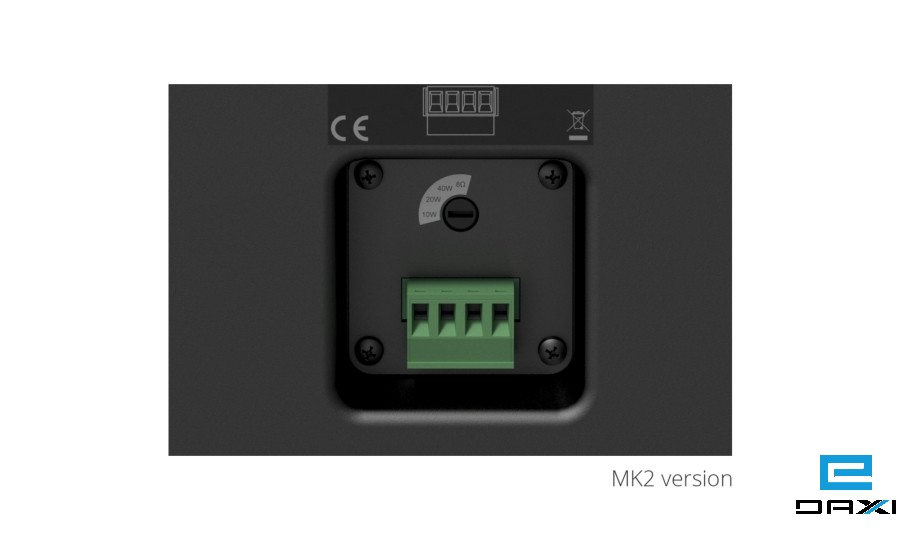

• Terminal block connection (MK2 version)
• Multi-tapping 70V / 100V line transformer

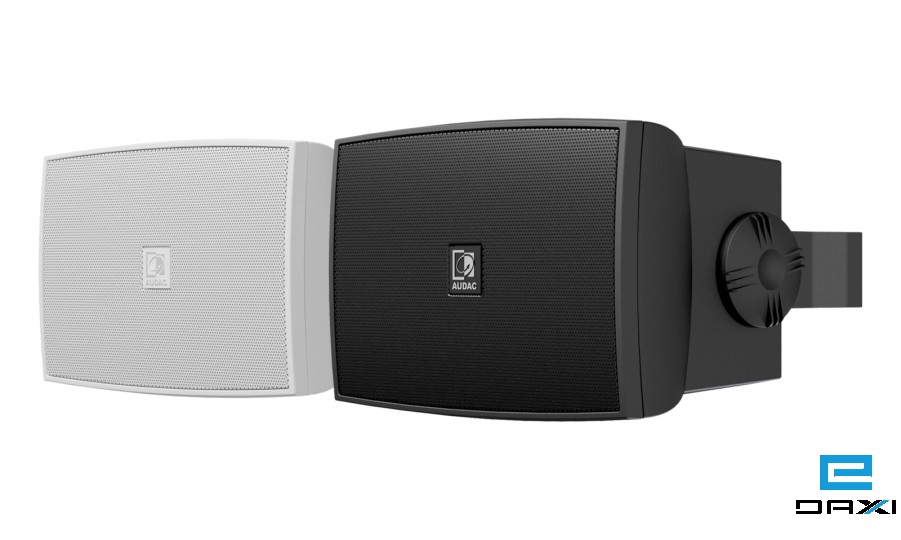

Available models

WX302MK2/B: Black version

WX302MK2/W: White version

System specifications

Crossover: Frequency: 2.5 kHz

Type: Passive built-in

Drivers: HF: 1”

LF: 3”

Frequency: Range (-10 dB): 60 Hz - 20 kHz

Response (± 3 dB): 90 Hz - 18 kHz

Impedance: 8 Ω

Ingress Protection rating: IP40

Sensitivity (1W/1m): 85 dB

Sound Pressure (Max. W/1m): @ 100 V: 95 dB

@ 8 Ω: 100 dB

Speaker type: 2-way

RMS/AES power handling: 30 W

Peak power handling: 120 W

Program power handling: 60 W

Dispersion: Horizontal: 100°

Vertical: 100°

Line Transformer Tappings: 1: 250 Ω - 100 V / Not used - 70 V / 20 W

2: 500 Ω - 100 V / 20 W - 70 V / 10 W

3: 1000 Ω - 100 V / 10 W - 70 V / 5 W

4: 2000 Ω - 100 V / 5 W - 70 V / 2.5 W

Product Features

Dimensions: 188.4 x 129 x 164.8 mm (W x H x D) (Incl. bracket)

Weight: 1.66 kg

Operating temperature: -25 °C ~ 70 °C

Construction: ABS

Mounting & handling: Mounting bracket

Front finish: Steel grill

Colours: Black (RAL9005) (WX302MK2/B)

White (RAL9003) (WX302MK2/W)

Accessories: Included: Mounting bracket

Recommended applications

Sporting facilities

Retail

Corporate

Bars & Restaurants

Residential
