System | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor |
Industrial-grade embedded processor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating System |
Embedded Linux | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operation Interface |
Web; local GUI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI by Camera |
Face detection; face recognition; perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI by Device |
Face detection; face recognition; perimeter protection; SMD Plus | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Perimeter Protection | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Perimeter Performance AI by Device(Number of Channels) |
2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Perimeter Performance of AI by Camera (Number of Channels) |
8 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Attributes |
6 attibutes: Gender; age group (6); glasses; expressions (8); mouth mask; beard | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection Performance of AI by Device (1080P) (Number of Channels) |
1 (up to 12 face images/second) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection Performance of AI by Camera (Number of Channels) |
8 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Recognition | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Database Capacity |
Up to 10 face databases with 20,000 images | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Recognition Performance of AI by Device (1080P) (Number of Channels) |
1 (up to 4 face images/second) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Recognition Performance of AI by Camera (Number of Channels) |
8 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD Plus | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD Plus by Device |
4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD Plus by Camera |
16-channel SMD Plus (AI by camera): Detects tripwire and intrustion of human or vehicle; filters false alarms caused by leaves, raindrops and change of brightness away | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ANPR | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ANPR by Camera |
4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Access Channel |
32 channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Bandwidth |
AI off: Access: 256 Mbps; Storage: 256 Mbps; Forward: 256 Mbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution |
16MP; 12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Decoding Capability |
AI off: 1 channel × 16MP@20 fps; 1 channel × 12MP@20 fps; 2 channels × 8MP@30 fps; 4 channels × 5MP@30 fps; 5 channels × 4MP@30 fps; 10 channels × 1080p@30 fps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Output |
1-ch VGA output and 1-ch HDMI output; simultaneous/heterogeneous video sources output for VGA and HDMI is configurable | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Multi-screen Display |
1st Screen: 1/4/8/9/16/25/36 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Third Party Camera Access |
Panasonic; Sony; Samsung; Axis, Pelco; Arecont; ONVIF; Canon; RTSP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video |
Smart H.265+; Smart H.264+; H.265; H.264; MJPEG | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio |
PCM; G.711A; G.711U; G.726 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol |
HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Phone Access |
Android; iOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability |
ONVIF(profile T/S/G); CGI; SDK | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser |
Chrome; IE9 or later; firefox | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Record Playback | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Multi-channel Playback |
Up to 16 channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Record Mode |
Manual; schedule (general; MD; alarm; MD & alarm; intelligent) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Method |
Local HDD; network | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Backup |
USB device | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Playback Function |
1. Play; pause; stop; fast forward; fast backward; rewind; play by frame | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General Alarm |
Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Anomaly Alarm |
Camera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligent Alarm |
Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Linkage |
Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

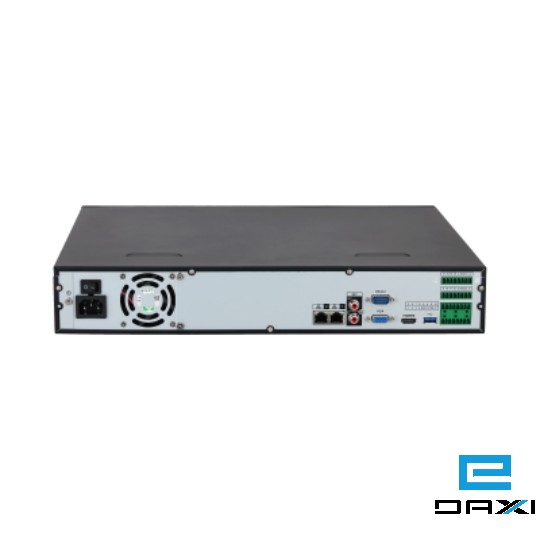

External Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HDD |
4 SATA ports, up to 10 TB. The maximum HDD capacity varies with environment temperature | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB |
1 front USB 2.0 port, 1 rear USB 3.0 port | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HDMI |
1 (max. resolution: 4K) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VGA |
1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet ports | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RCA Input |
1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RCA Output |
1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Input |
16 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output |
4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-232 |
1 channel, used to debug and pass through serial data | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-485 |
1 channel, used to control PTZ, and it supports multiple protocols | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General Parameter | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
Single, 100 V–240 V AC, 50 Hz–60 Hz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
Total output of NVR is ≤ 8 W (without HDD) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
4.25 kg (9.35 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
6.48 kg (18.41 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
440.0 mm × 415.6 mm x 76.0 mm (17.32" × 16.36" × 2.99") (W × L × H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Package Dimensions |
529.0 mm × 499.0 mm × 211.0 mm (20.83" × 19.65" × 9.31") (W × L × H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Conditions |
–10 °C to +55 °C (+10 °F to +131 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Conditions |
0 °C to +40 °C (32 °F to 104 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
10%–93% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity |
30%–85% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Altitude |
3,000 m (9,843 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation |
Desktop/Rack mount | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
FCC:47 CFR FCC Part15,SubpartB,Class A |
