Specifications

Model

CS-EB8 (3MP,4GA)

Camera

Image Sensor

1/2.8” 3-Megapixel Progressive Scan CMOS Sensor

Minimum Illumination

0.01 Lux @(F1.6, AGC ON), 0 Lux with IR

Shutter Speed

Self-adaptive shutter

Lens

Viewing angle: 100° (Diagonal), 83° (Horizontal), 44° (Vertical)

PT Angle

Pan: 340, Tilt: 65°

Day & Night

IR-cut filter with auto switch

DNR

3D DNR

Night Vision Distance

IR 15 m，Color Night Vision 15 m

Video & Audio

Max Resolution

2304 x 1296

Frame Rate

Max. 15fps; Self-Adaptive during network transmission

Video Compression

H.265 / H.264

Video Bit Rate

Quad-HD;Full- HD; Hi-Def. Adaptive bit rate.

Audio Bit Rate

Self-Adaptive

Max. Bitrate

1.5 Mbps

Network

Frequency Bands

EU:

LTE FDD: B1/B3/B7/B8/B20/B28

LTE TDD: B38/B40

LA：

LTE FDD:

B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28/B66

LTE TDD: B38/B40

Function

Smart Alarm

Smart human motion detection

GPS

Supports

Two-way Talk

Supports

General Function

Anti-Flicker, Heart Beat, Password Protection, Watermark

Storage

Local Storage

Supports microSD Card (Up to 512G)

Cloud Storage

EZVIZ cloud storage

General

Operating Conditions

-20 °C to 50 °C (-4 °F to 122 °F ), humidity 95% or less (Non-condensing)

IP Grade

IP65

Power Supply

DC 5V/2A (Adapter needs to be purchased separately)

Battery Capacity

10400 mAh

Power Consumption

Max. 10W

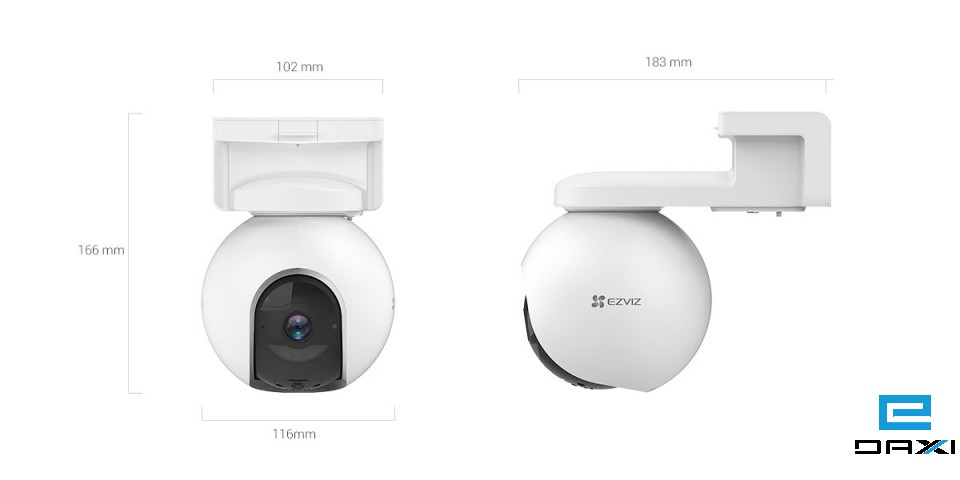

Product Dimensions

183 × 116 × 166 mm (7.20 × 4.57 × 6.52 inch)

Packaging Dimensions

216 × 145 × 203 mm (8.50 × 5.71 × 7.99 inch)

Weight

Net weight: 835 g (26.8 Oz) With package: 1072 g (34.4 Oz)

In the box

In the box

- EB8 4G Camera

- Drilling Template

- Type C Cable

- SIM Card Adapter

- Screw Kit

- Quick Installation Guide

- Regulatory Information

- Quick Start Guide

Certifications

Certifications

CE / WEEE / RoHS / UKCA/ REACH
