Hardware Specifications | ||
CPU |
CPU Model |
AMD Ryzen R1600 |
CPU Quantity |
1 | |
CPU Core |
2 | |
CPU Architecture |
64-bit | |
CPU Frequency |
2.6 (base) / 3.1 (turbo) GHz | |
Hardware Encryption Engine | ||
Memory |
System Memory |
2 GB DDR4 ECC |
Notes |
Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. | |
Storage |
Drive Bays |
4 |
Compatible Drive Type* (See all supported drives) |
| |
Hot Swappable Drive* | ||
Notes |
"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay. | |

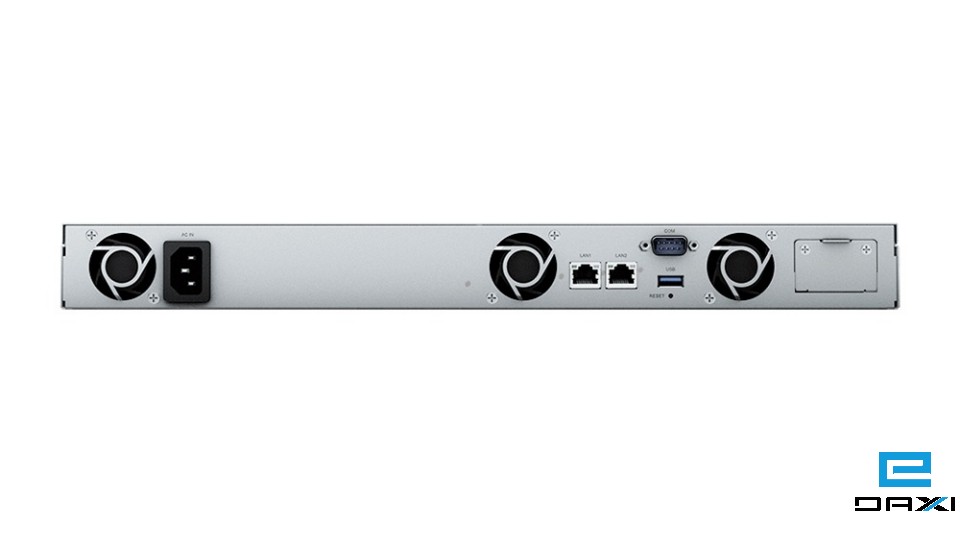

External Ports |
RJ-45 1GbE LAN Port |
2 (with Link Aggregation / Failover support) |
USB 3.2 Gen 1 Port* |
1 | |
Notes |
| |
PCIe |
PCIe Expansion |
1 x Gen3 x2 network upgrade slot |
Appearance |
Form Factor (RU) |
1U |
Size (Height x Width x Depth) |
44 mm x 478 mm x 327.5 mm | |
Weight |
4.38 kg | |
Rack Installation Support* |
| |
Notes |
The rail kit is sold separately | |
Others |
System Fan |
40 mm x 40 mm x 3 pcs |
Fan Speed Mode |
| |
Power Recovery | ||
Noise Level* |
28.5 dB(A) | |
Scheduled Power On / Off | ||
Wake on LAN / WAN | ||
Power Supply Unit / Adapter |
100 W | |
AC Input Power Voltage |
100V to 240V AC | |
Power Frequency |
50/60 Hz, Single Phase | |
Power Consumption |
37.93 W (Access) | |
British Thermal Unit |
129.42 BTU/hr (Access) | |
Notes |
| |
Temperature |
Operating Temperature |
0°C to 35°C (32°F to 95°F) |
Storage Temperature |
-20°C to 60°C (-5°F to 140°F) | |
Relative Humidity |
5% to 95% RH | |
Certification |
| |
Warranty |
3-year hardware warranty, extendable to 5 years with EW201 or Extended Warranty Plus | |
Notes |
| |
Environment |
RoHS Compliant | |
Packaging Content |
| |
Optional Accessories |
| |
Notes |
Certain items may not be available in your location. Please contact your local distributors for more information. |
