This HDMI kvm Fiber Extender suppurt use one piece of fiber cable to extend the HDTV display up to 20KM
for 1920*1080P@60Hz,It not only breaks the limitation of the HDMI cable transmission length, but also fiber
has more flexibility and convenience in cable construction.

It offers solutions for residential consumers: HDTV retail and show site, HDTV,STB,DVD and projector factories,
space and security concerns, data center control, information distribution, conference room presentation,
school and corporate training etc. environments.


Advantages:
1) The length of HDMI cable is fixed and unchangeable after it is produced.
Because the HDMI connector can only be soldered or terminated by the professional workers in factory,
the users can not reduce or increase by themselves, however fiber cables are available everywhere and
can be processed easily by the user or installer.
2)Because the head of the long HDMI cable is big, using it must in hidden method, what is more,
it is not easy to bend the HDMI cable and to pull it through the in-wall tube or tray.
However,CAT-5e/6 or fiber cables do not have such problems.
3) With this extender, the transmission distance can be up to 20KM s while using fiber cables,
for the general HDMI cables, they must be customized when the length is over 10 meters.

FEATURES:

1) One pair as a full functional module, no need of setting.
2) Fiber cable can substitute HDMI cable to achieve long distance transmission.
3) The video resolution can be up to 1920*1080P@60Hz.
4) Compact size
5) Signaling rates up to 1.65bps in support of 1920*1080P@60Hz display.
6) HDCP compliant
7) Support uncompressed audio such as LPCM
8) Support compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby

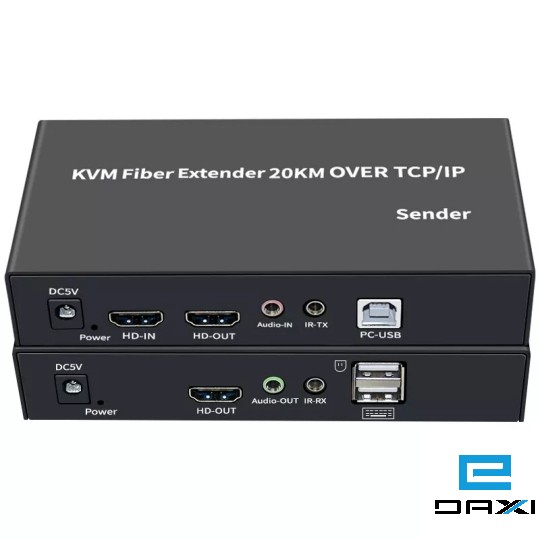

9) The sender with HDMI input/output, audio input and Ir input.
10) The Receiver with HDMI output, audio output and Ir output.

PARAMETERS LIST

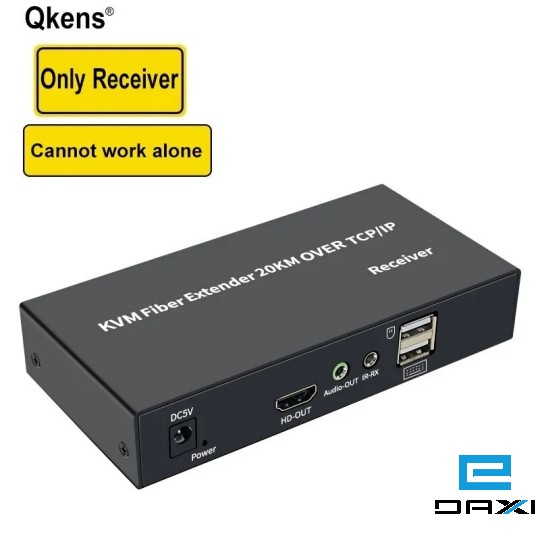

Package Content for "Only Receiver" :

20km HDMI KVM Fiber Receiver x1

DC Adapter x1

IR cable x1

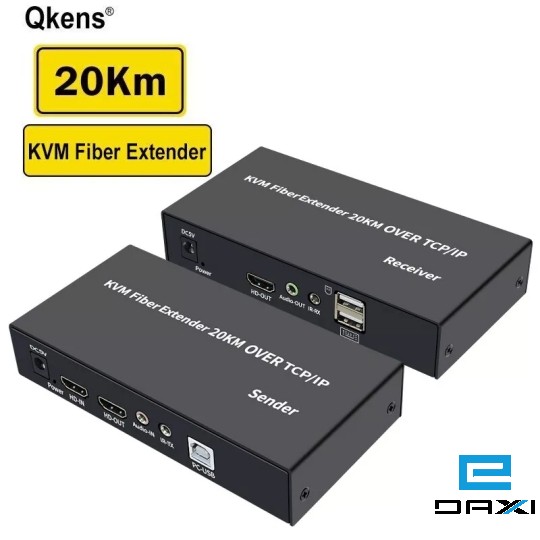

Package Content for "Full set (TX RX)" :

20km HDMI KVM Fiber Transmitter x1

20km HDMI KVM Fiber Receiver x1

DC Adapter x2

USB A-B cable x1

IR cable x2

manual x1
