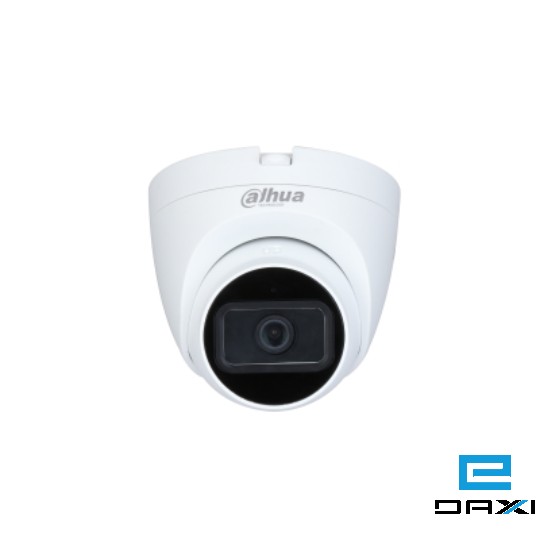

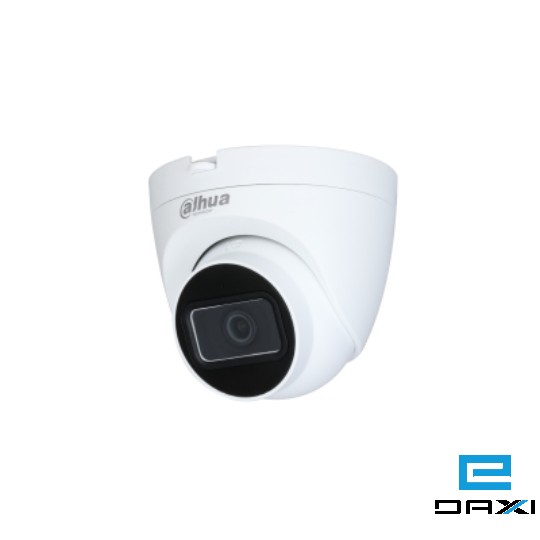

2MP HDCVI Quick-to-install IR Eyeball Camera
* The parameters and datasheets below can only be applied to 1200-S5 series
> Max 30fps@1080P
> Quick-to-install eyeball saves installation time
> Built-in mic (-A)
> CVI/CVBS/AHD/TVI switchable
> 3.6mm fixed lens (2.8mm optional)
> Max. IR length 25m, Smart IR
> IP50, DC12V
Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor |
1/2.7 inch CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution |
1920(H)×1080(V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixel |
2MP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System |
Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed |
PAL: 1/25s–1/100000s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio |
>65dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination |
0.02 Lux/F1.9, 30IRE, 0 Lux IR on | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance |
25 m (82.0 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control |
Auto; manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number |
2 (IR) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt/Rotation Range |
Pan: 0°–360° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type |
Fixed-focal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mount Type |
M12 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length |
2.8 mm; 3.6 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture |
2.8 mm: F1.9 3.6 mm: F2.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View |
2.8 mm: H: 101°; V: 54° ; D: 119° 3.6 mm: H: 84°; V: 45°; D: 100° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Type |
Fixed iris | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance |
2.8 mm: 0.5 m (1.64 ft) 3.6 mm: 0.8 m (2.62 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
2.8 mm |
38.6 m (126.6 ft) |
15.4 m (50.5 ft) |
7.7 m (25.3 ft) |
3.9 m (12.8 ft) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
3.6 mm |
49.7 m (163.1 ft) |
19.9 m (65.3 ft) |
9.9 m (32.5 ft) |
5 m (16.4 ft) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frame Rate |
CVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution |
1080P (1920×1080); 720P (1280×720); 960H (960× 576/960×480) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night |
Auto switch by ICR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC |
BLC/HLC/DWDR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR |
DWDR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance |
Auto; manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control |
Auto; manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction |
2D NR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart IR |
Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mirror |
Off/On | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Privacy Masking |
Off/On (8 area, rectangle) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Output |
Video output choices of CVI/TVI/AHD/CVBS by one BNC port | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Interface |
Built-in Mic (-A) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
12V ±30% DC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
Max 2.6 W (12V DC, IR on) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
-40°C to +50°C (-40°F to 122°F);<95% (non-condensation) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature |
-40°C to +50°C (-40°F to 122°F);<95% (non-condensation) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection Grade |
IP50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing |
Plastic | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions |
Φ97.1 mm × 93.0 mm (Φ3.82" × 3.66") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
0.17 Kg (0.37lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
0.23 Kg (0.51lb) |
