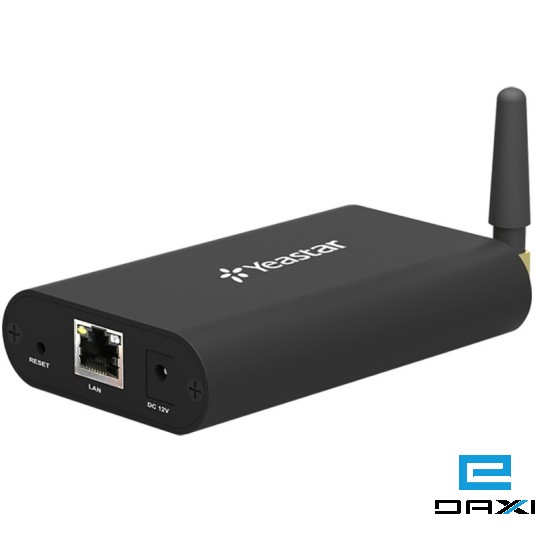

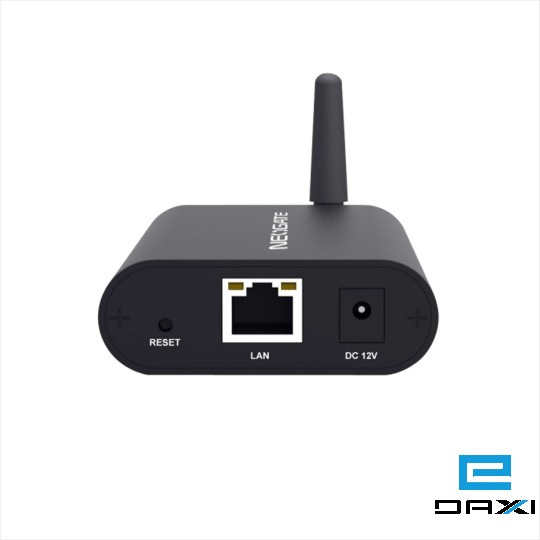

Yeastar Neogate TG100 – 1 Port GSM VoIP Gateway

eastar NeoGate TG100 is a fully featured 1 port VoIP GSM gateway that provides GSM network connectivity for softswitch and IP PBX. It significantly reduces the costs of calls with two-way communication: VoIP to GSM and GSM to VoIP. With friendly GUI, everything can be easily set up.

Yeastar TG100 VoIP GSM Gateway Highlights:

• Calling Type – termination (VoIP to GSM), origination (GSM to VoIP)
• Intelligent call routing
• Callback function
• SMS sending and receiving (Web interface)
• LCR (least cost routing)
• Simple web based configurations
• Cost Savings – Save phone bills tremendously with mobile-to-mobile calls and LCR.
• Back up – Work as a cost-effective backup when the landline network goes down.
• Easy to install – Everything can be easily set up in the Web based management interface.
• Easy to integrate – High compatibility with major IP PBX and softswitch brands (Asterisk, MS Lync, Trixbox, Elastix, FreeSWITCH, 3CX)

Yeastar TG100 Gateway Specs

• Number of GSM channels (Max): 1
• Network type: 850/900/1800/1900MHz
• Protocol: SIP (RFC3261), IAX2
• Transport Protocol: UDP,TCP,TLS,SRTP
• DTMF: RFC2833, SIP INFO, In-band
• Codec: G.711 a/u-law, G.722, G.726, G.729a, GSM, ADPCM, Speex
• Echo Cancellation: ITU-T G.168 LEC
• LAN: 1 (10/100 Mbps)
• Network: Static IP, DHCP Client, Firewall, VLAN, DDNS, QoS, OpenVPN
• NAT Traversal: Static NAT, STUN
• Size: 110x70x24mm
• Power Supply: AC 100~240V/50~60Hz (DC 12V, 1A)
