Printing |
|
Print Method |
Direct Thermal |
Print Speed |
260mm/s |
Resolution |
576dots/line or 572dots/line |
Printing Width |
72mm |
Paper separator(option) |
48mm/52mm/56mm/64mm/68mm/76mm/80mm |
Interface |
RS232C+USB+Lan |
Kitchen function | |
Power,Paper,Erro |
Support |
LED light with beeper |
Without |
Hanging device |
Equipped |
Memory | |
Input buffer |
256kbytes |
NV Flash |
256kbytes |
Fonts |
|
Font A |
12x24 |
Font B |
9x17 |
Fonts | |
Chinese |
GB18030,BIG5 24x24dots |
Japanese/Korea |
Support |
User-defined |
Support |
Barcode |
|
1D |
UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 |
2D |
QR code |
Detection | |
Sensors |
Paper out, paper near end, cover open, cutter jam,paper jam and black mark detection(Optional) |
Power Supply |
|
Input |
AC 100V-240V 50/60HZ |
DC 24V/2.5A |
DC 24V/2.5A |
Paper |
|
Paper Type |
Thermal Receipt Paper |
Paper Width |
48mm/52mm/56mm/64mm/68mm/76mm/80mm |
Paper Thickness |
0.06~0.08mm |
Roll Dia |
Max. Ø 83 mm |

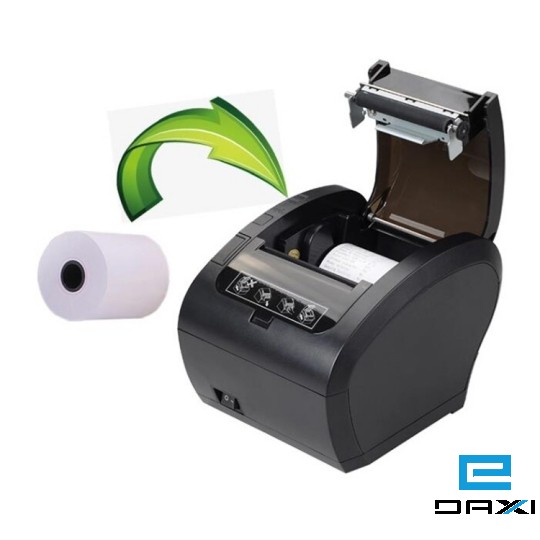

Paper Load |
Easy paper loading |
Paper Cut |
Manual tear or Auto-cutter |
Physical Characteristics | |
Working Condition |
0°C~45°C, 10%~80%RH |
Storage Condition |
-10°C-60°C,10%~90%RH |
Dimensions |
191(D)x146(W)x12.9(H)mm |
Net weight |
1.94kg |
Gross weight |
2.14kg |
Reliability | |
Printing head |
150KM |
cutter |
1.5million |
Packing | |
Individual box |
Dimension 25X20X16cm(LXWXH) 1unit/carton |
Master carton |
Dimension 63X27X35cm(LXWXH) 6units/carton |
OS | |
Emulation |
ESC/POS |
Driver |
Windows XP /Vista/ Win7/Win8 /Win10/Win 2000/Win CE/OPOS/JPOS |
SDK |
Android, IOS |

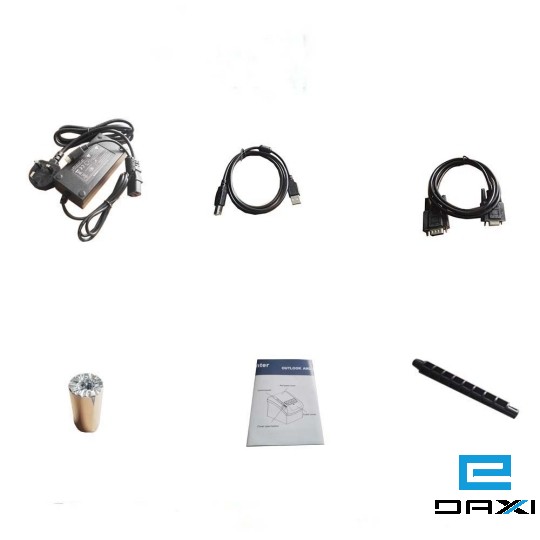

Accessories |
data cable,power adaptor,power code,paper roller,CD,manual,paper separator(option) |
