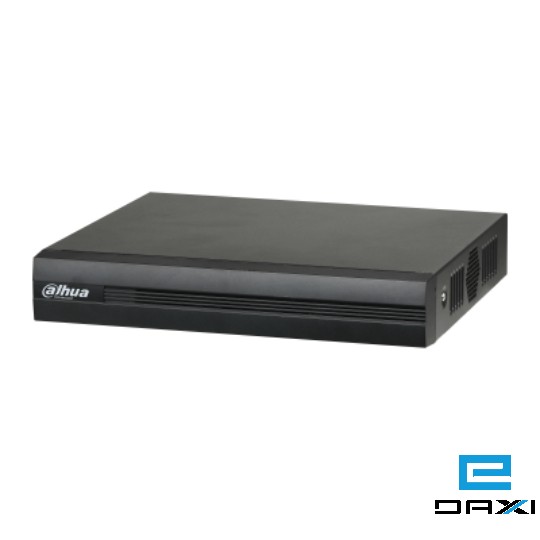

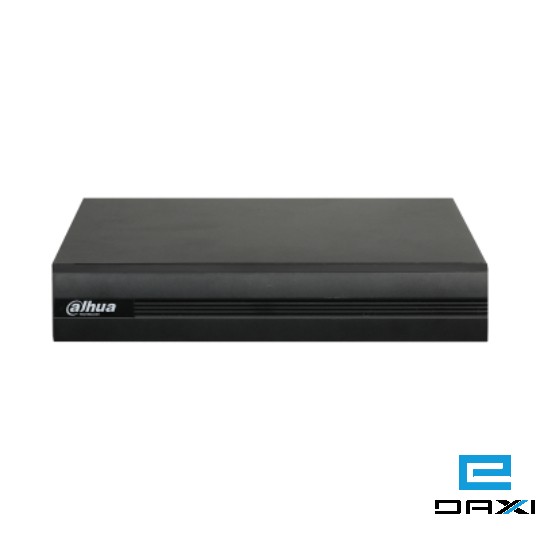

16CH Penta-brid 5MP Value/1080P Compact 1U 1HDD WizSense Digital Video Recorder
> H.265+/H.265 dual-stream video compression
> Supports Full-channel AI Coding
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 24 channels IP camera inputs, each channel up to 6MP; Max 128 Mbps incoming bandwidth
> Long transmission distance over coax cable
> Up to 16 channels video stream (analog channel) SMD Plus
> POS functionalities
System | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor |
Embedded processor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating System |
Embedded Linux | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Interface |
Web; Local GUI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD Plus | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD Plus by Recorder |
16 channels: Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio and Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Analog Camera Input |
16 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Camera Input |
1. CVI: 5MP@20fps, 5MP@25fps, 5MP@10/12.5fps, 4MP@25/30fps, 1080p@25/30fps, 720p@50/60fps, 720p@25/30fps. 2. TVI: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps. 3. AHD: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IP Camera Input |
Up to 24 channels of IPC access 16 IP channels by default + 8 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps *After IP channels are added beyond the existing channels, the AI Function SMD will be disabled. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Encoding Capacity |
Main stream: 5MP Mode: 4-ch 5MP@(1-6fps); other channels 5M-N@(1-12fps) 5M-N Mode: All channel 5M-N@(1–12fps);4M-N,1080p@(1–15fps); 1080N, 720p, 960H, D1,CIF@(1–25/30fps) Sub stream: D1, CIF@(1–15fps) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dual-stream |
Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate |
PAL: 1 fps–25 fps. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate |
32 Kbps–6144 Kbps Per Channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Sampling |
8 KHz, 16 bit | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Bit Rate |
64 Kbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Output |
1 HDMI, 1 VGA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Multi-screen Display |
When IP extension mode not enabled: 1/4/8/9/16 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Third-party Camera Access |
Onvif, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression Standard | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression |
AI Coding/H.265+/H.265/H.264+/H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression |
G.711A/G.711u/PCM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol |
HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Phone Access |
iPhone, iPad, Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability |
ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser |
Chrome, IE9 or above, Firefox | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Mode |
Single-address mode | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Recording Playback | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Record Mode |
General, motion detection; intelligent; alarm; POS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Recording Playback |
1/4/9/16 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Backup Method |
USB Device/Network | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Playback Mode |
Instant playback, general playback, event playback, tag playback, smart playback | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General Alarm |
Motion detection, Video Loss, tampering | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Anomaly Alarm |
No disk, disk error, low space, offline, ip conflict, MAC conflict | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Linkage |
Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

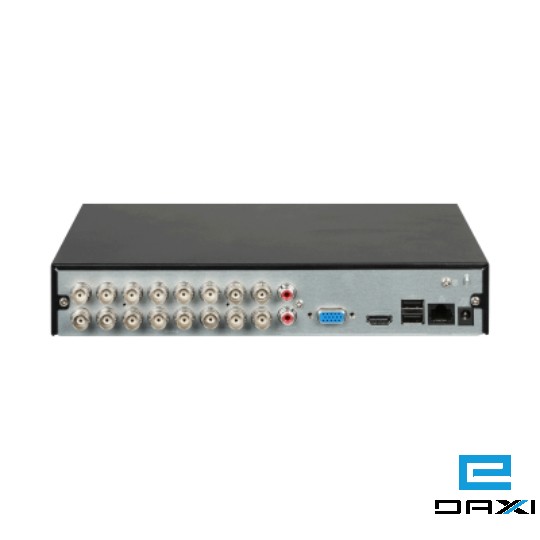

Ports | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input |
1-channel RCA (external) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output |
1-channel RCA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Two-way Talk |
Yes (share the same audio input with the first channel) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HDD Interface |
1 SATA Port,up to 16TB, the maximum HDD capacity varies with environment temperature | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB |
2 (USB 2.0 port) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HDMI |
1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VGA |
1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port |
1 (10/100/1000 Mbps Ethernet port, RJ-45) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
DC12V, 2A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
Lower than 12 W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
0.93 kg (2.05 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
1.43 kg (3.16 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
Compact 1U, 260.0 mm × 231.4 mm × 47.6 mm (10.24'' × 9.11'' × 1.87'') (W × D × H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions |
333.0 mm × 89.0 mm × 315.0 mm13.11" × 3.50" × 12.40" (W × D × H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–10 °C to +45 °C (+14 °F to +113 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
10%–90% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation |
Desktop | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE: CE-LVD: EN 60950-1/IEC 60950-1 |
