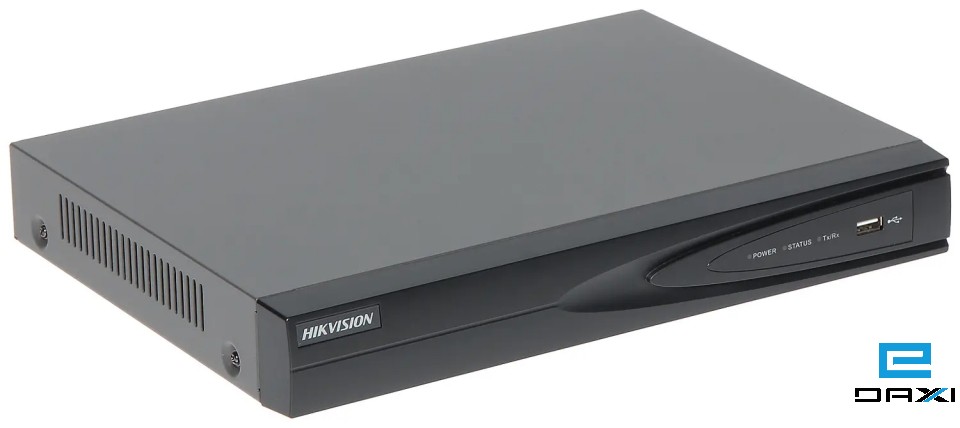

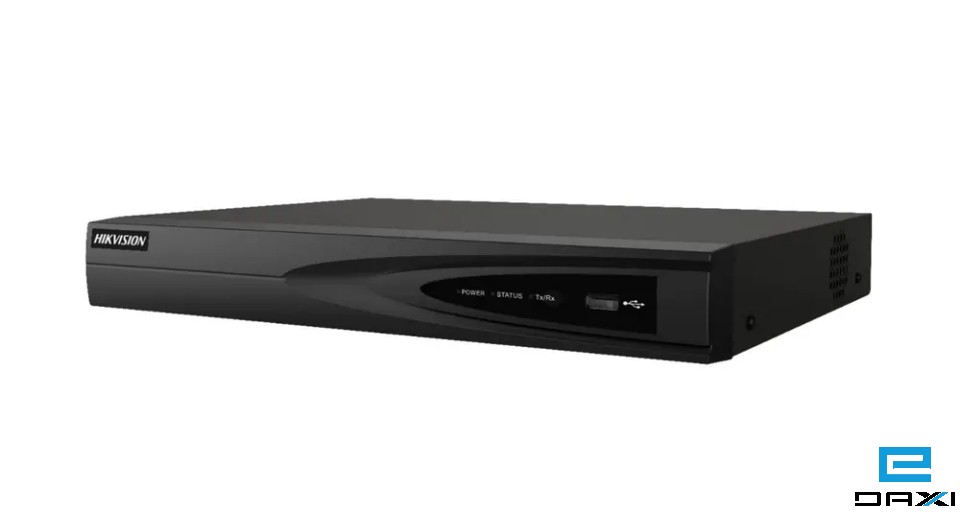

4-ch 1U 4 PoE 4K NVR

• Up to 4-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
• Up to 40 Mbps incoming bandwidth

• Motion Detection 2.0
• Human/Vehicle Analysis1-ch;4-ch

• Recording
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726

• Video And Audio
• IP Video Input4-ch
• Incoming Bandwidth40 Mbps
• Outgoing Bandwidth80 Mbps
• HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
• VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output ModeHDMI/VGA simultaneous output
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1kΩ)

• Decoding
• Decoding FormatH.265+/H.265/H.264+/H.264
• Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback4-ch
• Decoding Capability

1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)

*: The length or width of camera resolution (each track) cannot exceed 4096 pixels.

• Network
• Remote Connection32
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface

• PoE
• Interface4-ch, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power≤ 50 W
• StandardIEEE 802.3 af/at

• Auxiliary Interface
• SATA1 SATA interface
• CapacityUp to 8 TB capacity for each disk
• USB Interface2 × USB 2.0
• Alarm In/OutN/A (4/1 is optional)

• General
• Power Supply48 VDC, 1.35 A
• Consumption≤ 10 W (without HDD and PoE off)
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)320 × 240 × 48 mm (12.4" × 9.4" × 1.9")
• Weight≤ 1.18 kg (without HDD, 2.6 lb.)

• Certification
• FCCPart 15 Subpart B, ANSI C63.4-2014
• CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
