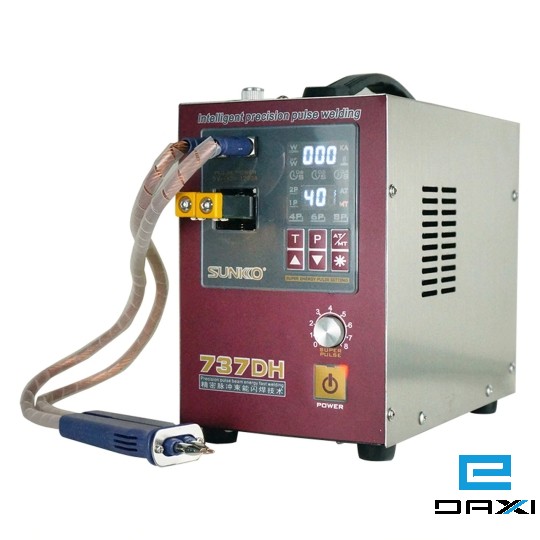

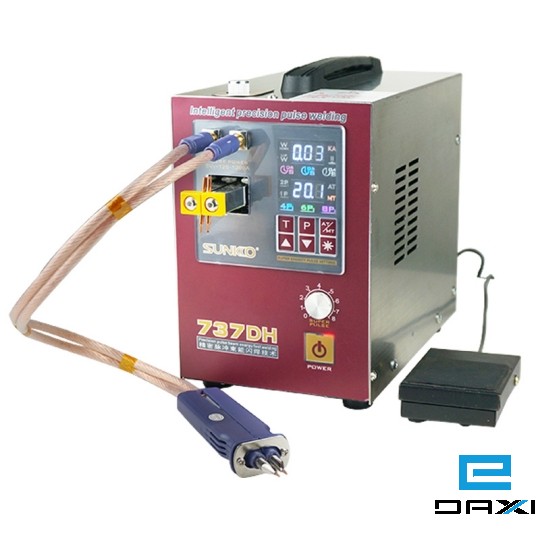

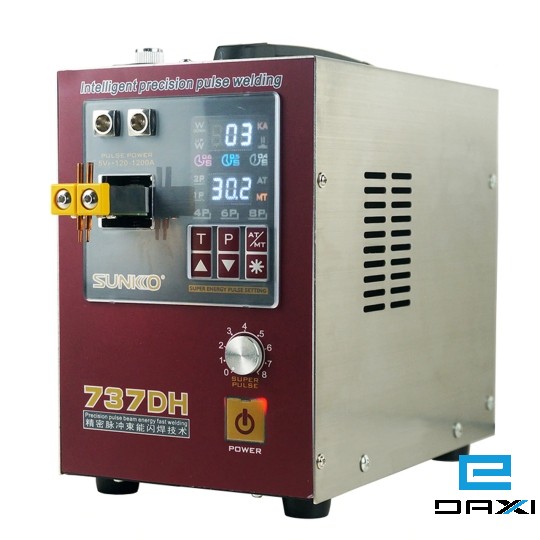

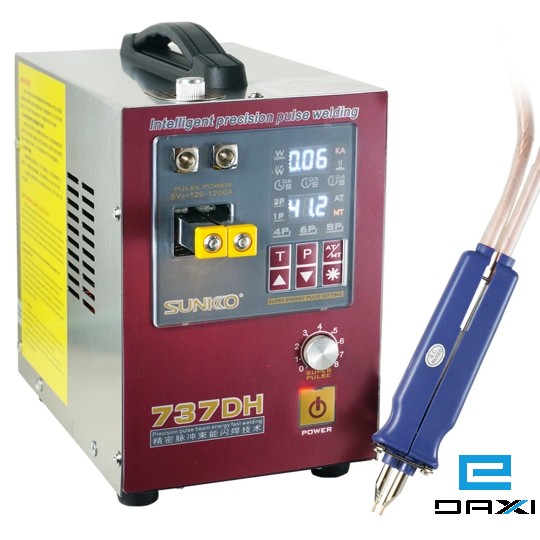

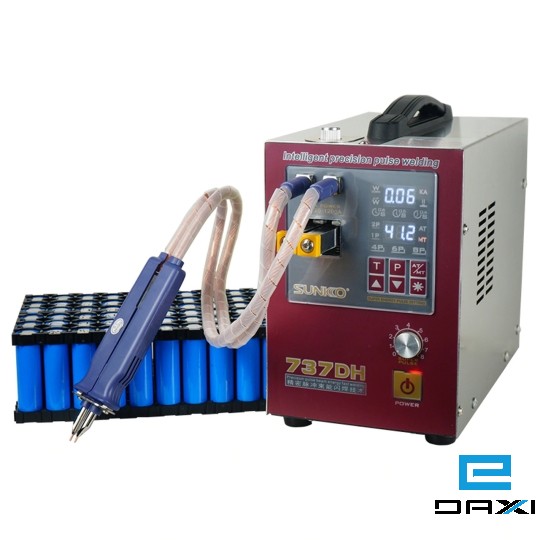

737DH is the newest version of SUNKKO 737 series battery spot welders.

Features:

  • Two welding ways are optional - fixed welding head and mobile welding pen, meeting your requirements for building different-sizes battery packs.
  • Two welding mode switching with one button - Intelligent automatic touch-sensing spot welding and controlling with foot pedal (AT/MT).
  • The fixed welding head is equipped with LED light, which helps you work in dark environment or at night.
  • The pulse group number is adjustable, 2/4/6/8/10/12/14/18 pulses can be set.
  • 737DH new feature - Time-delay spot welding, 0.4s/0.5s/0.6s/0.9s/1s/1.1s/1.5s can be set.
  • The pulse power can be adjusted conveniently by one knob.
  • Displaying actual welding current.
  • S-70BN(default)/S-71A/S-71B three mobile welding pens can be chosen for different welding requirements.

Product Parameters

  • Size: LxWxH - 140mmx245mmx200mm
  • Weight: 7kg/15.4lbs
  • Input power: AC 220V/110V±20V
  • Power: 4.3kw
  • Welding current: 120-1200A (Fixed welding head)
  • 2 pulses time: 1-10ms
  • 4 pulses time: 2-20ms
  • 8 pulses time: 8-80ms
  • Welding thickness of fixed welding head: 0.15-0.35mm (nickel plated); 0.05-0.25mm (pure nickel)
  • Welding thickness of mobile welding pen: 0.05-0.25mm (nickel plated); 0-0.15mm (pure nickel)

Package list

  • 737DH main machine - 1pc
  • 70BN mobile welding pen - 1pc
  • foot pedal switch - 1pc
  • six-cells battery fixture - 1pc
  • mini grinder for welding neeedles - 1pc
  • Welding needles (fixed welding head) - 4pcs
  • Welding pins (70BN welding pen) - 2pcs
  • Fuse tube - 2pcs
  • Hex wrench - 1pc
  • 0.15x8x100mm nickel plated strips - 50pcs
  • 0.1x4x100mm nickel plated strips - 50pcs
  • User manual ( Page 1, 2, 3, 4 ) - 1pc
