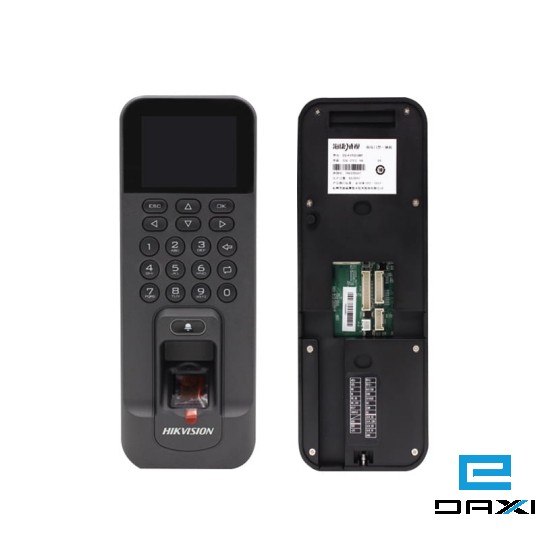

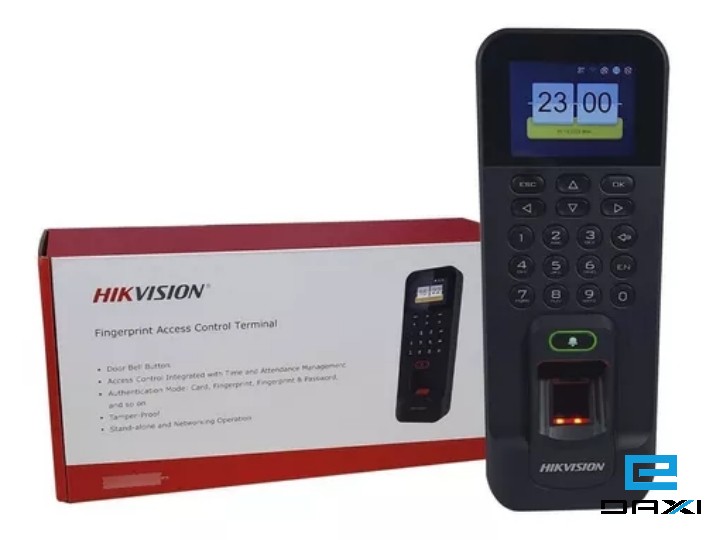

K1T804A Pro Series Fingerprint Terminal

• Integrated management of access control and the time and attendance functions
• 3,000 fingerprints, 3,000 cards and 100,000 events storage
• Built-in card reader for EM card
• Communication via TCP/TP and Wi-Fi
• RS-485, wiegand interface
• Alarm input and output interface
• ISUP5.0, ISAPI

• Display
• Screen Size2.4-inch
• Resolution320 × 240
• TypeLCD-TFT display screen

• Audio
• Audio Output1 loudspeaker, 1 buzzer

• Network
• Wired NetworkTCP/IP, 10/100Mbps, self-adaptive
• Wi-FiSupport

• Interface
• Network Interface1
• RS-4851
• Wiegand1
• Lock Control1
• Exit Button1
• Door Contact Input1
• Alarm Input1
• Alarm Output1
• TAMPER1
• USB1

• Capacity
• Card Capacity3000
• Fingerprint Capacity3000
• Event Capacity100,000

• Authentication
• Card TypeEM card
• Card Reading Distance0 to 5 cm
• Card Reading Duration＜ 1 s
• Fingerprint ModuleOptical fingerprint module
• Fingerprint Comparing Mode1:1 and 1:N
• Fingerprint Recognition Duration＜ 1 s

• General
• IndicatorPower/status (red/green)
• Power Supply12 VDC/1 A
• Working Temperature-10 °C to +55 °C (14 °F to +131 °F)
• Working Humidity10% to 90% (no condensing)
• ColorBlack (included), gold (optional), silver (optional), white (optional)
• Dimensions205 mm × 76.5 mm × 37 mm (8.07" × 3.01" × 1.46")
• InstallationSurface mounting
• LanguageEnglish, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, and Ukrainian
