Output Voltage 24VDC @ 0.5 A

Input Voltage 90-260VAC @47-63Hz

Input Current 0.3A @120VAC, 0.2A @230VAC

Inrush Current <15A peak @120VAC, <30A peak

Efficiency 70+%

Output Ripple 1% Max

Switching Frequency 200kHz

Line Regulation +/- 0.5%

Load Regulation +/- 1%

Operating Temperature -10C to +60 deg C

Storage Temperature -20 to +85 deg C

Operating Humidity -10C to +60 deg C

Size (LXWXH) 85 x 55 x 33 (mm)

Weight 4 oz

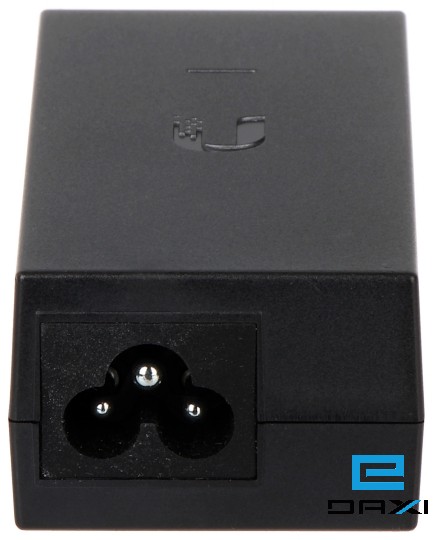

AC Connector IEC-320 C6

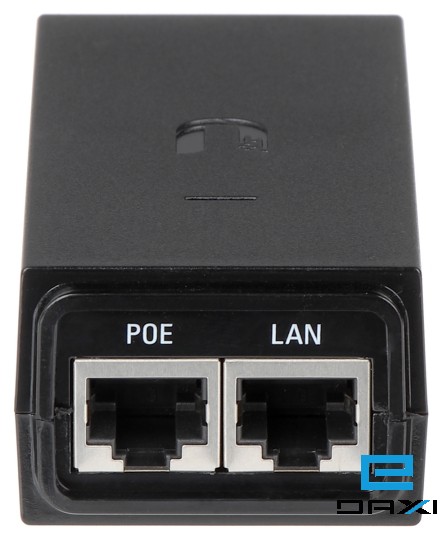

Data IN / POE RJ45 Shielded Socket

80% Current Indicator Power LED will change color

Surge Protection Common Mode

Clamping Protection 11V Data, 77.5V Power

Max Surge Discharge 1200A (8/20uS) Power

Peak Pulse Current 36A (10/1000uS Data)

Shunt Capacitance <5pF data

Response Time <1nS

Compliance UL, EN55022 (CISPR22) class B, Meets CE
