Support Ultra 265/H.265/H.264 video formats
4/8/16-channel input
Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
HDMI and VGA simultaneous output
Up to 4K resolution recording
1 SATA HDD up to 8TB
Support cloud upgrade
Model |
NVR301-04S3 |
NVR301-08S3 |
NVR301-16S3 |
Video/Audio Input | |||
IP Video Input |
4-ch |
8-ch |
16-ch |
Network | |||
Incoming Bandwidth |
64Mbps | ||
Outgoing Bandwidth |
48Mbps | ||
Remote Users |
128 | ||
Protocols |
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP | ||
Video/Audio Output | |||
HDMI/VGA Output |
HDMI: | ||
Recording Resolution |
4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||
Audio Output |
1-ch, 3.5mm | ||
Audio Compression |
G.711A, G.711U | ||
Synchronous Playback |
4-ch |
8-ch |
16-ch |
Liveview display |
1/4 |
1/4/6/8/9 |
1/4/6/8/9/16 |
Corridor Mode Screen |
3/4 |
3/4/5/7/9 |
3/4/5/7/9/10/12/16 |
Snapshot | |||
FTP/Schedule/Event Snapshot |
1-ch snapshot, up to D1 resolution | ||
Decoding | |||
Decoding format |
Ultra 265/H.265/H.264 | ||
Liveview/Playback |
4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||
Capability |
1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30 |
1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30 |
1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30, 16 x D1@25 |
Hard Disk | |||
SATA |
1 SATA interface | ||
Capacity |
Up to 8TB for each disk | ||
Smart | |||
VCA Detection by Camera |
Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection, Ultra Motion Detection(UMD) | ||
VCA Search |
Face Search, Behavior Search | ||
Smart Intrusion Prevention (SIP), UMD by Camera |
Total 4-ch | ||
General Alarm | |||
General Alarm |
Motion, Tampering, Human Body Detection, Video Loss, Alarm Input | ||
Alert Alarm |
IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | ||

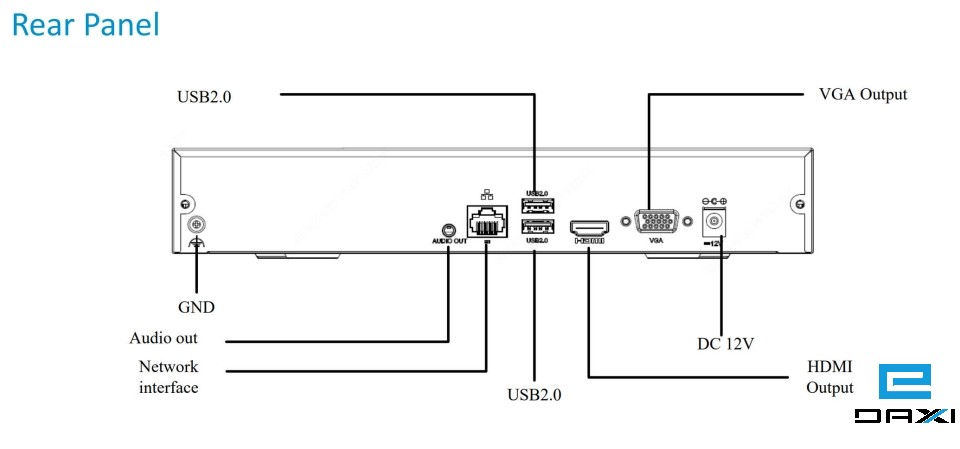

External Interface | |||
Network Interface |
1 RJ45 10M/100M self-adaptive Ethernet Interface | ||
USB Interface |
Rear panel: 2 x USB2.0 | ||
RS232 |
NA | ||
RS485 |
NA | ||
Alarm In |
NA | ||
Alarm Out |
NA | ||
General | |||
Power Supply |
12V DC | ||
Working Environment |
-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) | ||

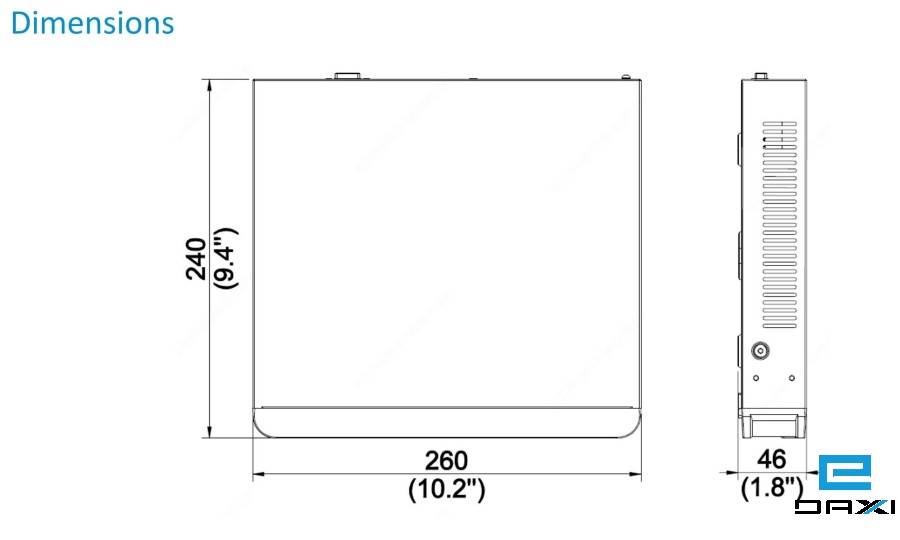

Dimensions (W×D×H) |
260mm × 240mm × 46mm (10.2"×9.4"×1.8 ") | ||
Weight (without HDD) |
≤0.98kg (2.16 lb) | ||
Certification | |||
Certification |
CE, FCC, UL, RoHS, WEEE | ||
CE |
EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 | ||
FCC |
Part15 Subpart B, ANSI C63.4 |
