Specifications

Model

CS-H3c-R100-1K2WF

Camera

Image Sensor

1/2.7”Progressive Scan CMOS

Minimum Illumination

0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR

IR Night Vision Distance

Up to 98 ft / 30 m

Shutter Speed

Self-adaptive shutter

Lens

4mm @ F2.0, view angle: 82° (Horizontal), 98° (Diagonal)

Lens Mount

M12

DNR

3D DNR

WDR

Digital WDR

Day / Night Switch

IR-Cut filter with auto-switching

Video & Audio

Max. Resolution

1080p, 1920 × 1080

Frame Rate

Max: 30fps; Self-Adaptive during network transmission

Video Compression

H.265 / H.264

Video Bit Rate

Full HD; HD; Standard. Adaptive bit rate.

Audio Bit Rate

Self-Adaptive

Max. Bitrate

2 Mbps

Network

Wi-Fi Standard

IEEE802.11b, 802.11g, 802.11n

Frequency Range

2.4 GHz ~ 2.4835 GHz

Channel Bandwidth

Supports 20 MHz

Security

64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK

Transmission Rate

11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps

Wi-Fi Pairing

AP Pairing

Protocol

EZVIZ Cloud Proprietary Protocol

Interface Protocol

EZVIZ Cloud Proprietary Protocol

Wired Network

RJ45 × 1 (10M / 100M Adaptive Ethernet Port)

General

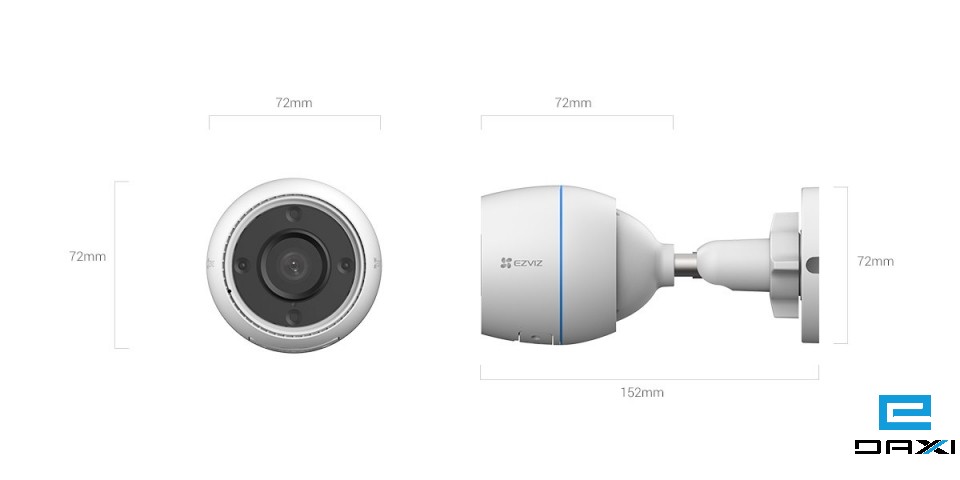

Dimensions

72mm × 72mm × 157mm (2.83 × 2.83 × 5.98 inch)

Package Dimensions

227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch)

Weight

Net weight: 250 g (8.82 oz), With Package: 447 g (15.77 oz)

IP Grade

IP67

Operating Conditions

-30 °C to 50°C ( -22 °F to 122 °F ), humidity 95% or less (non-condensing)

Function

Detection

AI-Powered Human Shape Detection, Motion Detection

Customized Alert Area

Supports

Integration

Works with Alexa, Google Assistant, IFTTT

General Function

Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark

Storage

Local Storage

Supports microSD card (Up to 512 GB)

Cloud Storage

Supports EZVIZ CloudPlay storage (Subscription required)

Power

Power Supply

DC 12V / 1A

Power Consumption

Max. 6W

In the box

In the box

- H3c Camera

- Drill Template

- Screw Kit

- Waterproof Kit

- Power Adapter

- Regulatory Information

- Quick Start Guide

Certifications

Certifications

CE / FCC / UKCA / UL / WEEE / RoHS / REACH
