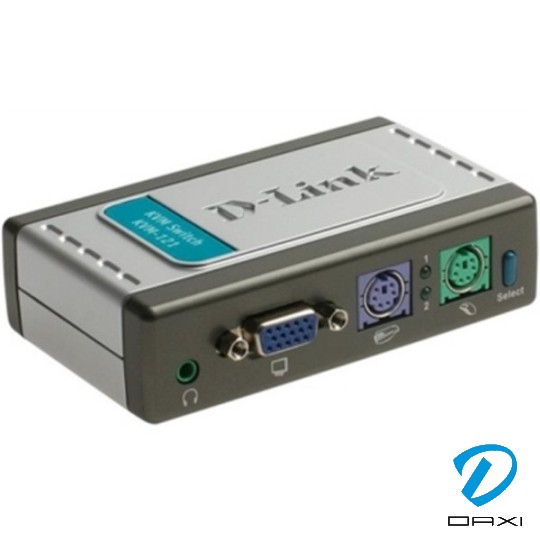

Connection to Console • Mini DIN 6-pin female keyboard connector • Mini DIN 6-pin female mouse connector • HD 15-pin female monitor connector • 3.5-mm audio socket Connection to KVM Cables • 2 HDDB 15-pin female connectors • 2 3.5-mm audio sockets
KVM Cables 2 sets of 1.8-m (6-ft) KVM cables provided for connection to computers, each with the following connectors: • HDDB 15-pin female connector • Mini DIN 6-pin male keyboard plug • Mini DIN 6-pin male mouse plug • HD 15-pin male monitor plug • 3.5-mm audio plug Diagnostic LEDs • 2 port LEDs for 2 connected Purchase
PC Selection • Using Push button • Using keyboard hot keys to: - Switch between PC with or without synchronous audio signals - Enable/disable key beep - Reset mouse/keyboard - Auto-scan mode or without auto-scan mode (Auto-scan between computers every 10 seconds) O.S. Support • Windows 98, ME, NT, 2000, 2003, XP • Linux Power Input • From PC's PS2 ports, no external power adapter required Power Consumption • 5V 70mA Dimensions • 104 x 61 x 28 mm (KVM switch only) Weight • 565 grams (KVM switch & 2 sets of KVM cables) Operating Temperature • 0 to 40 C
