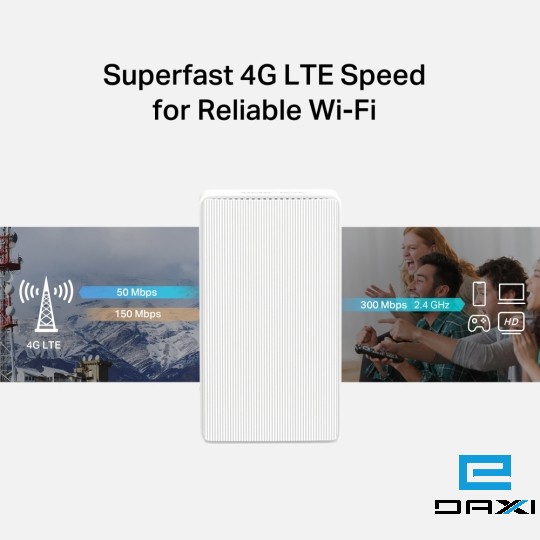

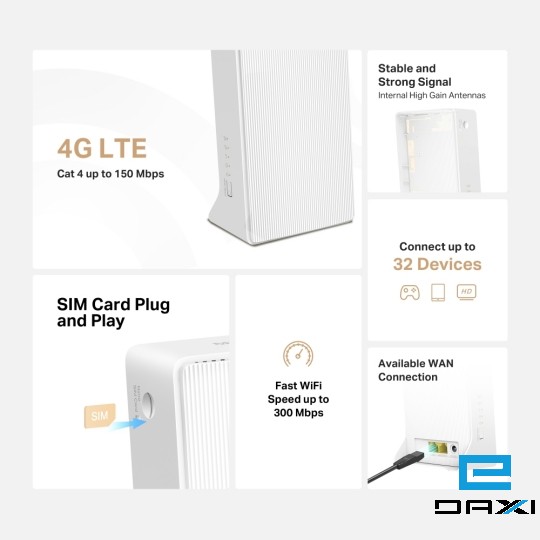

• 4G network – Enjoy the 4G LTE download speeds up to 150 Mbps.

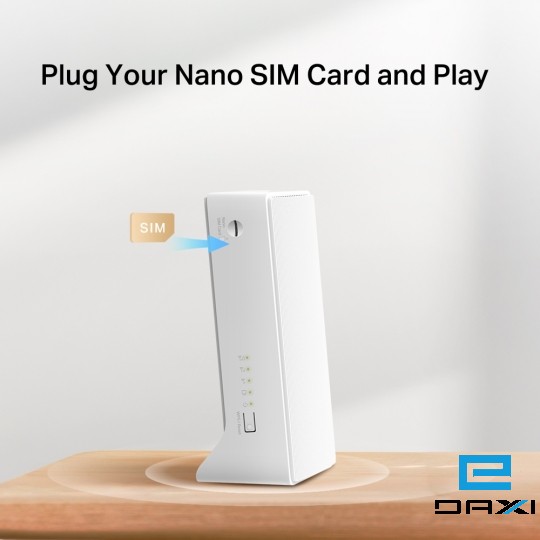

• Plug a SIM card and play – No configurations needed, compatibility of SIM cards are assured by years of field tests
• 300 Mbps WiFi – Fast WiFi speeds up to 300 Mbps to share your network
• Simultaneous Connection– Share internet access with up to 32 Wi-Fi devices

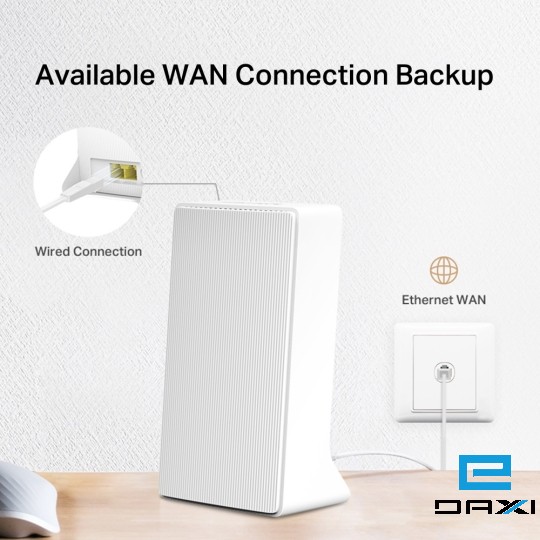

• Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection

Wireless

Wireless Standards

IEEE 802.11b/g/n

Frequency

2.4 GHz

WiFi Speeds

300 Mbps

Reception Sensitivity

11g 54M: -74 dBm
11n HT20: -71 dBm
11n HT40: -68 dBm

Transmission Power

Wireless Security

WPA-PSK / WPA2-PSK

Wireless Functions

Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics

Hardware

Dimensions

95×61.05×165.97 mm

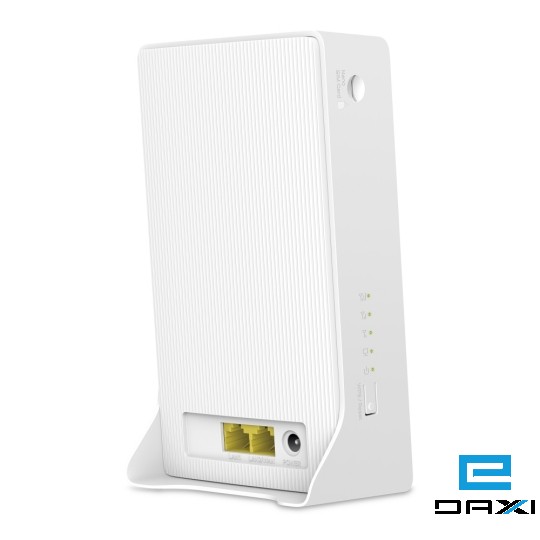

Interfaces

1× 10/100Mbps LAN/WAN Port

1× 10/100Mbps LAN Port

1× Nano SIM Card Slot

Button

WPS/Reset Button

Ethernet Ports

1× 10/100 Mbps LAN/WAN Port +

1× 10/100 Mbps LAN

Network Type

EU:

FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)

TDD-LTE: B38/B40 (2600/2300 MHz)

HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)

Software

DHCP

Server

Others

Package Contents

300 Mbps Wireless N 4G LTE Router (MB112-4G)

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~60°C (-40°F~140°F)

Operating Humidity: 10%~90% Non-Condensing

Storage Humidity: 5%~90% Non-Condensing
