Specification:
Heating Method: Automatic Heating (Preheating)

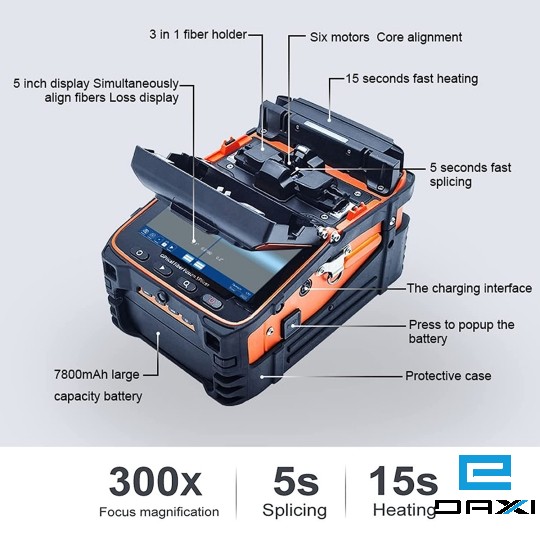

Focusing Mode: Six Motor Auto Focusing
Applicable Fibers: SM (G.652 And G.657), MM (G.651), DS (G.657), NZDS (G.655)
Control Technology: Real-Time Control and Calibration With ARC
Fiber Diameter: Cladding Diameter: 80-150um Coating Diameter: 100-1000um
Fiber Cutting Length: Coating Less Than 250um: 8-16mm Coating Less Than 250-1000um: 16mm
Software Update Length: Automatic Update; Button Time Update: 1 Second

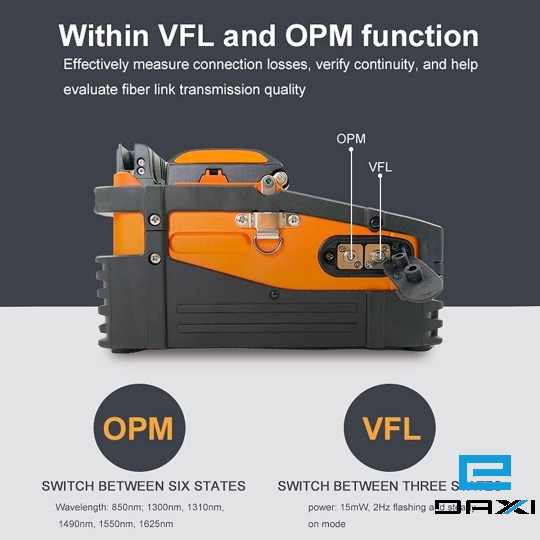

Visual Fault Locator: Power: 15mw, 2hz Flicker and Constant Brightness Mode

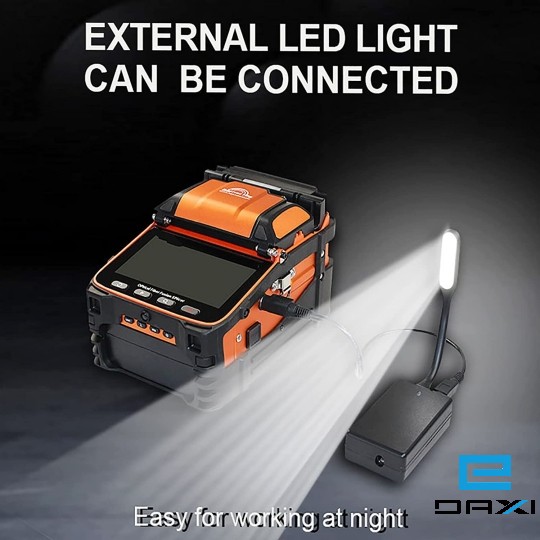

Built-in Lighting: Easy to Operate at Night
Tension Test: Standard 2N
Fiber Holder: 3-In-1 Fiber Holder, SM, MM, Bare Fiber, Pigtail, Rubber Insulated Multi-Cable Cable
Magnification: 300 For X or Y View and 150 For X or Y View
Screen: 5-Inch TFT
Stitched Record Storage: Sync To Mobile Phone, Server To Cloud Storage Unlimited
Built-In Battery: 7800 MAh Large Capacity Lithium Battery, Charging Time ≤3.5 Hours, Continuous Splicing and Heating About 200 Times
Power Supply: Input AC100-240V 50 / 60Hz, Output DC13.5V / 4A, Can Identify the Current Power Mode, Real-Time Detection of Battery Power Operation
Heat Shrinkable Tube: 60mm, 50mm, 40mm, 25mm
Product Protection: Waterproof, Dustproof, Shockproof

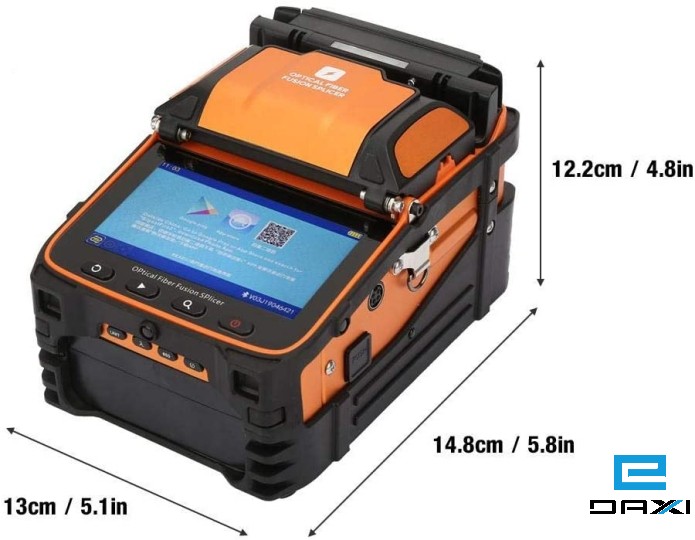

Size: Approx. 12.2 * 13 * 14.8cm / 4.8 * 5.1 * 5.8in
Optional Style: EU Plug, US Plug, UK Plug, AU Plug

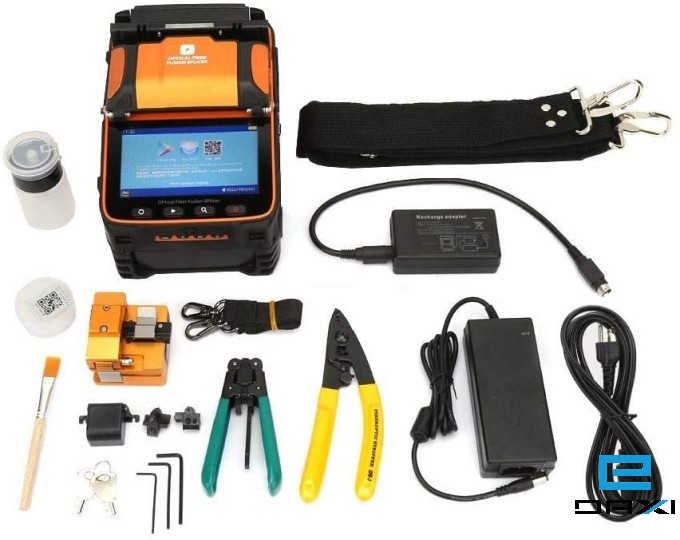

Package List:
1 * Fiber Cleaver
1 Pair of Spare Electrode

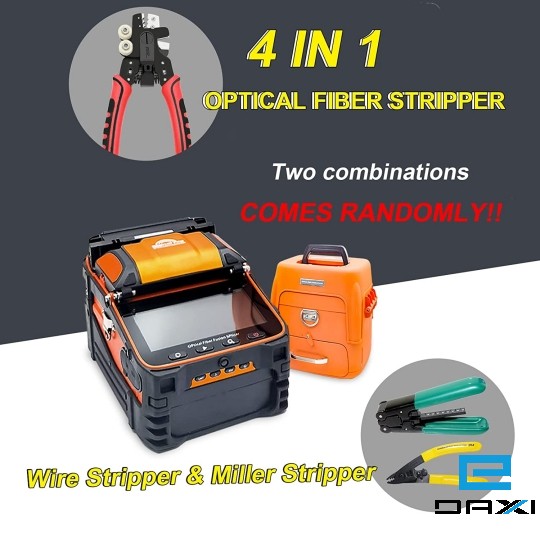

1 * Wire Stripper
1 * Miller Pliers
1 Set of Hex Wrench
1 * Fiber for ARC Calibration
1 * Strap
1 Set of Power Adapter
1 * Alcohol Bottle
1 * Brush
1 * User Manual
1 * Stool
