Product code

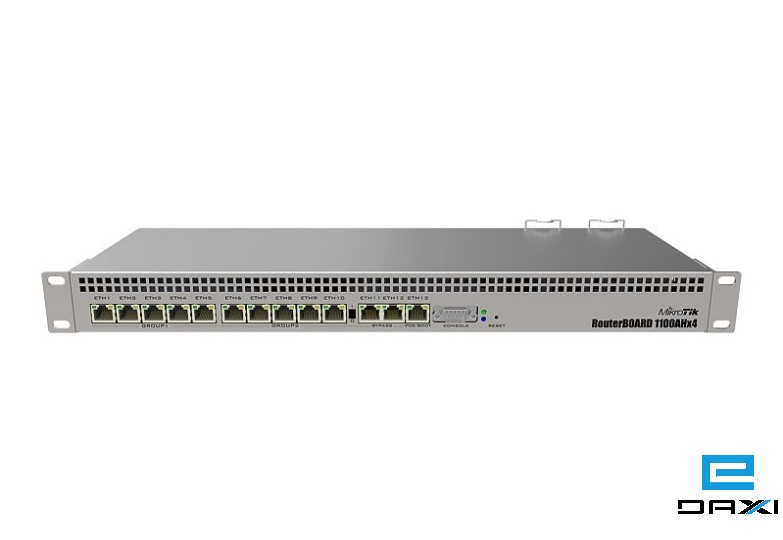

RB1100x4

Architecture

ARM 32bit

CPU

AL21400

CPU core count

4

CPU nominal frequency

1.4 GHz

Dimensions

443 x 148 x 44 mm

RouterOS license

6

Operating System

RouterOS

Size of RAM

1 GB

Storage size

128 MB

Storage type

NAND

MTBF

Approximately 200'000 hours at 25C

Tested ambient temperature

-40°C to 70°C

IPsec hardware acceleration

Yes

Suggested price

$299.00

Number of AC inputs

2

AC input range

100-240

Number of DC inputs

2 (2-pin terminal, PoE-IN)

2-pin terminal input Voltage

-48, 12-57 V

Max power consumption

20 W

FAN count

Passive

PoE in

802.3af/at

PoE in input Voltage

20-57 V

10/100/1000 Ethernet ports

13

Memory card type

microSD

Memory Cards

1

Serial console port

RS232

Current Monitor

Yes

PCB temperature monitor

Yes

Voltage Monitor

Yes

Mode button

Yes

Certification

CE, EAC, ROHS

IP

IP20
