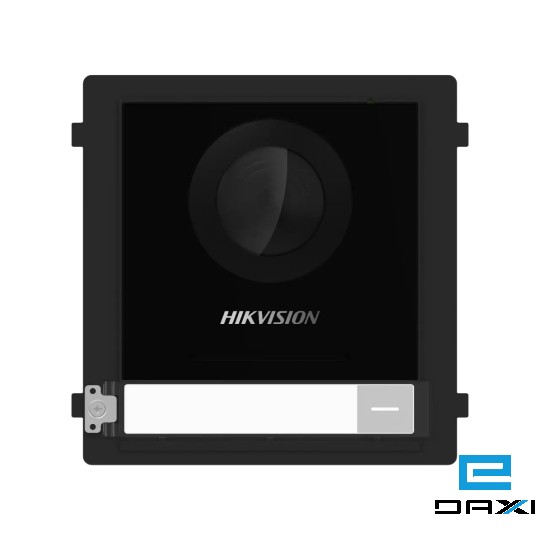

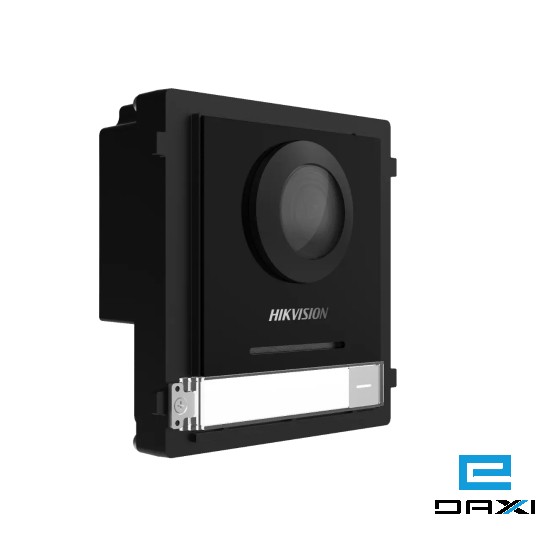

KD8 Series Modular Door Station

• Modular door station main unit, needs mounting bracket
• 2MP HD Camera, fish eye, IR supplement
• 1 Call physical Button, 2 lock relays, 4-ch alarm input
• Video intercom to indoor station and master station
• WEB Configuration
• IP65, 12 VDC or standard PoE
• Power output for electronic lock, max to 12 V, 500 mA

Add to Favorites

• System Parameters
• Operating SystemEmbedded Linux operation system
• ROM32 MB
• RAM256 MB
• CPUEmbedded Processor

• Display Parameters
• Screen SizeNA
• Operation MethodNA
• TypeNA
• ResolutionNA

• Video Parameters
• Supplement LightLow illumination, IR supplement lights
• Video StandardH.264
• Lens1
• FOVHorizontal: 146°, Vertical: 82°
• WDR

Support

• Resolution2 MP

• Audio Parameters
• Audio Input

Built-in omnidirectional microphone

• Audio Compression StandardG.711 U, G.711 A
• Audio OutputBuilt-in loudspeaker
• Audio Compression Bitrate64 Kbps
• Audio QualityNoise suppression and echo cancellation
• Volume AdjustmentAdjustable

• Capacity
• Fingerprint Capacity/
• User Capacity2000
• Card Capacity6000
• Face CapacityNA
• Linked Indoor Station Capacity500
• Event Capacity/
• Sub Door Station Capacity16

• Network Parameters
• Communication ProtocolTCP/IP, RTSP
• Wired Network10/100 Mbps self-adaptive Ethernet
• Wi-FiNA
• BluetoothNA
• 3G/4GNA

• Device Interfaces
• Alarm Input4 (2 exit butttons and 2 door contacts by default)
• Network Interface1 RJ45
• TAMPER1
• Exit Button2 (2 for lock control)
• Door Contact Input2
• RS-4851 (1 for Hikvision's sub module communication)
• WiegandNA
• TF CardNA
• Alarm OutputNA
• Lock Control2 (2 relay, max to 30 V, 2 A)
• USBNA
• Power Interface12 VDC power output (max to 12 V, 500 mA)
• Two-Wire IP InterfaceNA

• General
• Power Supply12 VDC/PoE ( IEEE 802.3af)
• Working Temperature-40° C to 60° C (-40° F to 140° F)
• Working Humidity10% to 95%
• Button1
• Protective LevelIP65
• InstallationSurface mounting & flush mounting
• Dimensions(L × W × H)98 mm × 100 mm × 42 mm (3.86" × 3.94" × 1.65")
• LanguageEnglish,French,Portuguese,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Slovak
• Indicator0
• Weight

Without package: 0.380 kg

With Package: 0.541 kg

• Battery/
• Application EnvironmentOutdoor
• Power Consumption≤ 5 W
