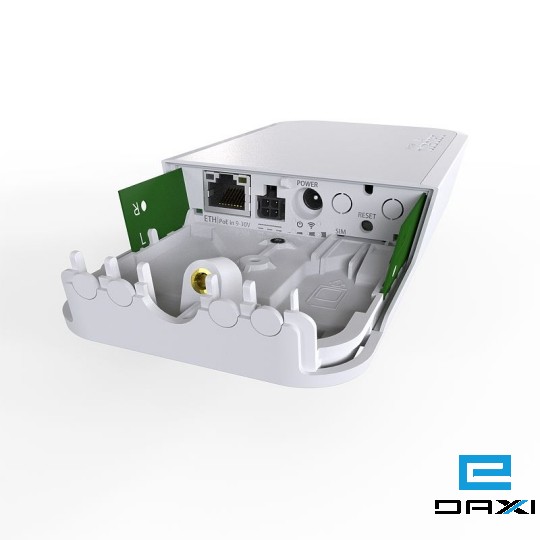

Product code

RBwAPR-2nD&R11e-LTE

Architecture

MIPSBE

CPU

QCA9531

CPU core count

1

CPU nominal frequency

650 MHz

Dimensions

185 x 85 x 30 mm

License level

4

Operating System

RouterOS

Size of RAM

64 MB

Storage size

16 MB

Storage type

FLASH

Tested ambient temperature

-40°C to 60°C

Suggested price

$119.00

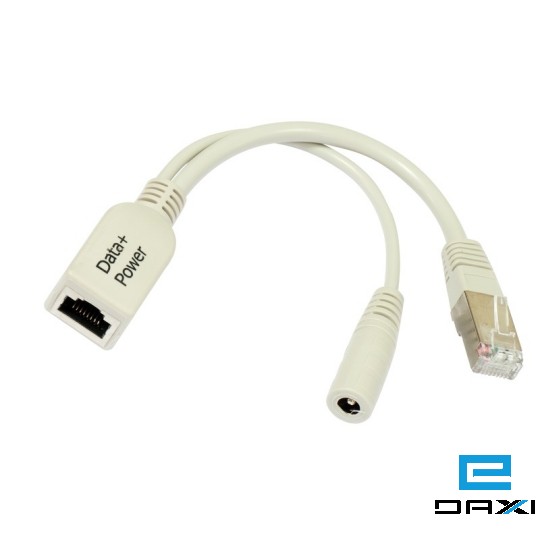

PoE in

Passive PoE

PoE in input Voltage

9-30 V

Number of DC inputs

3 (Automotive, PoE-IN, DC jack)

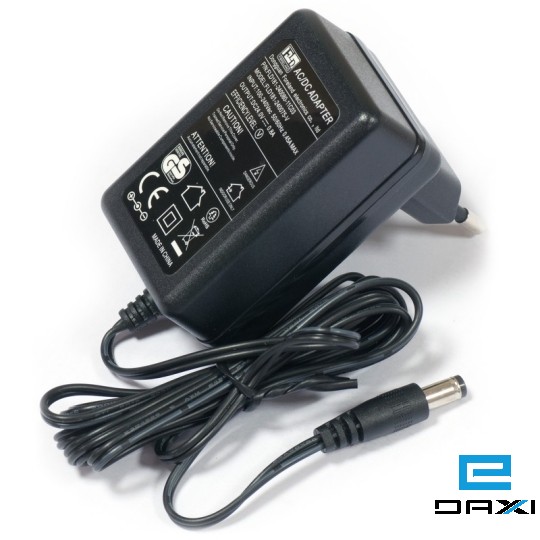

DC jack input Voltage

9-30 V

Automotive input Voltage

9-30 V

Max power consumption

8 W

FAN count

Passive

2G Category

Class12

2G bands

2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)

3G Category

R7 (21Mbps Downlinks, 5.76Mbps Uplink)

3G bands

1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)

LTE Category

4 (150Mbps Downlink, 50Mbps Uplink)

LTE FDD bands

1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)

LTE TDD bands

38 (2600MHz) / 40 (2300MHz)

Wireless 2.4 GHz Max data rate

300 Mbit/s

Wireless 2.4 GHz number of chains

2

Wireless 2.4 GHz standards

802.11b/g/n

Antenna gain dBi for 2.4 GHz

2

Wireless 2.4 GHz chip model

QCA9531

Wireless 2.4 GHz generation

Wi-Fi 4

10/100 Ethernet ports

1

Number of SIM slots

1 Modem (Mini SIM)

MiniPCI-e slots

1

PCB temperature monitor

Yes

Voltage Monitor

Yes

Certification

CE/RED, FCC, IC, E-MARK, EAC, ROHS

1MBit/s

22

-96

11MBit/s

22

-89

6MBit/s

20

-93

54MBit/s

18

-74

MCS0

20

-93

MCS7

16

-71
