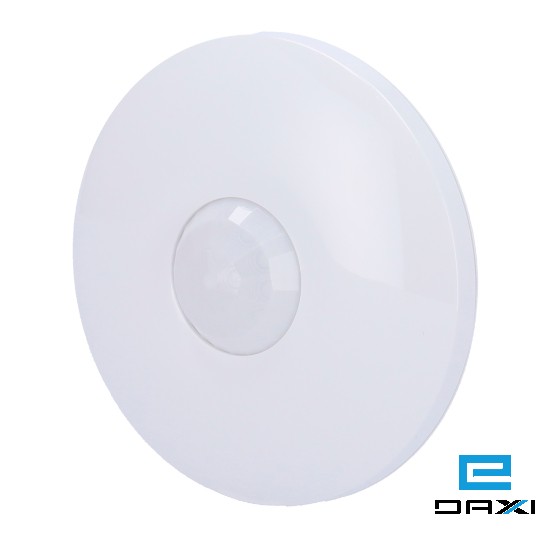

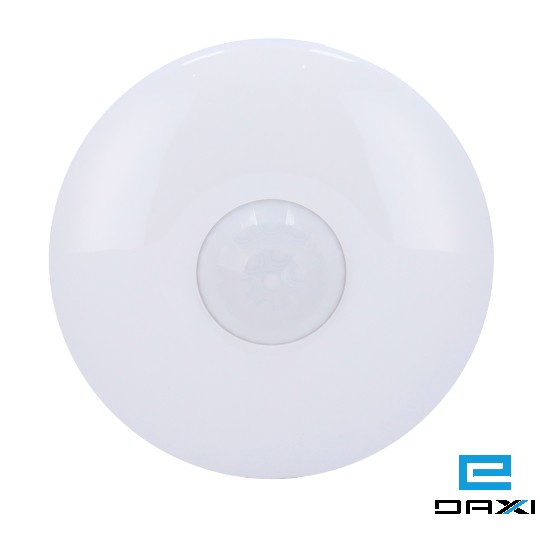

Wired PIR Ceiling Detector

• Digital quad pyro sensor
• Automatic sensitivity

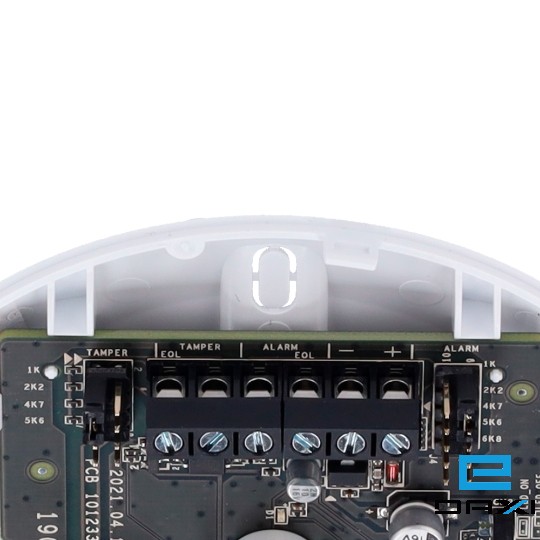

• Wide voltage adaptation and on-board EoL resistor

• Detection Performance
• Detection range12m
• Detection angle360°
• Detection zones172
• Detectable speed0.3～2m/s
• SensitivityLow,Auto
• White light filter6500lux
• Digital temperature compensationSupport
• Creep zone protectionSupport

• Feature
• Digital processingSupport
• Sealed opticsSupport
• Tamper protectionFront

• Hardware features
• Alarm outputNormally Closed

• Interface
• LED indicatorBlue(Alarm)

• Electrical characteristics
• Power consumption

Maximum current：13mA @12VDC

Quiescent current：7mA@12VDC

• Electrical Characteristics
• Power supply9 to 16 VDC
• Typical voltage12 VDC

• General
• Operation temperature-10 °C to 55 °C (14 °F to 131 °F)
• Storage temperature-20 °C to 60 °C (-4 °F to 140 °F)
• Operation humidity10% to 90%
• Dimension(W×H×D)φ101.2 mm x 32.9 mm
• Weight79g
• Mounting height2.4 to 4m
• Mounting methodCeiling
• Application scenarioIndoor
