Surface mount speaker

• Minimalistics and elegant housing
• With or without volume controller
• High intelligibility and sound accuracy
• Connection through SnapConnect™ terminals
• Diverse mounting possibilities

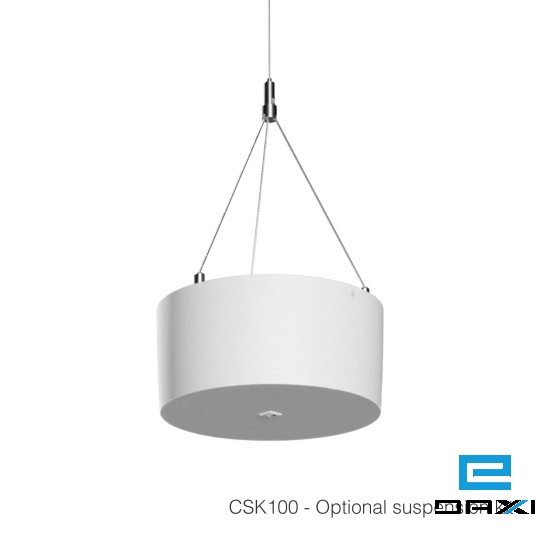

• Optional suspension kit (CSK100)

Available models

NELO706/B: Black version without volume controller

NELO706I/W: White version (RAL9016) without volume controller

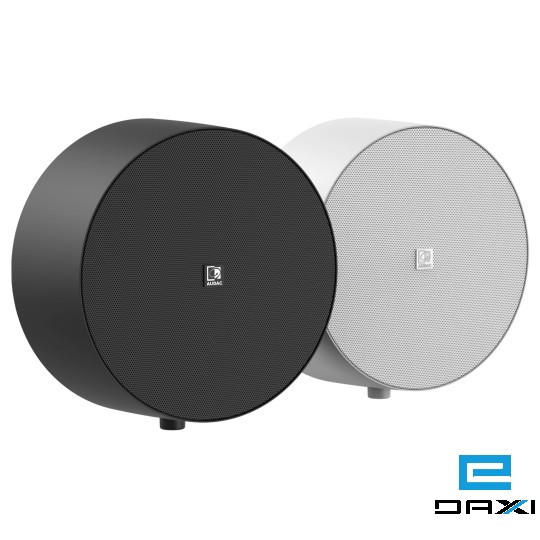

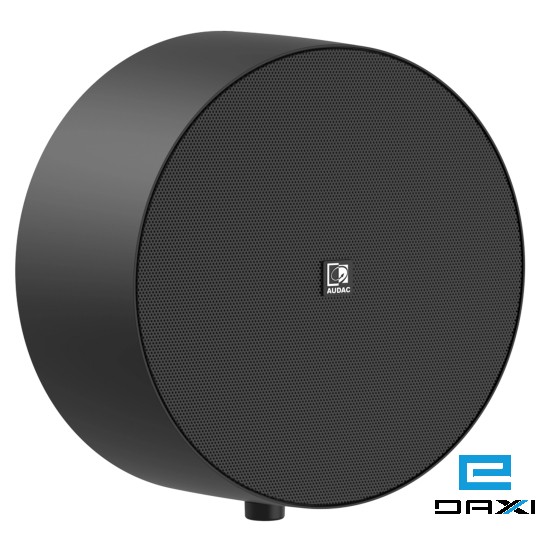

NELO706V/B: Black version with volume controller

NELO706V/W: White version with volume controller

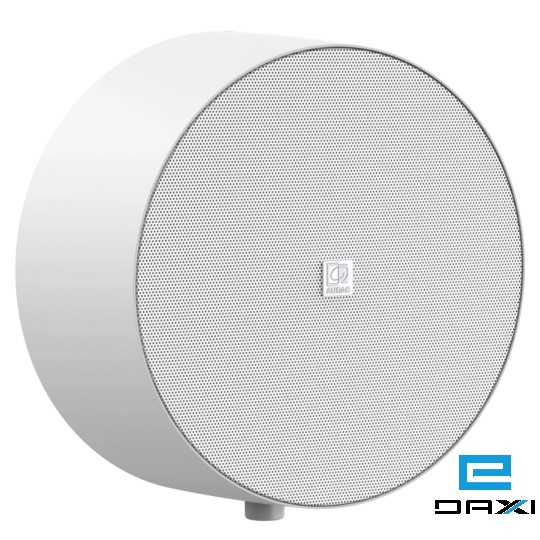

NELO706VI/W: White version (RAL9016) with volume controller

System specifications

Peak power handling: 40 W

Program power handling: 20 W

RMS/AES power handling: 10 W

Sensitivity (1W/1m): 96 dB

Sound Pressure (Max. W/1m): @ 100 V: 106 dB

Speaker type: Broadband

Connection: SnapConnect™

Drivers: 6.5” Full Range

Volume control: Integrated rotary volume controller (only NELO706V)

Frequency: Response (± 3 dB): 100 Hz - 15 kHz

Range (-10 dB): 70 Hz - 18 kHz

Line Transformer Tappings: 1: 833 Ω - 100 V / Not used - 70 V / 6 W

2: 1667 Ω - 100 V / 6 W - 70 V / 3 W

3: 3333 Ω - 100 V / 3 W - 70 V / 1.5 W

Dispersion: Conical: 140°

Product Features

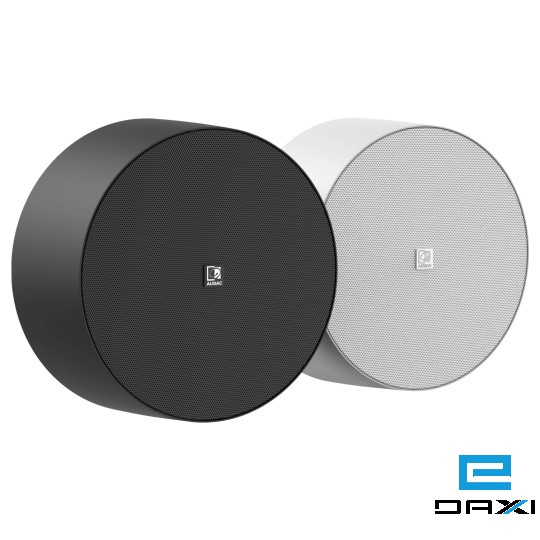

Colours: Black & White

Front finish: Steel grill

Construction: ABS

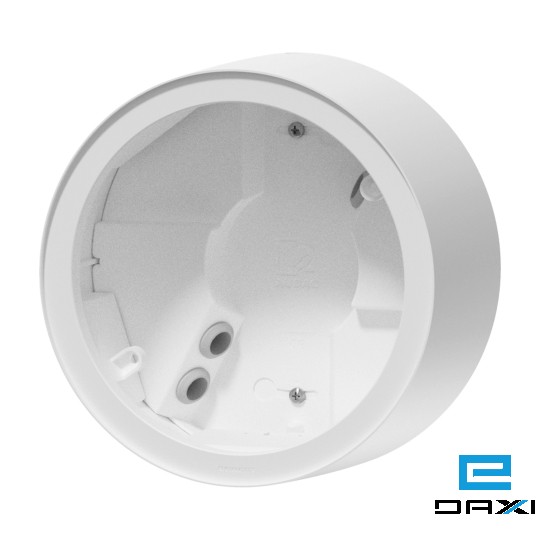

Mounting: Wall/Ceiling mounting (two screw holes)

CSK100 ceiling suspension kit (optional)

Colours: White (RAL9003) (NELO706/W)

Black (RAL9005) (NELO706/B)

Dimensions: 206.5 x 95 mm (Ø x D)

Operating temperature: -25 °C ~ 70 °C

Recommended applications

Residential

Retail

Hotels

Corporate
