System

Main Processor: 32-bit RISC Master

Operating system: Real Time Operating System

Image sensor

Sensor: CMOS sensor 1/3"

Pixel: 2560*1440

Minimum illumination: 0.1LUX/F1.2

Len

Lens parameters: Focal length: 4mm, viewing angle 110°

Battery

Specification: 2*2000mA Batteries type

Standby time: About1 month(when raining)

Standby current: Less than 1mA

Charge Current: less than 120mA

Wake up time: About 3000times (4000mA batteries,under the solar non-charging)

Charge Type: Type C, 5V

Charge Way: Solar pannel, Power supply, Mobile power(DC 5V）

Video

Resolution: (2560*1440)1440P, (1920*1080)1080P, (1280*720)720P, (640*360)360P

Compression format: H.264

Frame frequency: 15 fps

Exposure: Auto exposure white balance

WDR: Digital WDR

IR-Cut: No color cast during the day, good night vision

Zoom: App supports 3x digital zoom

Fill light

Infrared mode: Infrared night vision

White mode: White light on, brightness adjustable, full color night vision

Night Vision

Infrared mode: Support

White light mode: Support

Alarm mode: Support, At night supports PIR motion detect turn on the white light

Audio

protocol: G711U

Function: Built-in microphone and speaker,support monitoring and intercom

4G

LTE-FDD frequency band B1/B3/B5/B7/B8/B20/B28

LTE-TDD frequency band B38/B40/B41

Supports Asia, Africa, Europe, please refer to the frequency band for details

Distribution mode: No need to configure the network, just plug in the card and use it

Alarm

Alarm: Human body induction alarm(PIR)

Alarm notification: Alarm by phone notification

PTZ

Support: Pan:355°, Tilt: 90°

PIR

Default start time 19:00 ~ 8:00 (user can set)

APP

Support（SriHome）: Support Android and iOS

Storage

TF card: Support up to 128G TF card storage

Record standard: VGA/HD

Record mode: Alarm recording/All day recording/Timing recording

Playback: Support remotely video playback

Privacy Protection

Privacy Protection: The system defaults that the first added user is the administrator, and other users need to be authorized to access

Privacy Block: Support 4 optional private area, increase privacy protection

Other

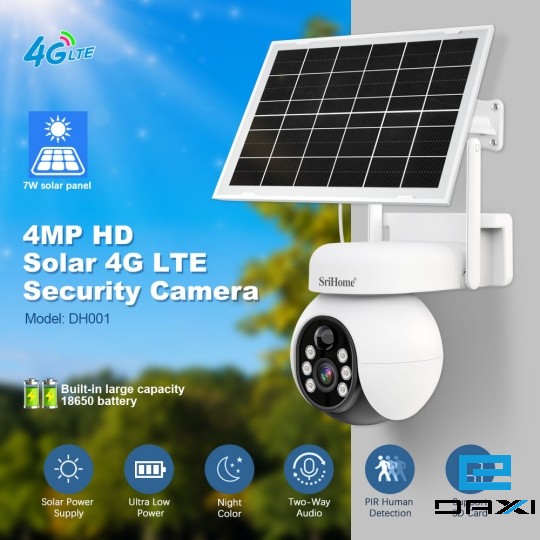

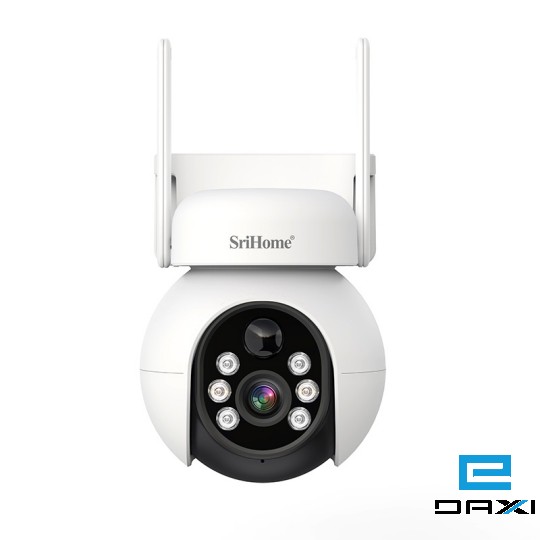

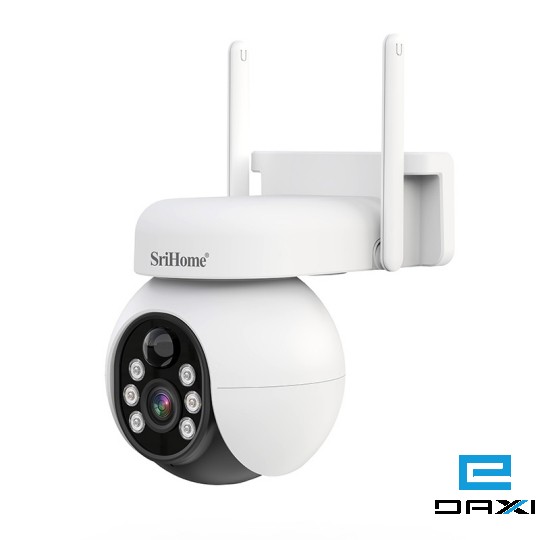

Product type: Battery camera

Power interface: Type C DC5V

Battery specification: 18650 Battery Pack 4000mA (built-in)

Working temperature: Minus 10℃ ~50℃

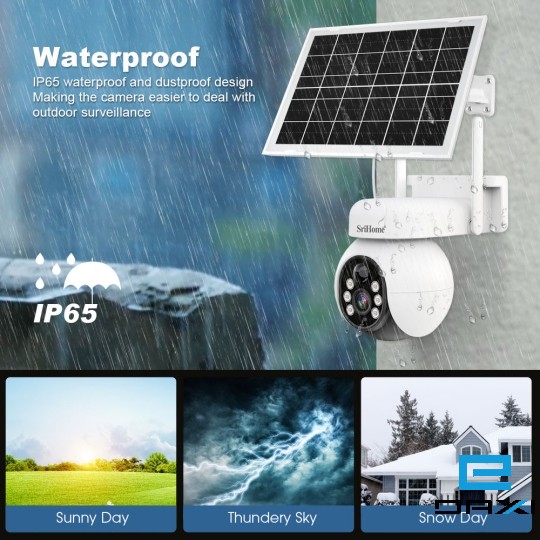

Waterproof degree: IP65

Working humidity: 10%－90% RH

Working power consumption: 1.5~5W(Daytime 1.5W)

Standby power consumption:

Product size: 150mm*137nn*105mm（L*W*H）

Color box size: 241mm*176mm*130mm（L*W*H）

Weight: Net Weight 430G, Gross Weight:1250G

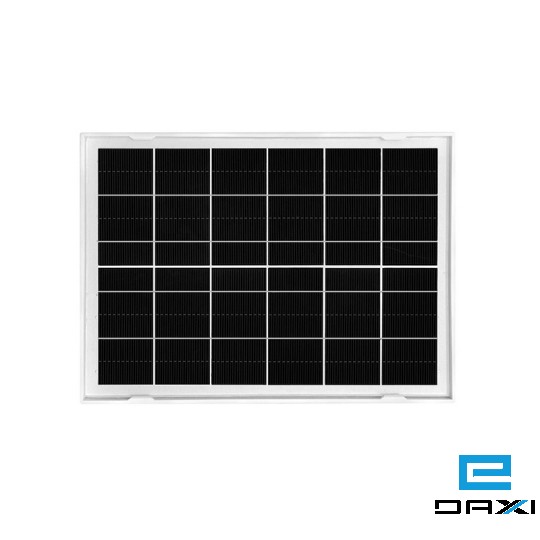

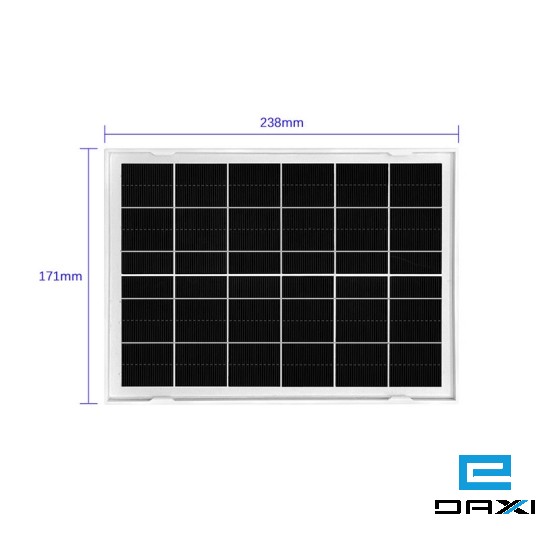

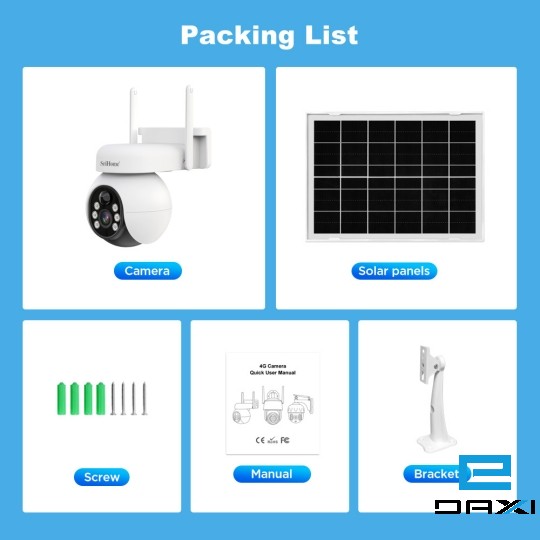

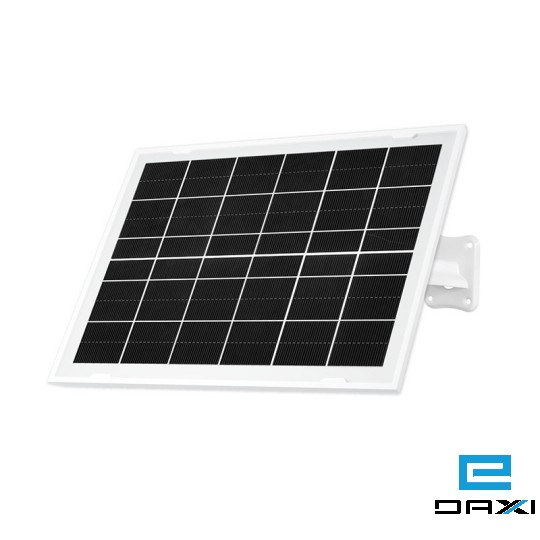

Accessories: 1*USB cable, 1*Bracket, 1*Instruction manual, Wooden screw (including installation screwdriver), 1*Card pick pin, 1*3W Solar pannel

Certification

CE, FCC, RoHS
