Specifications:

• Max. Power: 20 W

• RMS Power: 10 W

• Sound Pressure (Max. W/1m): @ 100 V 103 dB

• Sensitivity (1W/1m): 93 dB

• Speaker type: Broadband

• Connection: SnapConnect™

• Impedance: 8 Ω (CENA506), 16 Ω (CENA510D)

• Frequency Response (± 3 dB): 100 Hz - 15 kHz

• Range (-10 dB): 80 Hz - 18 kHz

• Line Transformer Tappings: 1 - 6 W / 1667 Ω, 2 - 3 W / 3333 Ω

• Dispersion Conical: 155°

• Connection: Screw terminal

• Drivers: 5” Full Range

• Cut-out measurement: 150 mm (Ø)

• Dimensions: 180 x 60 mm (Ø x D)

• Construction: ABS

• Front finish: borderless finely perforated steel grill

• Built-in depth: 57 mm

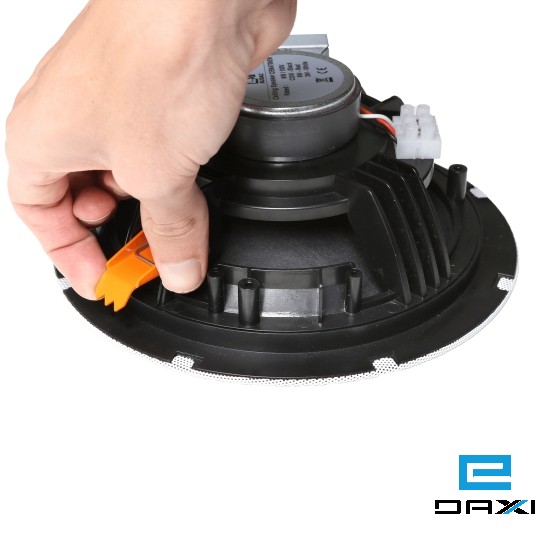

• Mounting: SpringFit™ mounting system

• Colours: White (RAL9003) (CENA506/W)

• Black: (RAL9005) (CENA506/B)

• Operating temperature: -15 °C ~ 55 °C

• Weight: 0.66 kg
