Motherboard

CPU

Intel Bay Trail CPU Celeron Quad core J900 2.0GHz

chipset

CPU Integrated

System Memory

1x DDR3 SO-DIMM up to 8GB (default 2GB)

Storage

16G / 32G / 64G SSD or 320G HDD /500G HDD (default 32GB SSD)

LAN

RealTek 8111E Gigabit Ethernet

Audio

RealTek ALC661 HD audio decode

LCD touch panel

LCD size

15’’

Touch screen

5-wire resisitve touch screen,USB interface

Resolution

XGA 1024*768

Brightness

250cd /Square M

Response

10ms

Tilting Angle

0-90 degrees

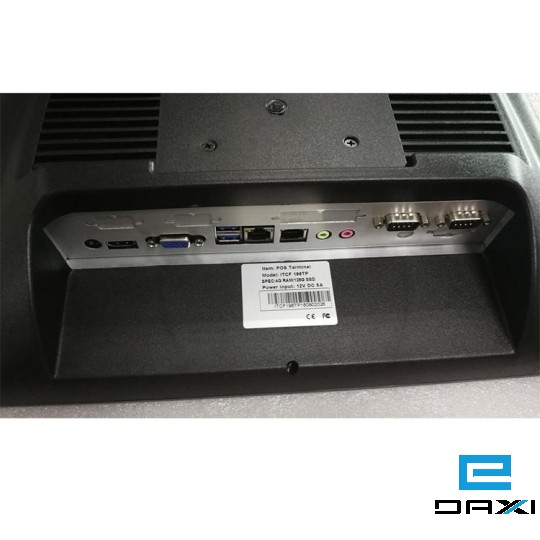

External I/O ports

PS/2 port

1*PS/2 keybaord,1*PS/2 Mouse

Serial ports

1*DB9 (COM1,COM2) DC5V/12V jumper optional on PIN1

USB

1*USB 3.0 6 *USB 2.0

Ethernet

1*RJ45 10/100/1000Mbps

VGA

1*DB15 2nd display VGA connector

Audio

1*line out 1*Mic in

Parallel port

1*25DB Parallel

DC port

1*12V/5A DC input for pos power source

Environmental

Relative Humidity

20~80 Non-condensing

Operating Temperature

0 ℃ to 40℃

Electrical(external power adptor)

input

100V-240V,50-60HZ 1.5A

output

DC 12V/5A

Mechanical

Color

black

Packing dimension

440*270*425mm

Package: carton box with Foam packaging

NW:6.5KG GW:8KG

Optional Accessories

Customer display(VFD or LCD), MSR ,WIFI
