Mechanical

Dimensions

353 x 46 x 34.4 mm (13.9 x 1.8 x 1.4")

Weight

152 g (5.4 oz)

Hardware

Networking interface

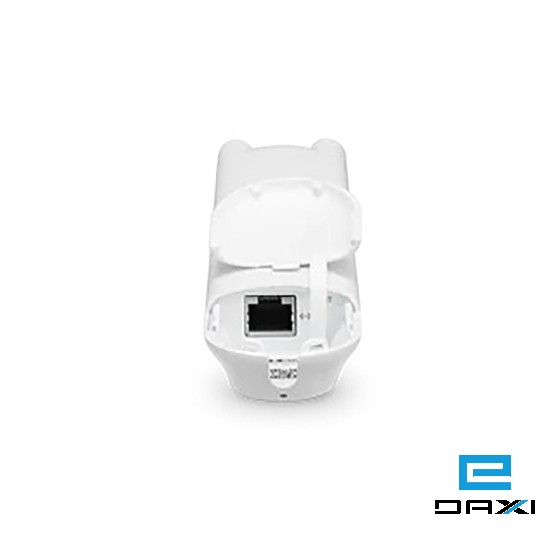

(1) GbE RJ45 port

Management interface

Ethernet
Bluetooth

Power method

PoE
Passive PoE, 24V (Pairs 4, 5+; 7, 8 return)

Power supply

Gigabit PoE adapter 24V, 0.5A*
*5-packs do not come with PoE adapters.

Supported voltage range

44—57V DC

Max. power consumption

8.5W

Max. TX power
2.4 GHz
5 GHz
6 GHz

20 dBm
20 dBm
–

MIMO
2.4 GHz
5 GHz
6 GHz

2 x 2
2 x 2
–

Throughput rate
2.4 GHz
5 GHz
6 GHz

300 Mbps
867 Mbps
–

Antenna gain
2.4 GHz
5 GHz
6 GHz

3 dBi
4 dBi
–

Button

Factory reset

Mounting

Wall, pole, fast-mount (Included)

Ambient operating temperature

-30 to 70° C (-22 to 158° F)

Ambient operating humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC, UKCA

Software

WiFi standards

802.11a/b/g/n/ac

Wireless security

WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

VLAN

802.1Q

BSSID

Up to 4 per radio

Advanced QoS

Per-user rate limiting

Guest traffic isolation

Supported

Power save

Supported

WMM

Voice, video, best effort, and background

Concurrent clients

250+

Supported Data Rates (Mbps)

802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b

1, 2, 5.5, 11 Mbps

802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n

6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11ac

6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
