Product Parameter | Parameter Description |
S4A Model No. | EL-350LS |

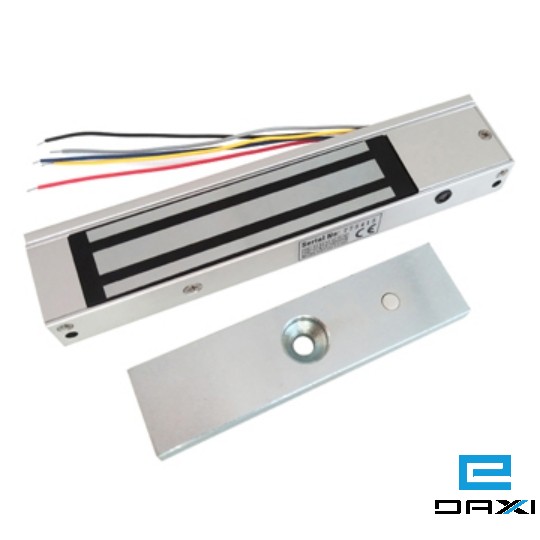

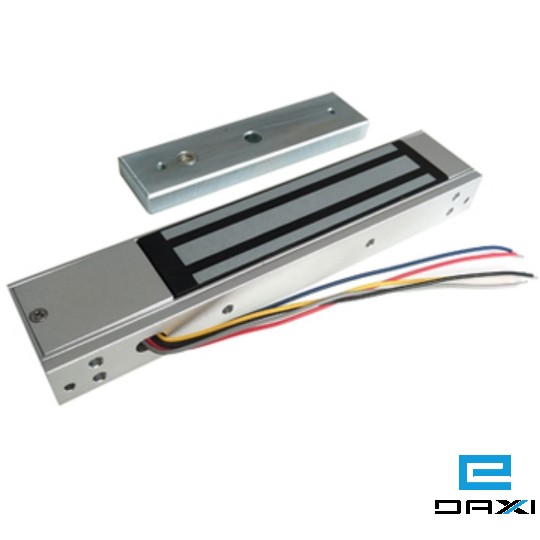

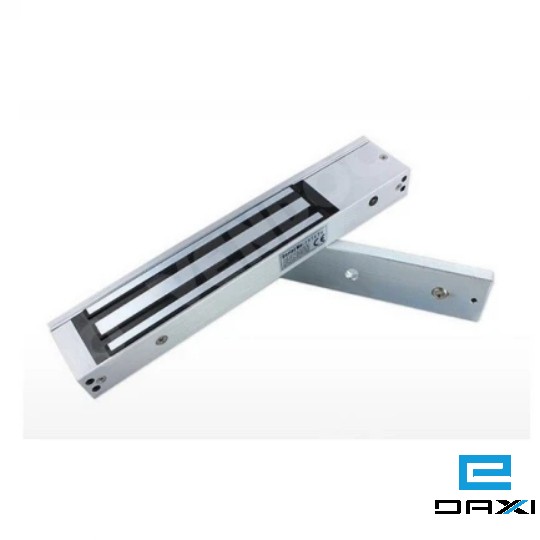

Product Name | 180KG Single Door Magnetic Lock with LED |
| |
Lock Size | 200Lx41.7Wx21.7H(mm) |
Armature Plate Dimension | 130Lx33Wx10.5H(mm) |
Holding Force | 180KG(350LBS) |
Input Voltage | DC12V & DC24V |
Current | 12V/400mA(±10%);24V/200mA(±10%) |
Suitable | Wooden door , Glass door ,Metal door , Fireproof door |
Surface Temp | ≤+20℃ |
Operating Temp | -20℃~+55℃(-4—131°F) |
Humidity | 0~90%(non-condensing) |
Cover Finish | Anodized aluminum |
Lock Finish | Zinc |
Armature Plate Finish | Zinc |
| |
Unit Weight | 1.2KG |
Standard Package | 20PCS/carton |
Carton Weight | 24KG |
Carton Size | 34.5*28*26(cm) |
