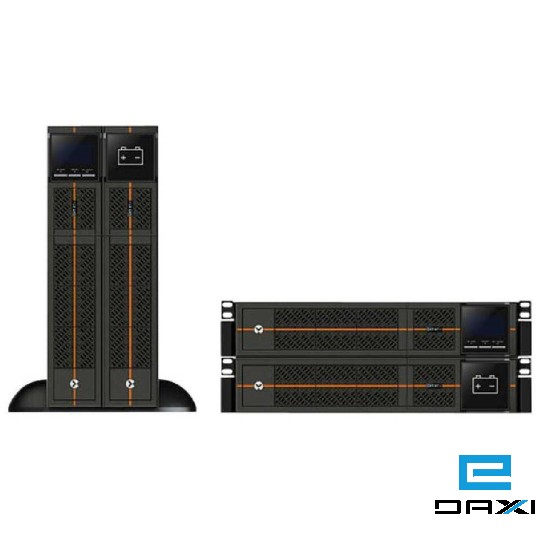

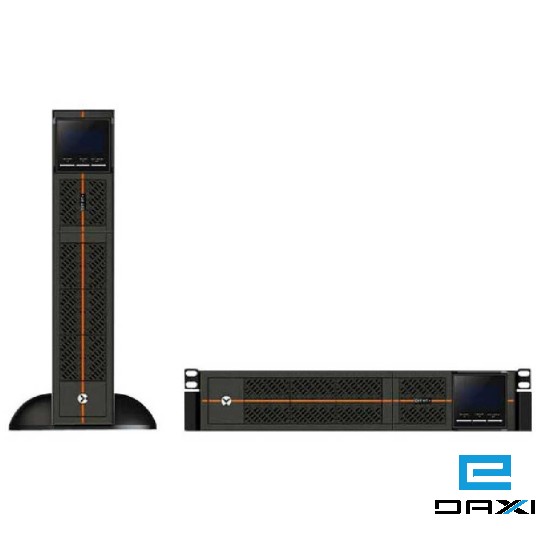

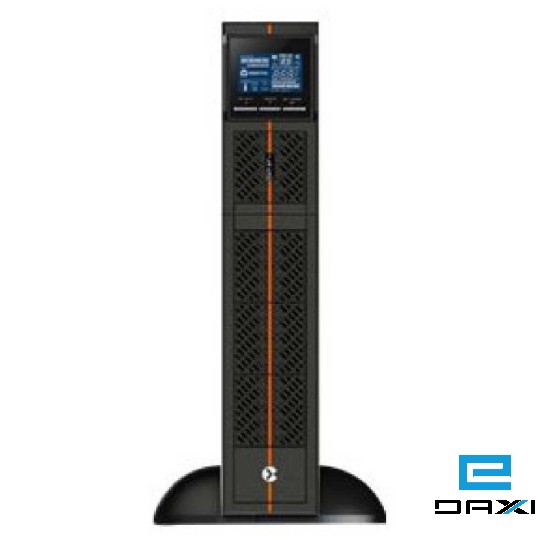

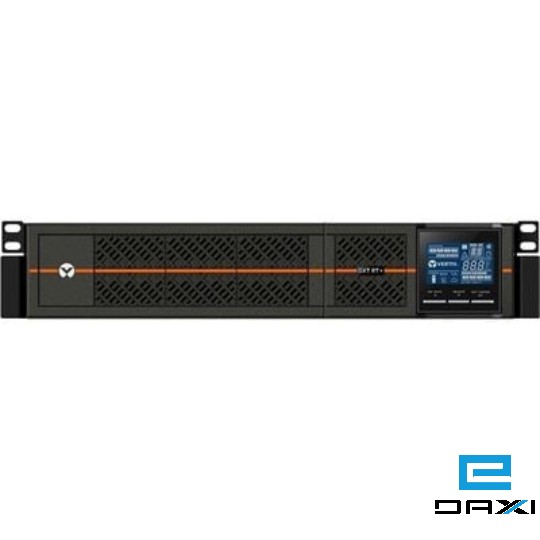

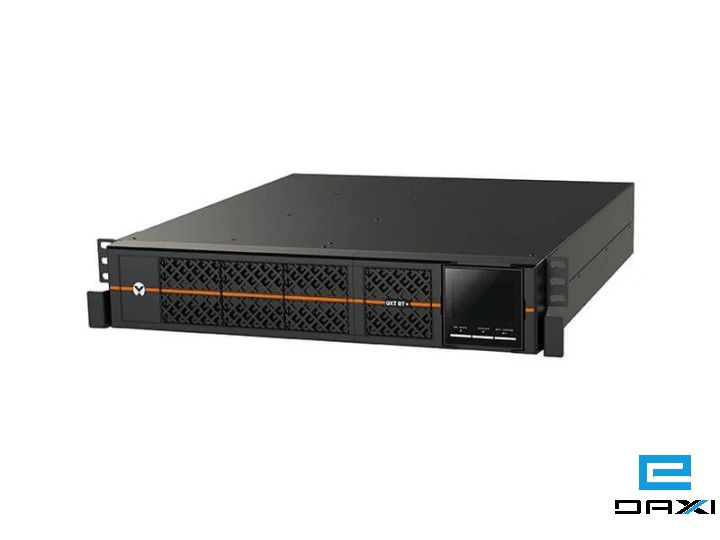

Product description Vertiv GXTRT-3000IRT2UXL 2700V UPS

Specifications:

Features:
- UPS topology : Double-conversion (Online)
- Output power capacity : 3 kVA
- Output power : 2700 W
- Waveform : Pure sine
- Input operation voltage (min) : 179 V
- Input operation voltage (max) : 288 V
- Input frequency : 40 - 70 Hz
- Output operation voltage (max): 240 V
- Output frequency: 50/60 Hz
- Output voltage regulation: 1%
- Number of input phases: 1
- Number of output phases: 1
- Efficiency: 90%
- Efficiency (On-line mode): 90%
- Power factor: 0.9
- Input power factor: 0.9
- Output power factor: 0.9
- Emergency Power Off (EPO): No
- Noise leve: l55 dB
- Power protection features: Overload
- Audible alarm(s): Yes

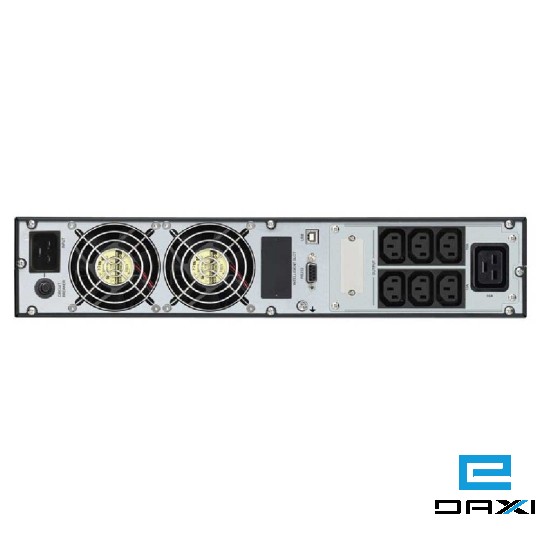

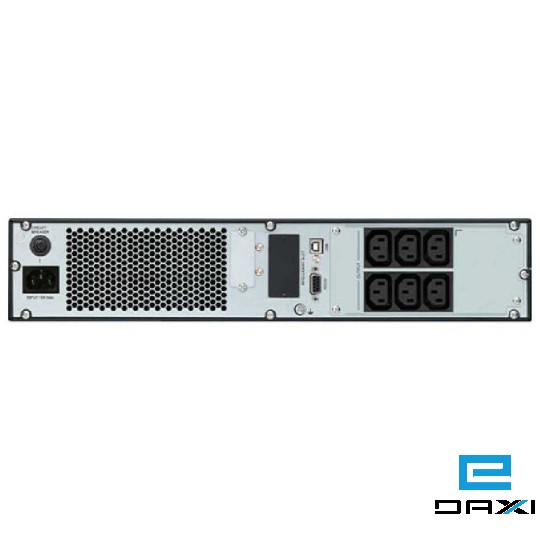

Ports & interfaces:
- AC outlet types: C13 coupler, C19 coupler
- Power plug: C14 coupler
- AC outlets quantity: 7 AC outlet(s)
- USB port: Yes
- Serial ports quantity: 1

Battery:
- Battery technology: Sealed Lead Acid (VRLA)
- Battery capacity: 9 Ah
- Battery voltage: 12 V

Battery:
- Number of batteries supported: 6
- Typical backup time at full load: 3.3 min
- Typical backup time at half load1: 1 min
- Hot-swap battery: Yes

Design:
- Form factor : Rackmount
- Rack capacity: 2U
- Display: LCD
- Safety: CE
- Certification: CE Mark; IEC/EN 62040-1: 2014, IEC/EN 62040-2:2006+AC:2006 Class A, EN 61000-4-5: 2005 Class 2 L-N, Class 3 L-G, ISTA 2A

Operational conditions:
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 50 °C
- Operating relative humidity (H-H): 20 - 95%
- Storage relative humidity (H-H): 10 - 90%
- Operating altitude: 0 - 2000 m

Technical details:
- Sustainability certificates: RoHS

Weight & dimensions:
- Width:438 mm
- Depth:632 mm
- Height:88 mm
- Weight:27.6 kg

Packaging data:
- Package width:760 mm
- Package depth:240 mm
- Package height:600 mm
- Package weight:31.2 kg
