system

Main processor: multi-core high-speed processor

Sensor: 1/3 inch, 5 million pixels

Compression format: H.265

lens

Lens parameters: Focus: 4mm, 5 million pixels

Viewing angle: Field of view: D 110 H 80 V 58

video

Resolution: 1920P(2560*1920), VGA(480*360)

Frame frequency: 15 frames

Auto Exposure: Auto Exposure White Balance

IR-Cut: Built-in IR-Cut, no color cast indoors and outdoors, good night vision effect

Electronic amplification: 3 times electronic amplification

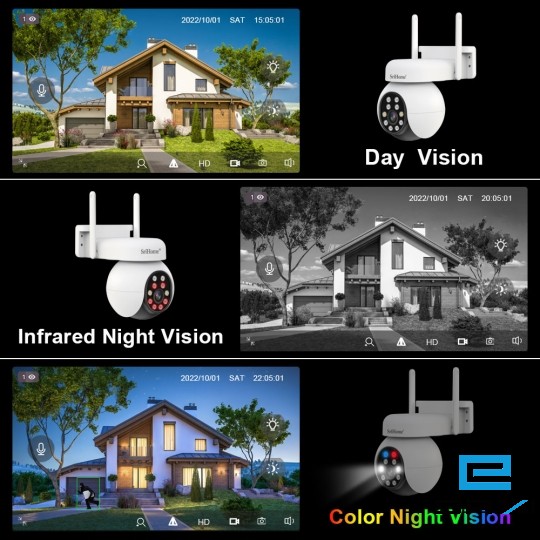

Lighting settings

Alarm mode: Default is black and white night vision, trigger mobile alarm, automatically turn on white light, switch to full color night vision

White light mode: The white light will be on during this time period from 17:00 to 8:00, the brightness is adjustable, and the night vision is full color

Infrared mode: Turn off the white light and switch to normal night vision

Audio

Built-in microphone, supports monitoring and intercom

PTZ

Tracking: supports humanoid tracking

Rotation angle: horizontal: 300°, vertical: 90°

Call the police

Alarm: motion detection alarm, humanoid alarm (motion detection needs to be turned on at the same time)

Alarm notification: mobile phone push notification

Advanced area detection: supports customized motion detection alarm areas to improve alarm accuracy

Sirens, warning lights: supported

privacy protection

Advanced rights management: The first user added by the system is the administrator by default, and other users must be authorized to access

Advanced privacy area: supports 4 optional area masking to increase privacy protection

network

Remote access: P2P

Wireless: 2.4G (11bng), supports WEP, WPA, WPA2 encryption methods

Network distribution mode: 1: QR code network distribution, 2: AP hotspot network distribution

AP hotspot: Connect through AP hotspot and monitor without network

Protocol: Support RTSP/DHCP/DDNS/UPnP/Onvif

other

Product type: Plastic ball machine, indoor and outdoor use

Protection level: IP66

Power adapter: input AC: 100~240V, output DC: 12V/0.5A

Working temperature: -10°C ~50°C

Working humidity: 10%~90% RH

Weight: Net weight: 400g Gross weight: 600g (Note: The actual product shall prevail)

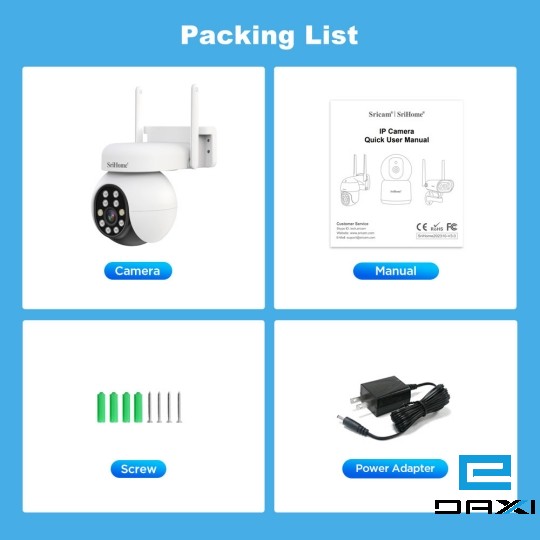

Accessories: 1. Power adapter, 2. Instruction manual, 3. Screw bag 4. Card removal pin

size

Body size: 150* 137 *105 mm (length x width x height)

Packaging size: 175*157*115mm (length x width x height)

Certification

CE, FCC , RoHS
