სამეთვალყურეო კამერა, 2MP IP 2.8mm, Hikvision DS-2CD2421G0-I, Cube, Fix, IR10m, TwoWayAudio, Indoor

(0 შეფასება)
გამყიდველი Daxi

ფასი
213.00 ₾ /ცალი
რაოდენობა
(0 ხელმისაწვდომი)
ჯამური ფასი
გაზიარება

Reviews & Ratings

0 out of 5.0
(0 შეფასება)
მიმოხილვები არ მოიძებნა.

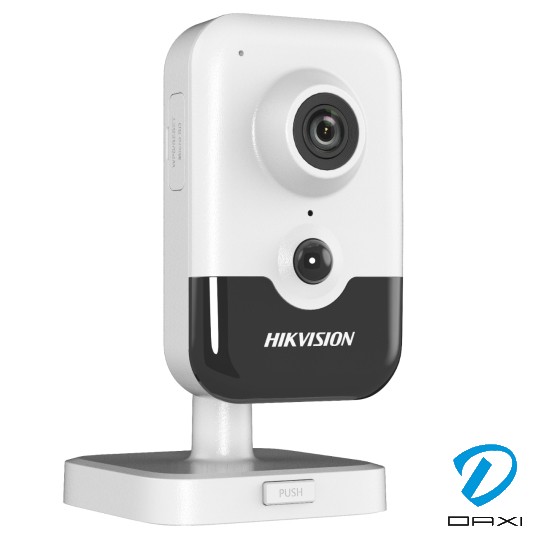

2 MP Indoor Audio Fixed PIR Cube Network Camera

  • High quality imaging with 2 MP resolution
  • Efficient H.265+ compression technology
  • Provides real-time security via built-in two-way audio
  • Detects human body through passive infrared is sensitive to body temperature (PIR)
  • -W: Wi-Fi connection
  • -D: DC power supply



  • Camera
  • Image Sensor1/2.7" Progressive Scan CMOS
  • Min. IlluminationColor: 0.028 Lux @ (F2.0, AGC ON)
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Day &NightIR Cut Filter
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
  • WDRDWDR
  • Lens
  • Lens2 mm/2.8 mm/4 mm
  • ApertureF2.0
  • FOV
  • 2 mm: horizontal FOV: 132°, vertical FOV: 77°, diagonal FOV: 153°

    2.8 mm: horizontal FOV: 107°, vertical FOV: 57°, diagonal FOV: 126°

    4 mm: horizontal FOV: 85°, vertical FOV: 45°, diagonal FOV: 101°

  • Lens MountM12
  • Illuminator
  • IR RangeUp to 10 m
  • Wavelength850 nm
  • Video
  • Max. Resolution1920 × 1080
  • Main Stream
  • 50Hz: 25 fps (1920 × 1080, 1280 × 720)

    60Hz: 30 fps (1920 × 1080, 1280 × 720)

  • Sub Stream
  • 50Hz: 25 fps (640 × 360)

    60Hz: 30 fps (640 × 360)

  • Video Compression
  • Main stream: H.265+/H.264+/H.265/H.264

    Sub-stream: H.265/H.264/MJPEG

  • H.264 TypeBaseline Profile/Main Profile
  • H.265 TypeMain Profile
  • Video Bit Rate32 Kbps to 8 Mbps
  • Audio
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
  • Environment Noise FilteringYes
  • Audio Sampling Rate8 kHz/16 kHz
  • Smart Feature-Set
  • Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection
  • Linkage MethodUpload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, audible warning
  • Image
  • Image EnhancementBLC, HLC, 3D DNR
  • Image SettingSaturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
  • Day/Night SwitchDay/Night/Auto/Schedule
  • Wi-Fi
  • ProtocolIEEE802.11b, 802.11g, 802.11n
  • Frequency2.4 GHz - 2.4835 GHz
  • Channel Bandwidth20/40MHz Support
  • Modulation
  • 802.11b: DSSS

    802.11g: OFDM

    802.11n (20 MHz & 40 MHz): OFDM

  • Security64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK
  • Transfer Rate
  • 11b: 11 Mbps

    11g: 54 Mbps

    11n: up to 150 Mbps

  • Wireless Range50 meters (The performance varies based on actual environment.)
  • Network
  • Network StoragemicroSD/SDHC/SDXC card (256 GB) local storage, ANR and NAS (NFS, SMB/CIFS)
  • ProtocolsTCP/IP, ICMP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, IPv6, UDP, QoS, Bonjour
  • APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
  • SecurityPassword protection, complicated password, IP address filter, Watermark, HTTPS encryption, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, 802.1X authentication (EAP-MD5)
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users, 3 levels: administrator, operator and user
  • ClientiVMS-4200, Hik-Connect, iVMS-4500, iVMS-5200
  • Web Browser

IE8+, Chrome 31.0-44, Firefox30.0-51, Safari8.0+

  • Interface
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Audio1 input (built-in microphone), 1 output (built-in speaker)
  • On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
  • ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • ProtectionIngress protection: IP66 (IEC 60529-2013), IK10 (IEC 62262:2002)
  • General
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, flash log
  • ResetReset via reset button on camera body, web browser and client software
  • Startup And Operating Conditions-10 °C to 40°C (14 °F to 104 °F), humidity 95% or less (non-condensing)
  • Storage Conditions -10 °C to 40°C (14 °F to 104 °F), humidity 95% or less (non-condensing)
  • Power Supply
  • DS-2CD2421G0-IW:

    12 VDC ± 25%, Ø5.5 mm coaxial power plug; PoE (802.3af, class 3)

    DS-2CD2421G0-IDW:

    12 VDC ± 25%, Ø5.5 mm coaxial power plug

    DS-2CD2421G0-I:

    12 VDC ± 25%, Ø5.5 mm coaxial power plug; PoE (802.3af, class 3)

  • Power Consumption And Current
  • DS-2CD2421G0-IW:

    12 VDC, 0.54 A, max. 6.5 W

    PoE (802.3af, 36 V to 57 V), 0.21 A to 0.13 A, max. 7.5 W

    DS-2CD2421G0-IDW:

    12 VDC, 0.54 A, max. 6.5 W

    DS-2CD2421G0-I:

    12 VDC, 0.42 A, max. 5 W

    PoE (802.3af, 36 V to 57 V), 0.17 A to 0.11 A, max. 6 W

  • MaterialPlastic

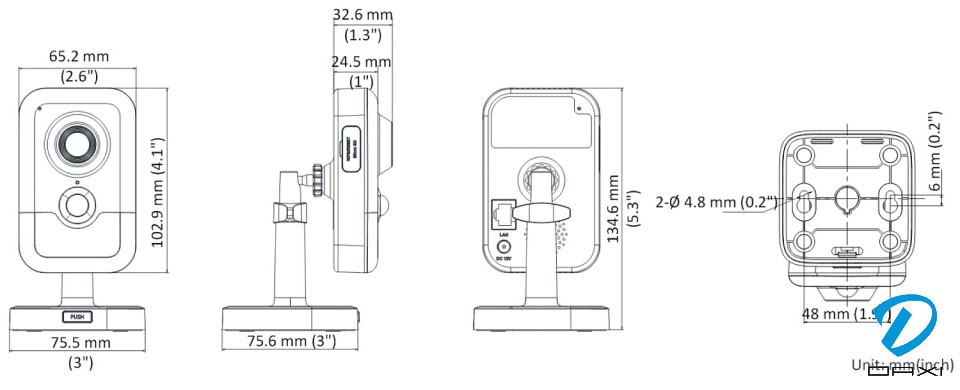

  • Dimensions
  • Camera: 102.9 × 65.2 × 32.6 mm (4'' × 2.6'' × 1.3'')

    With package: 150 × 125 × 99 mm (5.9'' × 4.9'' × 3.9'')

  • Camera: Approx. 120 g (0.3 lb.)

With package: Approx. 380 g (0.8 lb.)
