Sboard is a mini controller for single door, with Wiegand 26~37bits input, can connect with any Wiegand reader

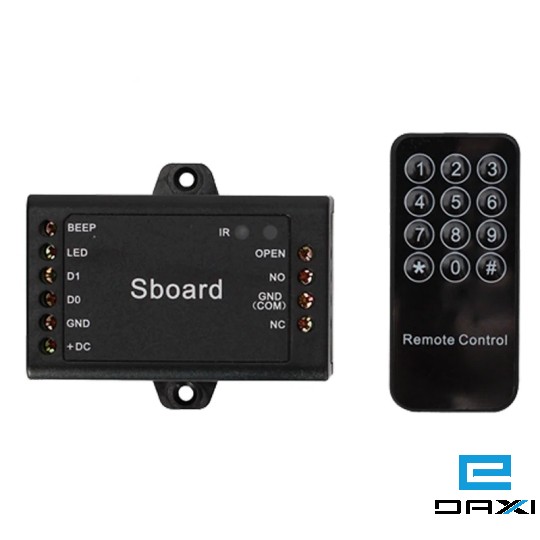

Mini Single Door Controller

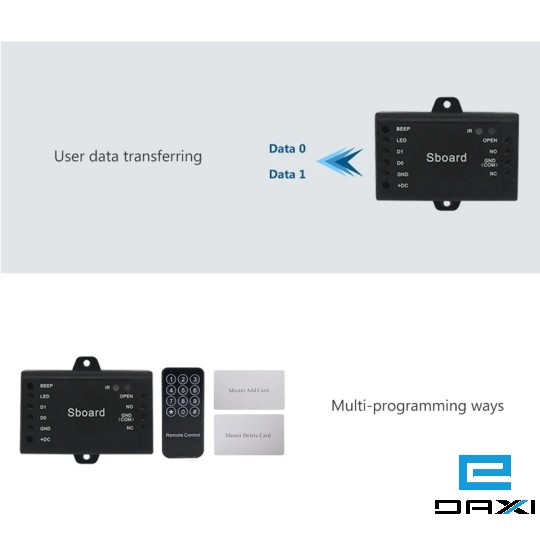

> 1,000 users,user data can be transferred

> Multi access modes: Card, Card or PIN, Card with PIN and multi Cards/PINs

> Can connect with any reader with Wiegand 26~37 bits output

> Can connect with any keypad reader with 4bits, 8bits (ASCII), or 10bits Virtual number output

Specifications:

User Capacity: 1,000

Operating Voltage: 9~24V DC

Idle Current: < 20mA

Relay: One (NO, NC, Common)

Adjustable Relay Output Time: 0~99 Seconds (5 seconds default)

Lock Output Load: 2 Amp Maximum

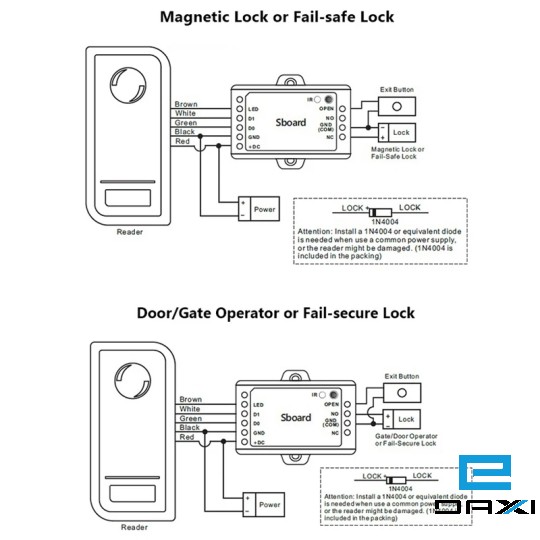

Wiegand Interface

Input

Output: Wiegand 26~37 bits

Wiegand 26~37 bits (for user transfer)

Environment: Indoor

Operating Humidity:0 ~ 90%RH

Physical: ABS Shell

Colour: Black

Dimensions: 6.5L x 5.4W x 1.9H (cm)

Weight: 100g
