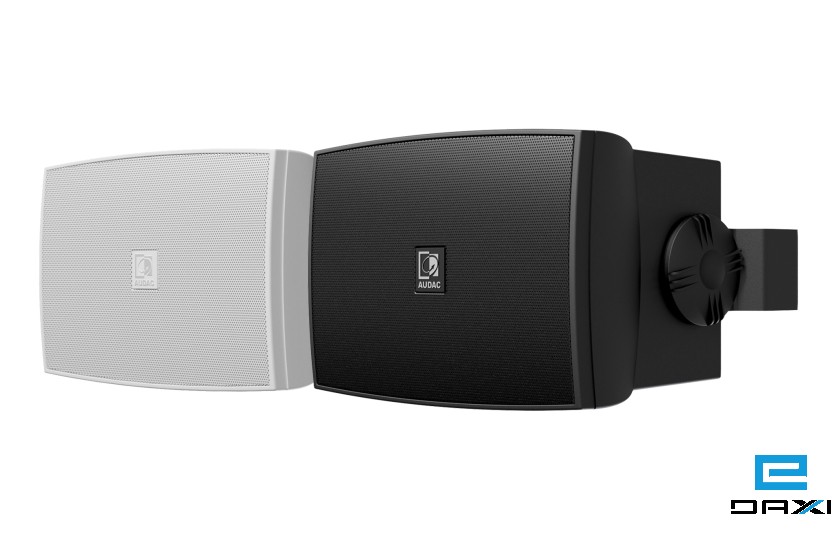

Available models

WX502MK2/OB: Outdoor black version

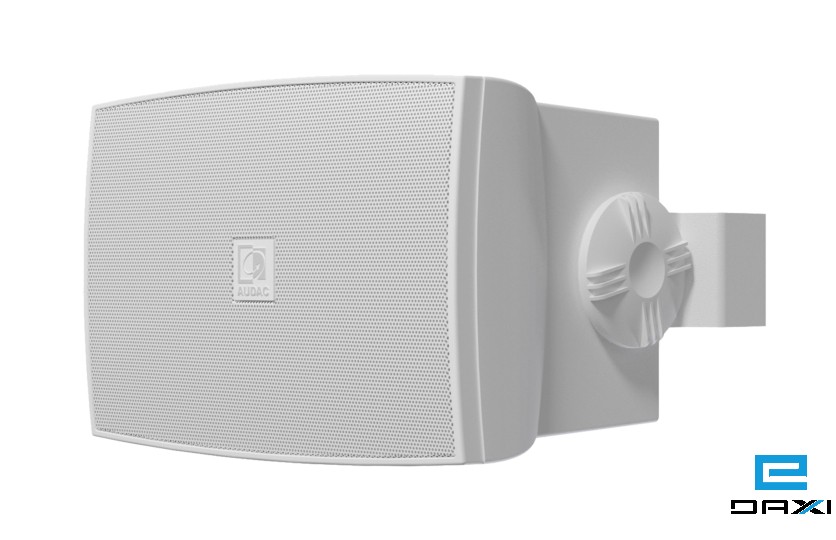

WX502MK2/OW: Outdoor white version

System specifications

Connectors: Waterproof AWX-5 connector

Crossover: Frequency 2.5 kHz

Type: Passive built-in

Drivers: HF 1”

LF: 5”

Frequency: Range (-10 dB) 55 Hz - 20 kHz

Response (± 3 dB): 70 Hz - 18 kHz

Impedance: 8 Ω

Ingress Protection rating: IP55

Peak power handling: 200 W

Program power handling: 100 W

Sensitivity (1W/1m): 87 dB

Sound Pressure (Max. W/1m): @ 100 V: 102 dB

@ 8 Ω: 104 dB

Speaker type: 2-way

Dispersion: Horizontal: 110°

RMS/AES power handling: 50 W

Dispersion: Vertical: 110°

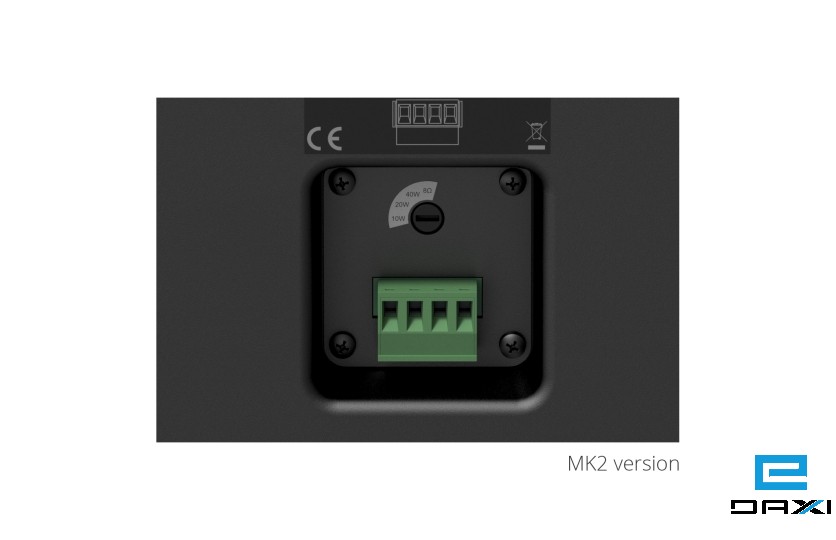

Line Transformer Tappings: 1: 125 Ω - 100 V / Not used - 70 V / 40 W

2: 250 Ω - 100 V / 40 W - 70 V / 20 W

3: 500 Ω - 100 V / 20 W - 70 V / 10 W

Product Features

Dimensions: 212 x 147 x 136 mm (W x H x D)

Weight: 2.540 kg

Operating temperature: -25 °C ~ 70 °C

Construction: ABS

Mounting & handling: Mounting bracket

Front finish: Aluminium grill

Colours: Black (RAL9005) (WX502MK2/OB)

White (RAL9003) (WX502MK2/OW)

Accessories: Included: Mounting bracket

5-pin connection cable (70 cm) AWC07

Optional: AWC07 - AWX5 cable 0.7 m

AWC25 - AWX25 cable 2.5 m

AWC50 - AWX50 cable 5 m

Recommended applications

Corporate

Retail

Museums & Themeparks

Sporting facilities

Bars & Restaurants
