Technical Spec

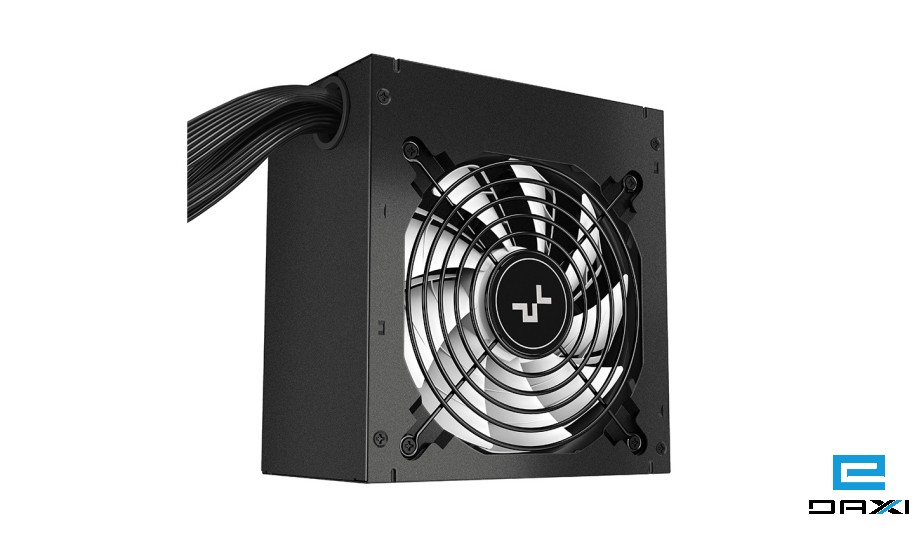

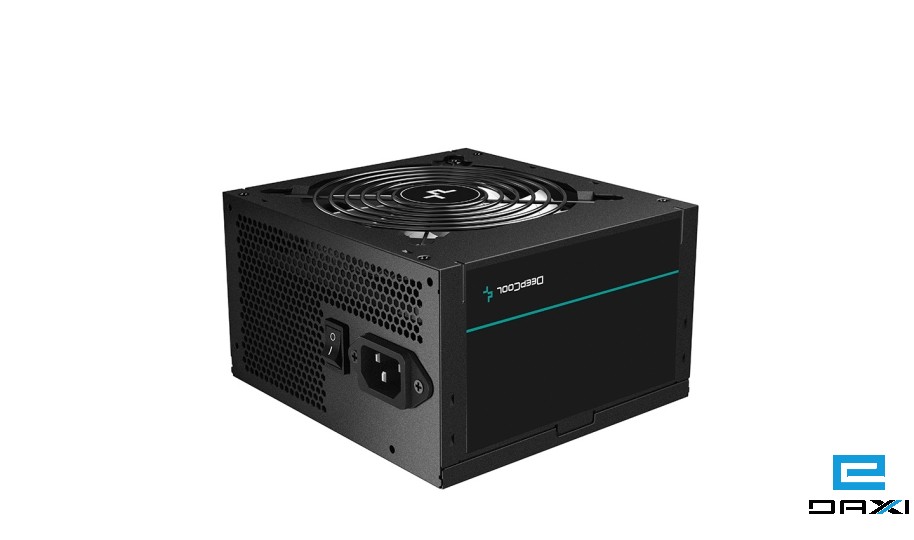

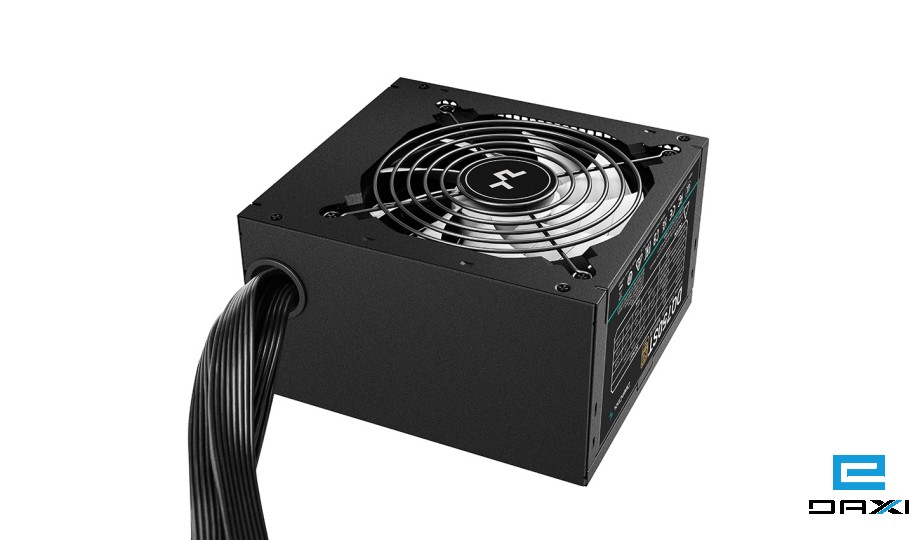

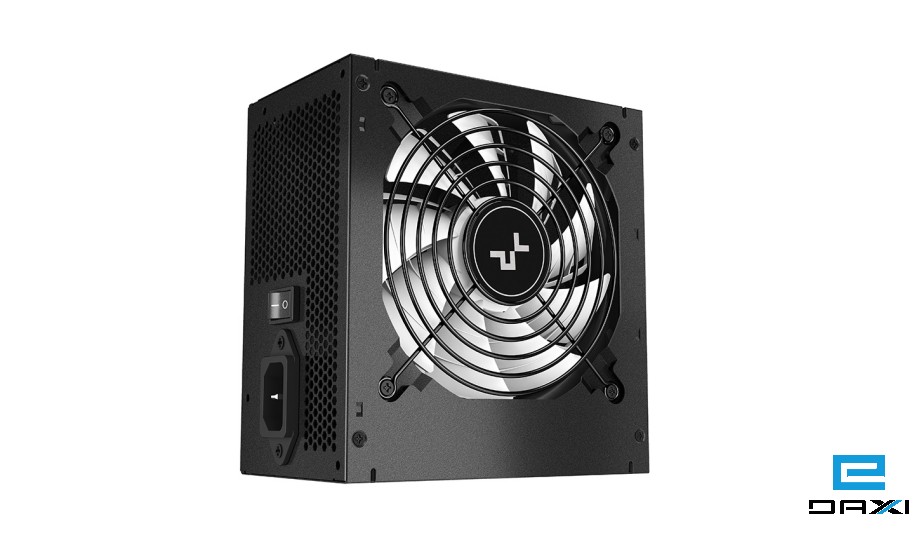

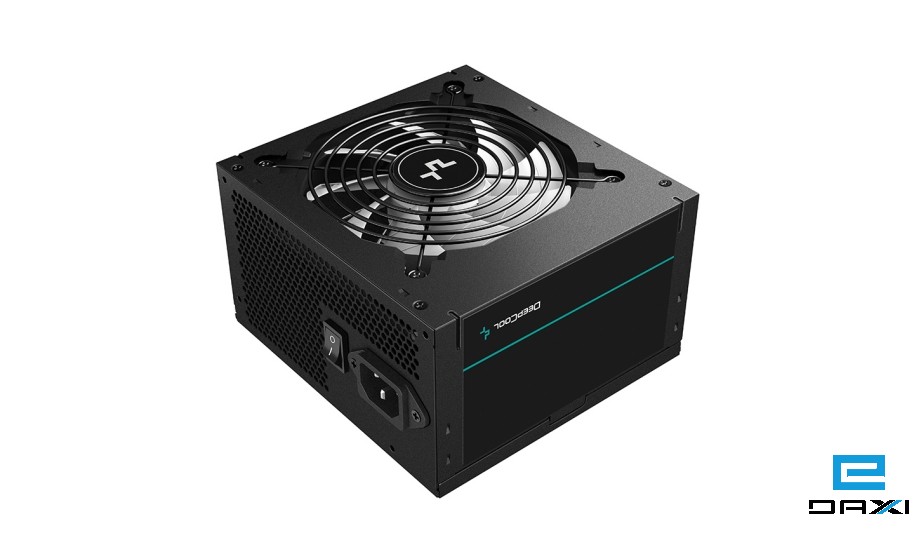

Model: DQ750ST

Type: ATX 12V V2.4

Certifications: 80PLUS GOLD

Dimension: 150×140×86mm (W x L x H)

Output Capacity: 750W

Input Voltage: 100~240V

Input Current: 10A/5A

Input Frequency Range: 47~63Hz

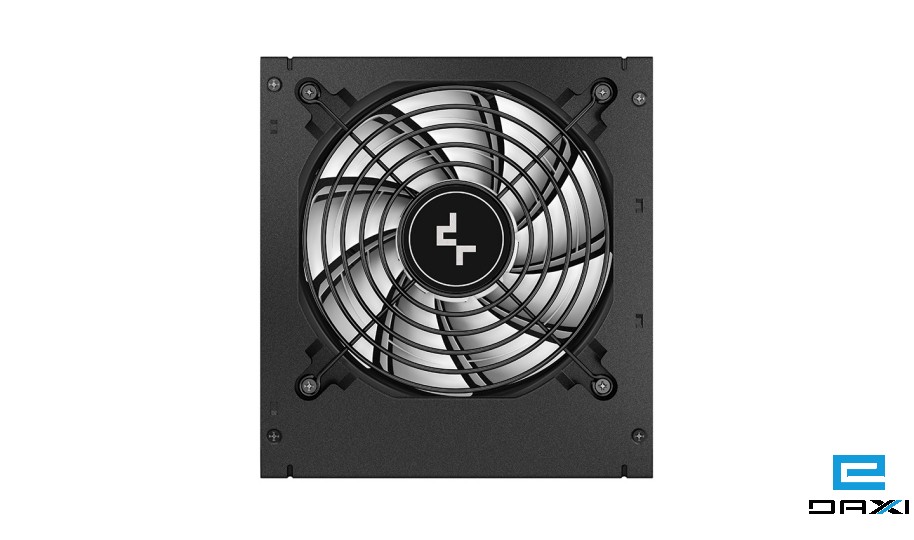

Fan Size: 120mm

PFC: Active PFC (>0.99)

Power Good Signal: 100-500ms

Hold Up Time: >16ms

Efficiency: 90% Under Typical Load

Protection: OVP / UVP / SCP / OPP

Operation Temperature: 0~40°C

Regulatory: CE / FCC / CCC / CB / EAC

MTBF: 120,000 Hours

EAN: 6,93E+12

P/N: DP-GD-DQ750ST
