Product code

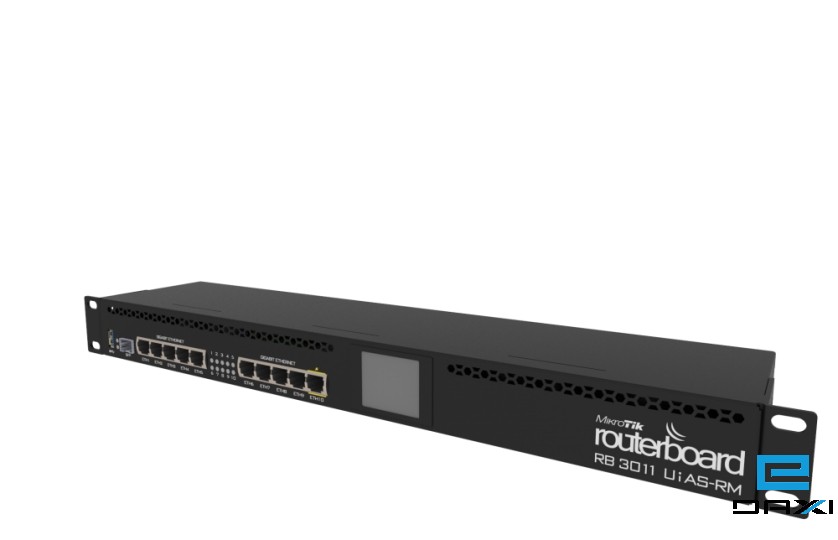

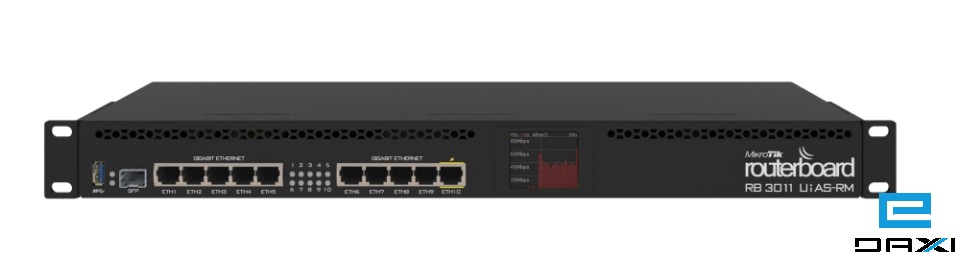

RB3011UiAS-RM

Architecture

ARM 32bit

CPU

IPQ-8064

CPU core count

2

CPU nominal frequency

1.4 GHz

Dimensions

443 x 92 x 44 mm

RouterOS license

5

Operating System

RouterOS

Size of RAM

1 GB

Storage size

128 MB

Storage type

NAND

MTBF

Approximately 200'000 hours at 25C

Tested ambient temperature

-20°C to 70°C

IPsec hardware acceleration

Yes

Suggested price

$179.00

Number of DC inputs

2 (DC jack, PoE-IN)

DC jack input Voltage

10-30 V

Max power consumption

30 W

Max power consumption without attachments

10 W

FAN count

Passive

PoE in

Passive PoE

PoE in input Voltage

10-30 V

PoE-out ports

Ether10

PoE out

Passive PoE

Max out per port output (input 18-30 V)

600 mA

Max total out (A)

600 mA

10/100/1000 Ethernet ports

10

SFP ports

1

Serial console port

RJ45

Number of USB ports

1

USB Power Reset

Yes

USB slot type

USB 3.0 type A

Max USB current (A)

1

PCB temperature monitor

Yes

Voltage Monitor

Yes

Certification

CE, EAC, ROHS

IP

IP20
