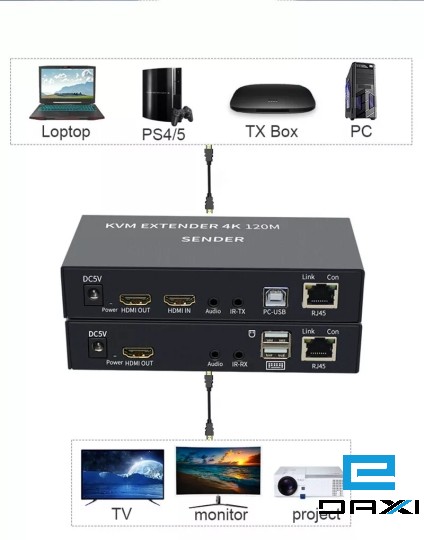

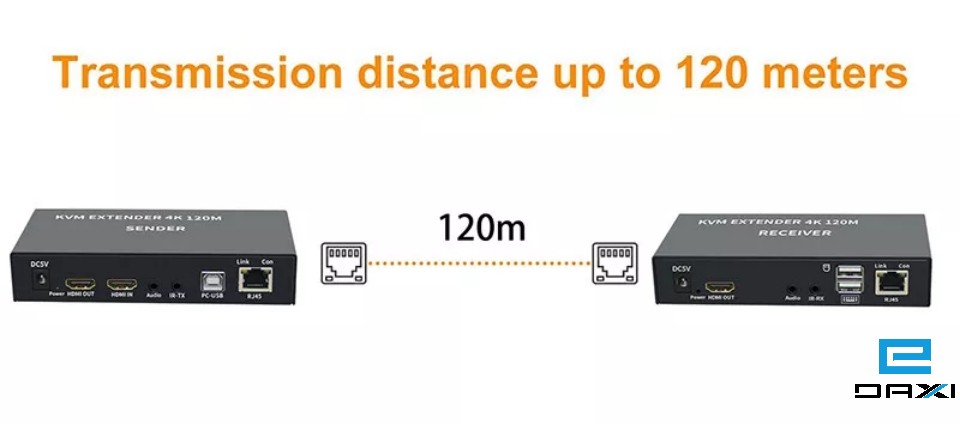

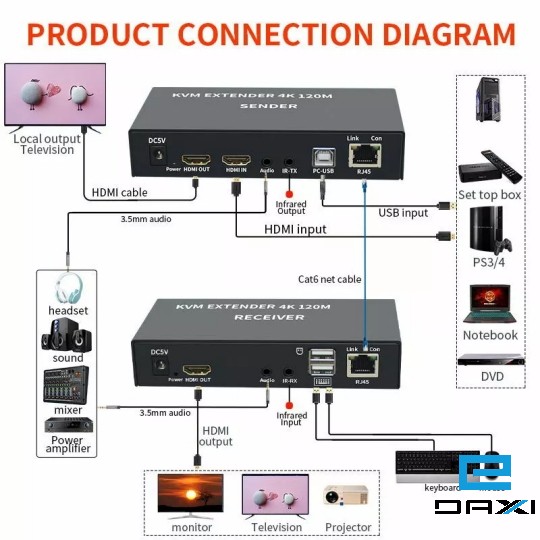

This Extender over CAT-6 uses one CAT-6 cable ( more than 5m) to extend the HDTV display up to 120 meters
It not only breaks the limitation of the HDMI cable transmission length, but also CAT-5e/6 has more flexibility and convenience in cable construction.
It offers solutions for residential consumers: HDTV retail and show site, HDTV,STB,DVD and projector factories,
space and security concerns, data center control, information distribution, conference room presentation,
school and corporate training environments.


2. FEATURES:
This Extender has many features that enable it to perform in superior manner, among those features
and you will find:

1. One pair as a full functional module, no need of setting.
2. CAT-5e/6 cable can substitute HDMI cable to achieve long distance transmission.
3. CAT-5e/6 follow the standard of IEEE-568B
4. HKE120-1.4 video resolution can be up to 4K*2K@30Hz (5- 120 meters CAT6 cable).
5. Compact size
6. Signaling rates up to 3.4Gbps in support of 4K*2K display.
7. HDCP compliant
8. Support uncompressed audio such as LPCM
9. Support compressed audio such as DTS Digital, Dolby Digital

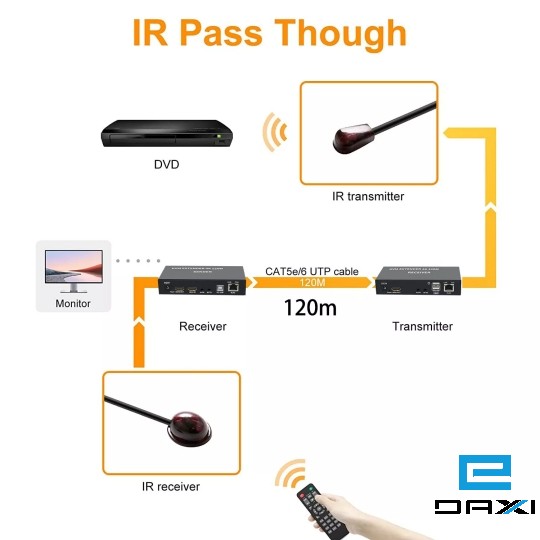

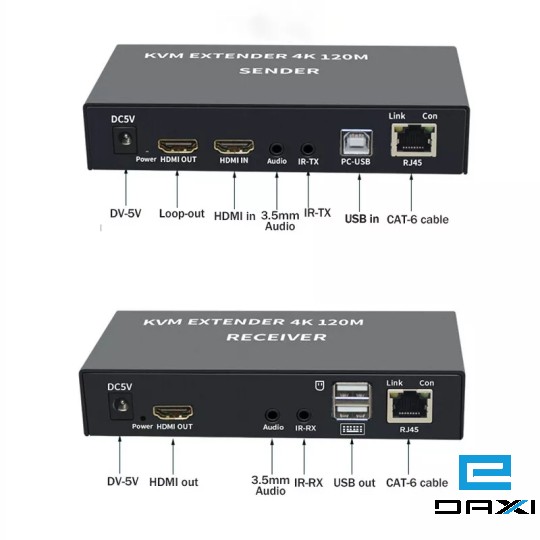

10. The sender with HDMI output, audio output and Ir output.
11. The Receiver with HDMI output, audio output and Ir input.

4.PACKAGE LIST :

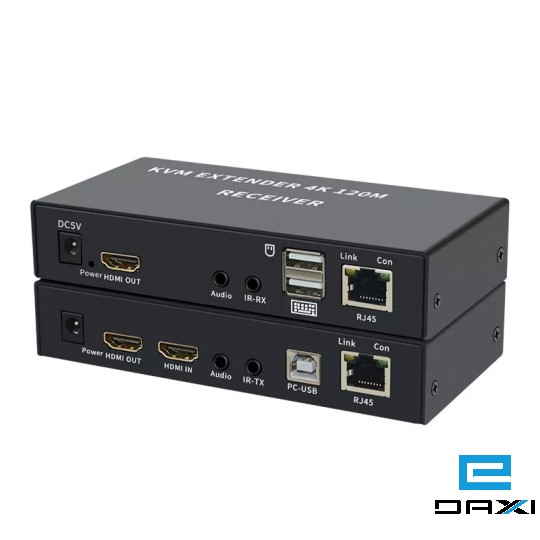

1 x 4K120M KVM Transmitter
1 x 4K120M KVM Receiver
2 x DC 5V 1A Power adapter
1 pair of IRcable
1 x User Manual
No retail box,if any need,pls contact us before purchase.
