FDD + TDD

Support FDD and TDD, meet the needs of various ISPs and provide a good user experience for customers. Support most cellular operators around the world.

VPN

The VPN runs a secure and private tunnel from Cudy to remote offices and teleworkers over the Internet.

Support: PPTP/L2TP

15+DDNS

Compatible with more than 15 DDNS providers that allow you to easily manage your router remotely. You can access the Cudy administration page with a common name in the URL even though the IP address changes.

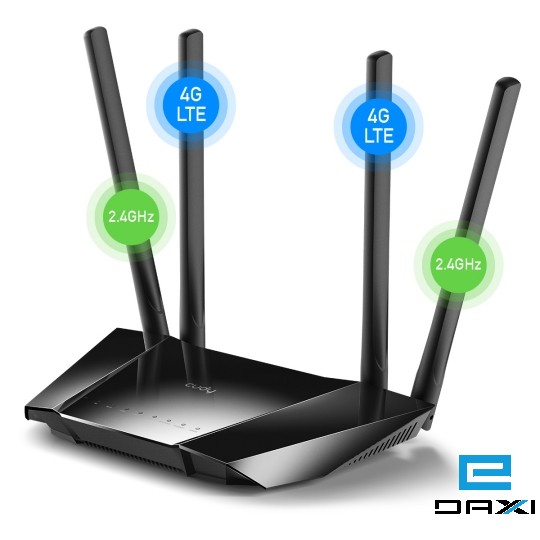

High Gain Antennas

High-gain antennas increase the sensitivity of the router, establish connections over longer distances. Provide strong penetration into walls.

Office Network

If you are working in LAN mode, LT400 is just a normal 4G LTE router. While working in WAN mode, the LT400 can maintain 4G and WAN connections at the same time and preferably provide the Internet via wired ports. The 4G network is just a backup.

Home Network

LT400 uses the latest generation of 4G LTE technology to achieve speeds of up to 150Mbps when downloading and 50Mbps when uploading. You can also connect to games, streaming and more using Wi-Fi at a maximum speed of 300Mbps to 2.4GHz.

Vacation Network

Insert the SIM card (switch on) and enjoy the Internet! It is very easy to use when you are on vacation. Take it to your holiday home and enjoy surfing online.

Model

300Mbps Wireless N 4G LTE Router

DRAM/FLASH

64MB DDR2/8M SPI

Interface

3 x RJ45 10M/100M LAN Ethernet interfaces

1 x RJ45 10M/100M WAN Ethernet interface

1 x Reset

1 x Power Jack (12V/1A)

1 x SIM card slot (Nano)

Antenna

2.4G (802.11N): 2T2R 4G: 2T2R

Gain

5dBi

Range

2.4-2.4835GHZ

LED

PWR, WIFI, 4G, LAN1-LAN3, WAN/LAN4

Transmit Power

11b: 1/2/5.5/11Mbps

11g: 6/9/12/18/24/36/48/54Mbps

11n: 300Mbps(MAX)

Spread-spectrum technique

DSSS

Wireless Security

WPA-PSK/WPA2-PSK, WPA/WPA2

Modulation type

11b: CCK, QPSK, BPSK

11g: OFDM

11n: QPSK, BPSK, 16-QAM, 64-QAM

Media access protocol

CAMA/CA with ACK

4G module RF Power

Class 4 (33dBm±2dB) for GSM850

Class 4 (33dBm±2dB) for EGSM900

Class 1 (30dBm±2dB) for DCS1800

Class 1 (30dBm±2dB) for PCS1900

Class E2 (27dBm±3dB) for GSM850 8-PSK

Class E2 (27dBm±3dB) for EGSM900 8-PSK

Class E2 (26dBm±3dB) for DCS1800 8-PSK

Class E2 (26dBm±3dB) for PCS1900 8-PSK

Class 3 (24dBm+1/-3dB) for WCDMA bands

Class 3 (23dBm±2dB) for LTE-FDD bands

LTE Character

Support 3GPP R8 non-CA cat 4 FDD

Support 1.4MHZ-20MHZ RF bandwidth UL support MIMO

LTD-FDD: DL 150Mbps(MAX)/ UL 50Mbps(MAX)

LTE Frequency Bands
EU Version

LTE-FDD: B1/B3/B7/B8/B20/B28A

LTE-TDD: B38/B40/B41

WCDMA: B1/B8

LTE Frequency Bands
US Version

LTE-FDD: B2/B4/B5/B12/B13/B14/B66/B71

WCDMA: B2/B4/B5

Software function

Access mode

Router mode

Basic setting

WAN setting

LAN setting

Mac clone

DNS

2.4G WiFi setting

2.4G guest network setting

2.4G channel setting

2.4G signal strength setting

2.4G channel optimization

Advance setting

Black list setting

Bonding list

WIFI time off

Web blacklist

Modify administrator password

Panel light time off

QoS

Static bonding

Forbidden connection

Restore to default setting

Restart router

Firmware upgrade

More functional

Web management

L2TP client

PPTP client

UPNP

DMZ

Remote web management

Port forwarding

Network fault diagnosis (web)

Working temperature

0°C~40°C

Storage temperature

-20°C ~ 70°C

Working humidity

5%~95% (typical)

Power

12V/1A European Standard
