Model |
DN500 |
|
Type |
ATX 12V V2.31 |
|
Dimension |
150×140×86mm (W x L x H) |
|
Output Capacity |
500W |
|
Input Voltage |
200-240V |
|
Input Current |
4A |
|
Input Frequency Range |
47~63Hz |
|

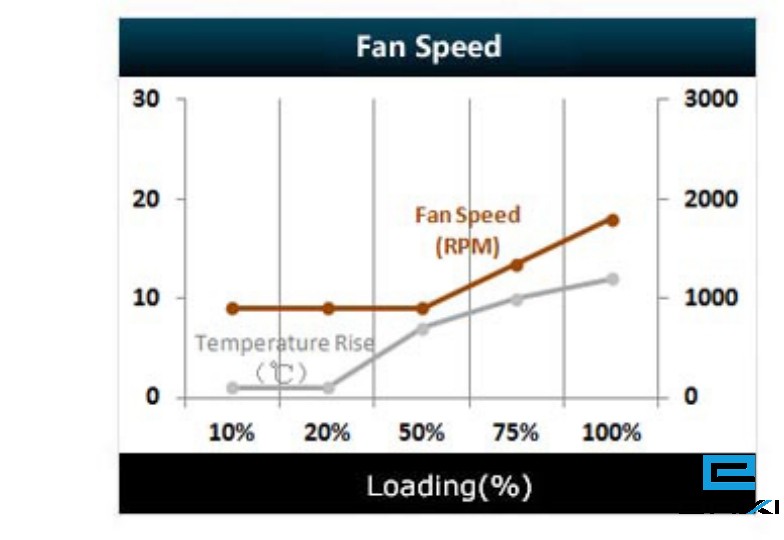

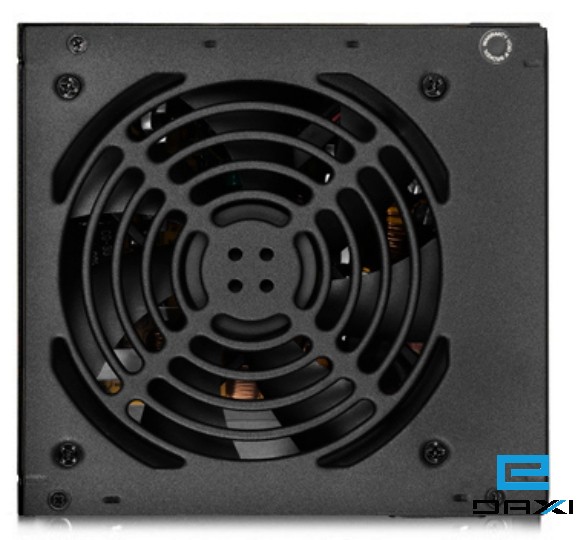

Fan Size |
120mm |
|
PFC |
Active PFC (>0.99) |
|
Power Good Signal |
100-500ms |
|
Hold Up Time |
>16ms |
|

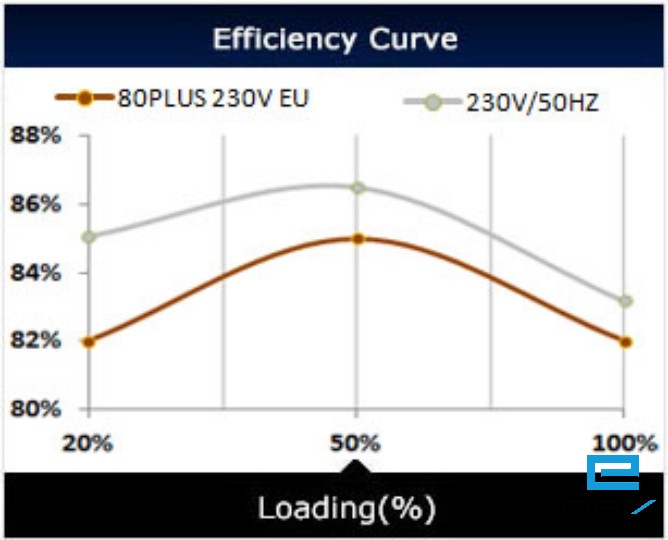

Efficiency |
85% Under Typical Load |
|
Protection |
OVP/UVP/SCP/OPP |
|
Operation Temperature |
0~40°C |
|
Regulatory |
CE/CB/EAC/CCC |
|
MTBF |
100,000 Hours |
