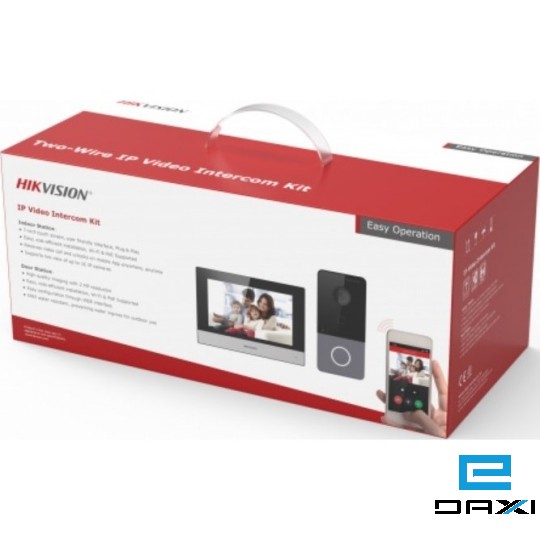

IP Intercom Kit

• Indoor Station：
• User friendly design
• 7-inch colorful touch screen with resolution 1024 × 600
• Standard PoE
• Views live video of door stations and linked cameras
• Villa Door Station：
• Standard PoE
• 2 MP HD Camera
• Noise suppression and echo cancellation
• Low illumination
• Access control functions
• Tamper-proof
• Configuration remotely via Web
• 2.4 GHz Wi-Fi

• Door Station/System Parameters
• Operation SystemEmbedded Linux operation system
• Operation ModeSingle-button
• Flash16 M, 32 M
• RAM256 M

• Door Station/Video Parameters
• Camera2MP HD camera
• Resolution

Main stream: 1920 × 1080p, 720p

Sub stream: 704 × 576

• Night VisionLow illumination IR supplement mode:3 m
• WDRTrue WDR
• Field Of ViewHorizontal: 129° Vertical: 75°
• Video Compression StandardH.264
• Stream

Main stream: 1080p@30fps, 720p@25fps

Sub stream: D1@25fps

• Motion DetectionSupport
• BLCSupport
• DNRSupport
• Anti-Flicker Frequency50 Hz, 60 Hz

• Door Station/Audio Parameters
• Audio InputBuilt-in omnidirectional microphone
• Audio OutputBuilt-in loudspeaker
• Audio QualityNoise suppression and echo cancellation
• Audio Compression StandardG.711 U
• Audio Compression Rate64 Kbps
• Audio IntercomTwo-way audio communication

• Door Station/Network Parameters
• Network ProtocolTCP/IP, RSTP
• Wired Network10/100 Mbps Ethernet

• Door Station/Device Interfaces
• RS-4851
• Alarm Input4
• Debugging Port1
• Grounding1
• TAMPER Switch1

• Door Station/General
• Power Consumption＜ 10 W
• Working Temperature-40° C to +53° C(-40° F to 127.4° F)
• Working Humidity10% to 95%
• Dimension138 mm × 65 mm × 27 mm
• InstallationSurface mounting
• Protection LevelIP65
• Button1
• Indicator2
• Power Supply

IEEE802.3af, standard PoE

12 VDC

• Indoor Station/System Parameters
• Operation SystemEmbedded RTOS operation system
• Memory64 MB
• Flash16 MB

• Indoor Station/Display Parameters
• Display Screen7-inch TFT LCD
• Display Resolution1024 × 600
• Operation MethodCapactive touch

• Indoor Station/Audio Parameters
• Audio InputBuild-in omnidirectonal microphone
• Audio OutputBuilt-in loudspeaker
• Audio QualityNoise suppression and echo cancellation
• Audio Compression StandardG.711U, G.711A
• Audio Compression Rate64 Kbps

• Indoor Station/Network Parameters
• Wired Network10/100 Mbps self-adaptive
• ProtocolTCP/IP, SIP, RTSP

• Indoor Station/Device Interfaces
• Network InterfaceRJ45, standard PoE for power supply
• RS-4851(Reserved)
• Alarm Input8 zones
• Relay Output2(Reserved)
• Power Input2 pins

• Indoor Station/General
• Power Supply12 VDC or standard PoE
• Power Consumption≤ 6 W
• Working Temperature-10 °C to 50 °C (-14 °F to 122 °F)
• Working Humidity0% to 90%
• Dimensions (W × H × D)200 mm × 140 mm × 15.1 mm (7.87" × 5.51" × 0.59")
• InstallationWall mounting
• 683 g (with packaging)

355 g (without packaging)
