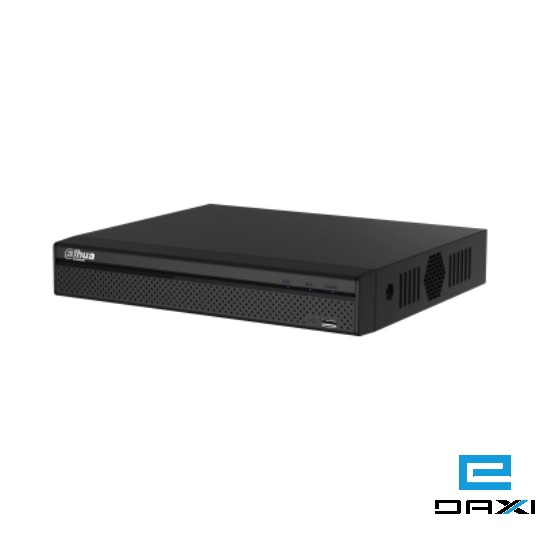

8 Channel Compact 1U 8PoE 4K & H.265 Lite Network Video Recorder
> 8-channel IP video access
> Smart H.265+/Smart H.264+/H.265/H.264; H.265 auto switch
> Max 80 Mbps incoming bandwidth
> Up to 8MP resolution for preview and playback
> 8-channel decoding@1080p (30 fps)
> AI by Camera: Perimeter protection; SMD Plus; people counting; heat map
> Support IPC UPnP, 8PoE ports
System | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor |
Industrial embedded micro-processor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating System |
Embedded Linux | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operation Interface |
Web; local GUI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Perimeter Protection by Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Performance |
8/16 channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI Search |
Search for pictures by channel, time and event type | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD Plus by Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Performance |
8/16 channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI Search |
Search by target classification (human, vehicle) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Access Channel |
8/16 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Bandwidth |
80 Mbps for access, 80 Mbps for storage and 48 Mbps for forwarding | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution |
8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 1.3MP, 720p, D1, and more | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Decoding Capability |
8 channels@1080p (30 fps) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Output |
HDMI: 3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Multi-screen Display |
8-channel: 1/4/8/9 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Third Party Camera Access |
Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon and more | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video |
Smart H.265+; Smart H.264+; H.265; H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio |
PCM; G.711A; G.711U; G.726 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol |
HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (supports Dahua IP camera, DVR, NVS, and more); P2P | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Phone Access |
Android; iOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability |
ONVIF (profile T/S/G); CGI; SDK | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser |
Chrome; IE9 or later; Firefox | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Record Playback | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Multi-channel Playback |
8-channel: 1/4/9 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Record Mode |
Manual; schedule (general; MD; alarm; MD & alarm; intelligent) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Method |
Local HDD and network | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Backup |
USB device | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Playback Function |
1. Play; pause; stop; fast forward; fast backward; rewind; play by frame | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Disk Group |
Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General Alarm |
Motion detection; privacy masking; video loss; PIR alarm; IPC alarm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Anomaly Alarm |
Camera offline; storage error; full storage; IP conflict; MAC conflict; login lock; network security anomaly | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligent Alarm |
Perimeter protection; SMD; people counting; heat map | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Linkage |
Record; snapshot; IPC external alarm output; buzzer; log; preset; email | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
External Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input |
1 channel, RCA connector | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output |
1 channel, RCA connector, which support voice intercom output | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HDD |
1 SATA III port, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB |
1 front USB 2.0 port, 1 rear USB 3.0 port | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HDMI |
1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VGA |
1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
1 independent 100 Mbps ethernet port | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE |
8 ports (IEEE802.3at/af) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General Parameter | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
48V/2A DC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
NVR: < 8.3W (without HDD) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
0.8 kg (1.76 lb) (without HDD) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
1.6 kg (3.53 lb) (without HDD) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
260 mm × 232.5 mm × 47.6 mm (10.2" × 9.15" × 1.9") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Package Dimensions |
331 mm × 312 mm × 87 mm (13.0" × 12.3" × 3.4") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
-10°C to +55°C (+14°F to +131°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature |
0°C to +40°C (+32°F to +104°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
10%–93% (RH) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity |
30%–85% (RH) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Altitude |
3,000 m (9,843 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE: EN55032; EN55024; EN50130-4; EN60950-1 |
