Product code

RBD53iG-5HacD2HnD

Architecture

ARM 32bit

CPU

IPQ-4019

CPU core count

4

CPU nominal frequency

716 MHz

Switch chip model

IPQ-4019

Dimensions

251 x 129 x 39 mm

RouterOS license

4

Operating System

RouterOS

Size of RAM

256 MB

Storage size

128 MB

Storage type

NAND

MTBF

Approximately 200'000 hours at 25C

Tested ambient temperature

-40°C to 70°C

IPsec hardware acceleration

Yes

Suggested price

$109.00

Wireless 2.4 GHz Max data rate

300 Mbit/s

Wireless 2.4 GHz number of chains

2

Wireless 2.4 GHz standards

802.11b/g/n

Antenna gain dBi for 2.4 GHz

3

Wireless 2.4 GHz chip model

IPQ-4019

Wireless 2.4 GHz generation

Wi-Fi 4

Wireless 5 GHz Max data rate

867 Mbit/s

Wireless 5 GHz number of chains

2

Wireless 5 GHz standards

802.11a/n/ac

Antenna gain dBi for 5 GHz

5.5

Wireless 5 GHz chip model

IPQ-4019

Wireless 5 GHz generation

Wi-Fi 5

WiFi speed

AC1200

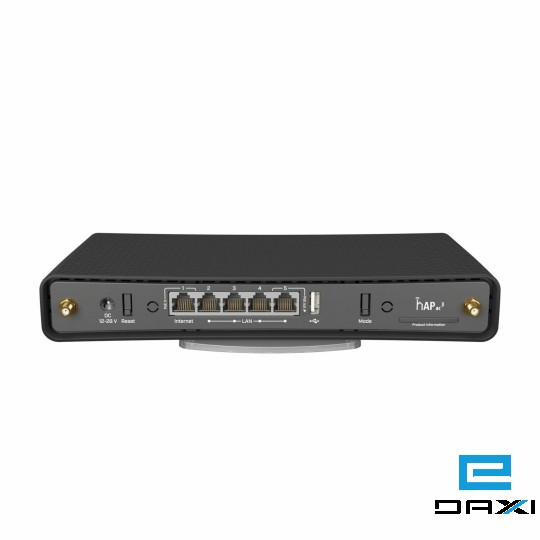

10/100/1000 Ethernet ports

5

Number of 1G Ethernet ports with PoE-out

1

Number of USB ports

1

USB Power Reset

Yes

USB slot type

USB type A

Max USB current (A)

1

Number of DC inputs

2 (DC jack, PoE-IN)

DC jack input Voltage

12-28 V

Max power consumption

30 W

Max power consumption without attachments

12 W

Cooling type

Passive

PoE in

Passive PoE

PoE in input Voltage

18-28 V

PoE-out ports

Ether5

PoE out

Passive PoE

Max out per port output (input 18-30 V)

0.5 A

Max total out (A)

0.5 A

Certification

CE, FCC, IC, EAC, ROHS

IP

IP20

Mode button

Yes

1MBit/s

25

-100

11MBit/s

25

-94

6MBit/s

26

-96

54MBit/s

23

-78

MCS0

26

-96

MCS7

22

-73

6MBit/s

26

-96

54MBit/s

22

-80

MCS0

26

-96

MCS7

21

-75

MCS9

19

-70
